Air Voids Must Sit Within 0.20 Millimeters to Stop Hydraulic Pressure Fracturing Freezing Concrete

A single winter season can strip the smooth finish off a newly poured concrete slab, leaving behind a pitted, crumbling matrix of exposed aggregate. This progressive flaking, known as freeze-thaw spalling, is not a chemical failure but a mechanical one. It occurs when water trapped inside the material expands as it freezes.

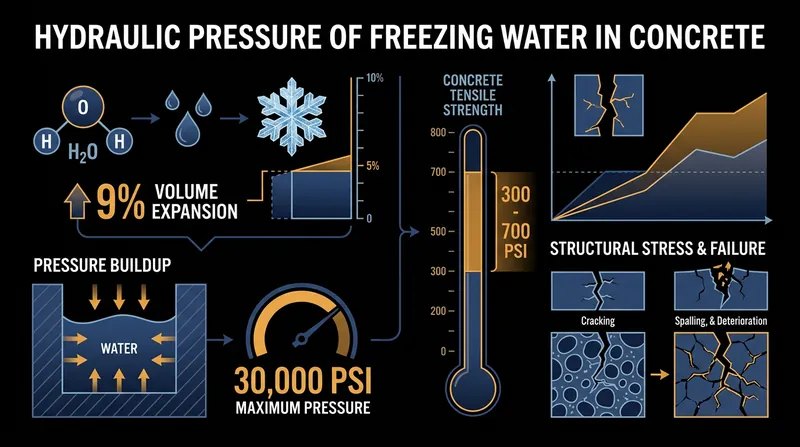

Water expands by approximately 9 percent in volume when it transitions to ice. Inside a confined space, this phase change generates internal hydraulic pressures that can reach 30,000 pounds per square inch (PSI).

That magnitude of force easily overwhelms the material. Standard concrete possesses a tensile strength of just 300 to 700 PSI, meaning the expanding ice exerts a pressure more than 40 times greater than the paste can withstand.

To prevent the concrete from tearing itself apart, engineers rely on a microscopic pressure-relief system called air entrainment. By deliberately introducing billions of tiny air bubbles into the wet mix, they give the expanding ice a safe place to go.[1]

But simply adding air is not enough to guarantee survival. The geometric distribution of those bubbles dictates the material's durability, and the critical metric is the spacing factor. If the distance between any point in the cement paste and the nearest air void exceeds 0.20 millimeters, the concrete will fracture.

The Physics of Capillary Pores

The underlying mechanics of this failure were first formalized in 1949 by researcher T.C. Powers at the Portland Cement Association. "Powers' hydraulic pressure theory explains the mechanism: concrete contains a network of capillary pores ranging from 0.01 to 10 microns in diameter," notes the engineering reference SlabCalc.

These capillary pores are the microscopic tunnels left behind by the water that originally hydrated the cement. Because of their extremely small diameter and the presence of dissolved alkaline salts, the water inside them does not freeze exactly at 32 degrees Fahrenheit.

Instead, the pore water supercools, remaining liquid well below the standard freezing point. When ice finally begins to form in the largest pores, it forces the remaining unfrozen water deeper into the capillary network to make room for the 9 percent volume expansion.

This forced migration creates a severe pressure gradient. The hydraulic pressure generated depends on the viscosity of the freezing water, the permeability of the concrete, and the distance the water must travel to find an empty space.

The concept of critical saturation governs when this pressure becomes destructive. Research demonstrates that concrete can tolerate freezing without damage as long as its pore network is less than 91.7 percent saturated. Below that threshold, the natural empty space accommodates the expansion.

Defining the 0.20 Millimeter Limit

When a concrete slab sits in the rain or melting snow, it easily breaches that 91.7 percent saturation limit. At that point, the artificial air voids must take over the job of relieving the hydraulic pressure.

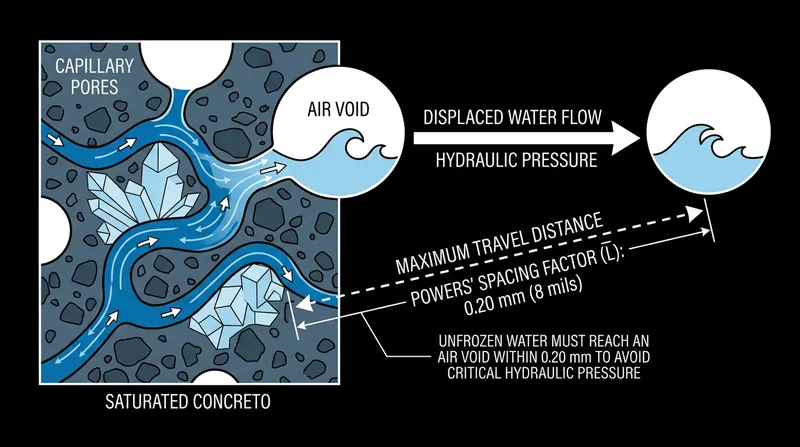

"The spacing factor — the average maximum distance from any point in the paste to the nearest air void — must not exceed 0.008 inches (0.20 mm)," the SlabCalc technical guide states. This precise distance is the absolute physical limit of the material's endurance.

If the unfrozen water has to travel further than 0.20 millimeters to reach a relief void, the friction of moving through the microscopic capillary network causes the hydraulic pressure to spike. At 0.25 millimeters, the pressure reliably exceeds the 700 PSI maximum tensile strength of the paste.[2]

Once the tensile strength is breached, the paste ruptures internally. These microscopic fractures accumulate with every freeze-thaw cycle, eventually linking together to form visible surface scaling and deep spalls that expose the reinforcing steel.

This is why high compressive strength cannot substitute for a proper air-void system. A 6,000 PSI concrete mix might have a slightly higher tensile strength than a 4,000 PSI mix, but neither can resist the 30,000 PSI force of freezing water if the spacing factor is too wide.

Engineering the Bubble Network

Creating a network of voids spaced exactly 0.20 millimeters apart requires chemical intervention. Concrete producers add air-entraining admixtures—typically synthetic surfactants or tall-oil derivatives—to the mix while it is still in its liquid state.[1]

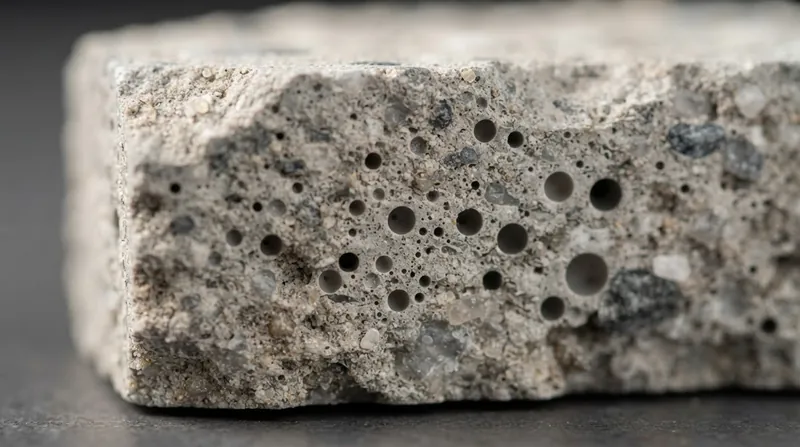

These admixtures reduce the surface tension of the water, allowing billions of microscopic bubbles to form and stabilize during the mixing process. Unlike the large, irregular pockets of entrapped air caused by poor consolidation, entrained air bubbles are perfectly spherical.[1]

The entrained bubbles typically range from 10 to 300 micrometers in diameter. Because they are so small, they can be distributed densely enough to meet the 0.20 millimeter spacing requirement without compromising the structural integrity of the slab.[1]

To achieve this geometry, the total volume of entrained air usually needs to sit between 4 and 7 percent of the concrete's total volume. The exact target depends heavily on the maximum size of the aggregate used in the mix.

However, total air volume is a blunt metric. A mix with 5 percent air composed of a few large bubbles will fail instantly in winter, because the distance between those large bubbles will far exceed the 0.20 millimeter safety threshold.[1]

Verification and Field Challenges

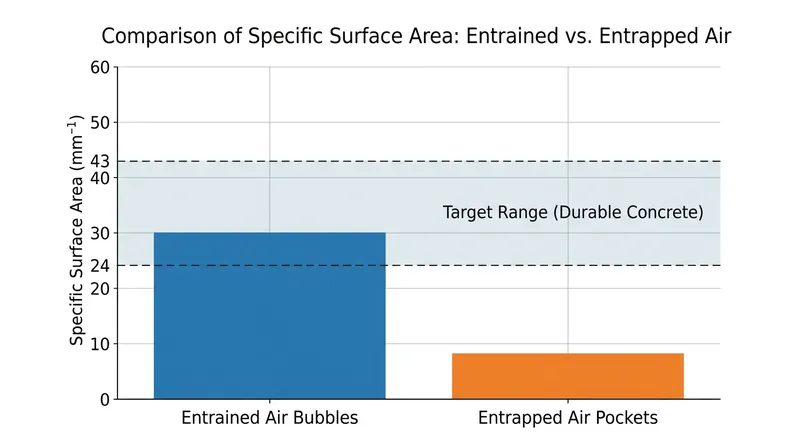

To ensure the bubbles are small enough and close enough together, engineers measure the specific surface area of the voids. A durable mix requires a specific surface area between 24 and 43 inverse millimeters, meaning the bubbles have a massive surface area relative to their volume.

Verifying these microscopic parameters requires laboratory analysis. Under the ASTM C457 standard, technicians cut a core from the hardened concrete, polish it to a mirror finish, and examine it under a microscope using a linear traverse method.

The technician counts every void that intersects a straight line drawn across the sample. By measuring the chord lengths of the intercepted bubbles, they can mathematically reconstruct the three-dimensional spacing factor of the entire matrix.

Field conditions frequently threaten this delicate geometry. Pumping concrete through long hoses under high pressure can compress the air bubbles, dissolving the air back into the water and increasing the spacing factor beyond the 0.20 millimeter limit.[1]

Excessive vibration during placement can also drive the lightest bubbles to the surface, where they pop. This leaves the top quarter-inch of the slab—the exact zone most exposed to freezing water—without its critical pressure-relief system.[1]

The Accelerating Threat of De-Icing Salts

The margin for error shrinks further when de-icing chemicals are applied to the concrete. Salts like calcium chloride and magnesium chloride melt ice on the surface, but they dramatically accelerate spalling within the pore structure.

These chemicals increase the saturation level of the concrete by drawing in more moisture through osmotic pressure. They also alter the freezing point of the pore water, causing the ice to form in sudden, damaging bursts rather than a gradual progression.

When osmotic pressure compounds the standard hydraulic pressure, the 0.20 millimeter spacing factor becomes an absolute minimum requirement for survival. Without it, the surface mortar paste will begin flaking away within a single winter season.

Ultimately, the durability of infrastructure in cold climates relies entirely on this microscopic architecture. A highway bridge's ability to survive decades of blizzards depends on billions of empty spaces, none of them sitting more than a fraction of a millimeter apart.[2]
