How Thermal Desorption Spectroscopy Proves Grain Boundaries Neutralize Hydrogen Embrittlement

The binding constraint for deploying advanced high-strength steel in modern engineering is absolute: the metal must remain free of mobile hydrogen atoms. If diffusible hydrogen infiltrates the crystal lattice, a material designed to withstand massive impacts will shatter under routine stress.[1][2]

That constraint is finally being engineered out of existence. Metallurgists have discovered that they do not need to keep hydrogen out of the steel entirely to maintain its structural integrity. Instead, they can design the metal's internal microstructure to capture the stray atoms and lock them in place permanently.[1]

The breakthrough relies on a precise analytical technique known as thermal desorption spectroscopy. By heating a steel sample and measuring exactly when it releases hydrogen, researchers can map the invisible traps hidden within the metal. This data proves that specific microscopic boundaries act as permanent prisons for the destructive element.[2]

The Mechanics of Embrittlement

Hydrogen embrittlement occurs because hydrogen is the smallest element in the universe. Its tiny atomic radius allows it to slip effortlessly between the iron atoms that make up a steel crystal lattice. Once inside, these highly mobile atoms migrate toward areas of intense mechanical stress.[3]

When enough hydrogen atoms congregate at a stress concentration, such as a microscopic flaw or a sharp corner, they fundamentally alter the metal's atomic bonds. The iron lattice loses its ductility, meaning it can no longer bend or deform to absorb energy. Instead, the steel simply snaps without warning.[1][3]

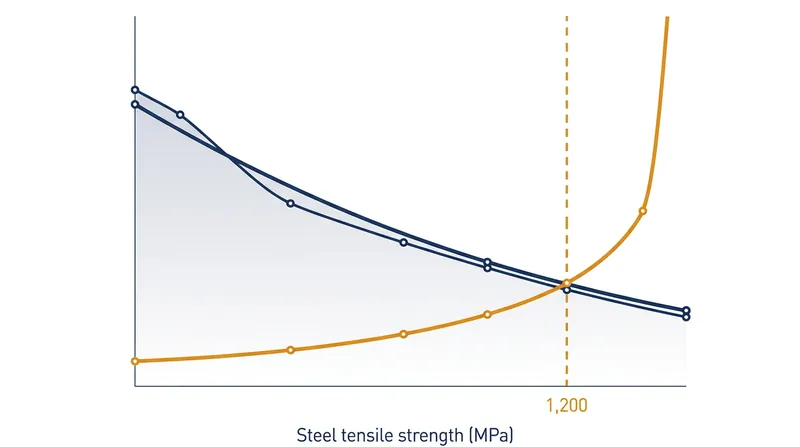

This catastrophic failure mode becomes exponentially more severe as the strength of the steel increases. Alloys with a tensile strength exceeding 1,200 megapascals are notoriously susceptible to this phenomenon. Consequently, engineers have historically been forced to overdesign components using thicker, heavier, lower-strength materials to guarantee safety.[2]

Thermal Desorption Spectroscopy

To solve the embrittlement problem, materials scientists first had to track where the hydrogen was hiding. This is exceptionally difficult because hydrogen atoms are too small to be seen with standard electron microscopy. Thermal desorption spectroscopy provides a workaround by measuring the energy required to evict the hydrogen from the steel.[2]

During a thermal desorption test, a hydrogen-charged steel sample is placed in an ultra-high vacuum chamber. The temperature is then steadily increased at a controlled rate, typically a few degrees per minute. As the metal heats up, the thermal energy forces the trapped hydrogen atoms to break their bonds and escape as a gas.[2]

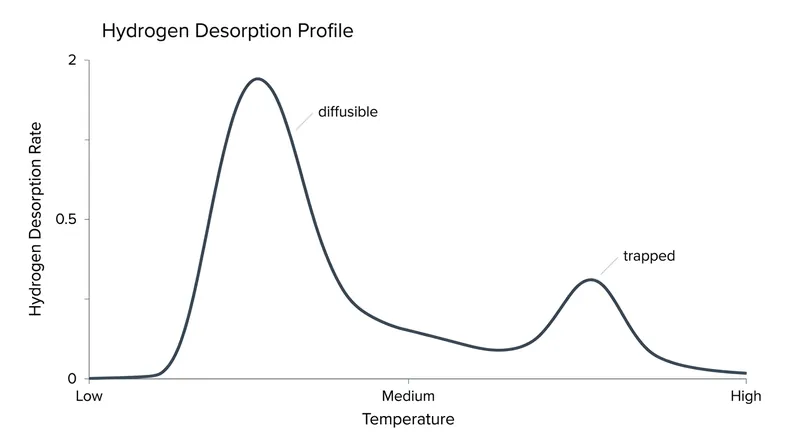

A mass spectrometer detects these escaping atoms, generating a curve that plots the rate of hydrogen release against the rising temperature. This curve is the key to understanding the metal's internal architecture. Different microstructural features hold onto hydrogen with varying degrees of strength, releasing it at distinct thermal thresholds.[2][3]

Decoding the Desorption Peaks

The resulting data typically displays several distinct peaks, each corresponding to a specific type of hydrogen trap. The first peak usually occurs at relatively low temperatures, often below 100 degrees Celsius. This low-temperature release represents the dangerous, diffusible hydrogen that moves freely through the standard iron lattice.[1][2]

The activation energy required to dislodge this mobile hydrogen is remarkably low, generally hovering between 20 and 30 kilojoules per mole. Because it requires so little energy to move, this is the hydrogen that migrates to stress points and causes sudden, catastrophic fractures in the field.[1]

However, thermal desorption spectroscopy also reveals secondary peaks at much higher temperatures, often approaching 300 degrees Celsius. These high-temperature peaks indicate the presence of deep traps. Hydrogen locked in these sites requires a massive energy input—typically 55 to 65 kilojoules per mole—to break free.[1][2]

Grain Boundaries as Sinks

The critical revelation from recent thermal desorption studies is the exact physical nature of these deep traps. While engineers have long known that adding expensive elements like vanadium or titanium creates safe harbor precipitates, the spectroscopy data proves that the steel's own grain boundaries can perform the exact same function.[1]

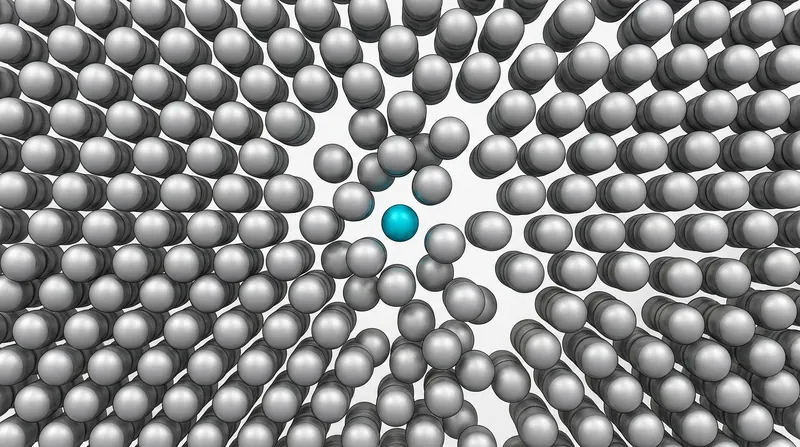

Steel is not a single, continuous crystal; it is composed of millions of microscopic crystalline grains pressed together. The interfaces where these grains meet are known as grain boundaries. High-angle grain boundaries, where the crystal lattices are severely mismatched, create significant atomic free space.[1][3]

Thermal desorption confirms that these high-angle boundaries act as highly effective hydrogen sinks. When a mobile hydrogen atom wanders into one of these disordered regions, it falls into a deep energetic well. At ambient operating temperatures, the atom lacks the thermal energy required to climb back out.[1]

By sequestering the hydrogen at these benign interfaces, the grain boundaries prevent the atoms from congregating at critical stress points. The hydrogen remains inside the steel, but it is effectively neutralized. The metal retains its full ductility and impact resistance, even in hydrogen-rich environments.[1][3]

Engineering the Microstructure

This understanding fundamentally shifts how metallurgists design advanced high-strength steels. Rather than focusing solely on chemical composition, researchers are now optimizing the thermomechanical processing of the steel to maximize the density of high-angle grain boundaries.[3]

Techniques such as severe plastic deformation and rapid quenching are used to refine the grain size. Smaller grains mean an exponentially larger total surface area of grain boundaries throughout the material. This creates a vast network of deep traps, vastly increasing the steel's total hydrogen capacity.[1][3]

Thermal desorption spectroscopy serves as the ultimate quality control tool in this optimization process. Writing in Acta Materialia, researchers note that "thermal desorption allows us to quantify the exact saturation limit of these high-angle boundaries, turning a theoretical defense into an engineered metric."[1]

This approach is particularly crucial for the automotive industry, which relies heavily on advanced high-strength steels to reduce vehicle weight and improve fuel efficiency. A lighter chassis requires thinner steel, which in turn demands higher tensile strength and a flawless defense against embrittlement.[2][3]

The Future of High-Strength Alloys

The implications extend far beyond automotive manufacturing. The transition to a hydrogen-based energy economy requires vast networks of pipelines, storage tanks, and compressor stations. All of these components must be constructed from materials that can withstand constant exposure to pressurized hydrogen gas.[3]

Historically, hydrogen infrastructure has relied on lower-strength steels to avoid embrittlement, resulting in massive, expensive, and inefficient structures. By engineering grain boundaries to act as permanent traps, materials scientists can finally deploy ultra-strong alloys in these critical energy applications.[3]

The data provided by thermal desorption spectroscopy is the foundational evidence making this shift possible. It transforms hydrogen embrittlement from an unpredictable, catastrophic threat into a quantifiable variable that can be managed through precise microstructural control.[2][4]

The economic impact of this microstructural engineering is substantial. Traditional methods of mitigating hydrogen embrittlement often rely on alloying the steel with expensive noble metals or applying complex, costly surface coatings. Utilizing the inherent grain structure of the steel itself offers a vastly cheaper solution.[1][4]

Furthermore, the precision of thermal desorption spectroscopy allows for targeted safety margins. Instead of over-engineering components based on worst-case theoretical models, designers can use empirical desorption data to calculate the exact hydrogen saturation point for a specific structural part.[2][3]

As analytical techniques continue to improve, researchers are now combining thermal desorption with advanced atom probe tomography. This dual approach not only measures the energy of the traps but provides a three-dimensional visual map of the hydrogen atoms locked within the grain boundaries.[1][2]

This level of atomic transparency ensures that the next generation of advanced high-strength steels will be fundamentally immune to hydrogen degradation. The binding constraint has been broken, clearing the path for lighter, stronger, and more resilient infrastructure across the globe.[3][4]
