How Grain Refinement Evades Metallurgy's Universal Strength-Toughness Trade-Off

When structural engineers specify steel for a deep-water oil rig or an arctic pipeline, they face a brutal choice. They can mandate a harder alloy to support massive physical loads, or they can specify a tougher one that will not shatter in sub-zero temperatures.[1]

Every time a metallurgist writes a recipe for a new component, they are forced to navigate this universal trade-off. Adding carbon, cold-rolling the metal, or introducing precipitates all successfully increase the material's yield strength.

But those exact same interventions exact a heavy toll on the material's resilience. As the steel becomes stronger, its ductile-to-brittle transition temperature climbs higher, meaning it will snap rather than bend at increasingly warm temperatures.[2]

There is exactly one physical mechanism in classical metallurgy that evades this penalty entirely. By shrinking the microscopic crystalline grains that make up the metal, engineers can simultaneously multiply its strength and drive its brittle transition temperature down into the deep freeze.[1]

This phenomenon, known as grain refinement, represents the closest thing materials science has to a free lunch. It allows modern infrastructure to survive environments that would have fractured the steel used just a few decades ago.

The Mechanics of Deformation

To understand why grain refinement breaks the rules, we first have to understand how metals actually bend. At the microscopic level, a piece of steel is not a single continuous solid, but a tightly packed mosaic of individual crystals called grains.[2]

Within each of these grains, the atoms are arranged in a perfectly repeating three-dimensional grid. When a massive force is applied to the metal, it does not stretch all at once; instead, entire planes of atoms slide past one another.[4]

This sliding motion is facilitated by microscopic defects in the crystal lattice known as dislocations. You can think of a dislocation like a wrinkle in a rug: it is much easier to push the wrinkle across the floor than to drag the entire heavy rug at once.[2]

When millions of these dislocations move through the atomic grid, the metal permanently deforms, or yields. If the dislocations can move freely, the metal is ductile and will bend safely under stress.

If the dislocations are blocked and cannot move, the applied force has nowhere to go but into ripping the atomic bonds apart. When that happens, the metal fails catastrophically and shatters like glass, a phenomenon known as brittle fracture.[3]

The Traditional Trade-Off

Traditional strengthening methods work by intentionally throwing obstacles in the path of these moving dislocations. When engineers cold-work a metal, they are deliberately tangling the dislocations into a dense, impassable web.

When they add alloying elements like carbon or silicon, they are wedging foreign atoms into the lattice to create physical speed bumps. These obstacles successfully increase the yield strength, meaning the metal can bear more weight before it begins to permanently bend.[1]

However, this strategy inherently compromises the metal's toughness. Because the dislocations are now heavily restricted, the material struggles to absorb sudden impact energy, especially as temperatures drop and atomic vibration slows down.[3]

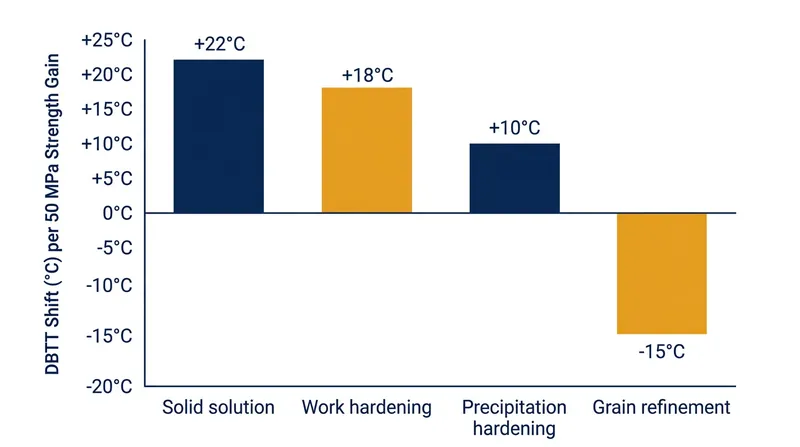

The American Society for Metals explicitly warns engineers about this penalty. "For every 50 megapascals of strength gained through solid solution alloying with silicon, the transition temperature rises by approximately 22 degrees Celsius," the ASM Handbook states.

This inverse relationship governed industrial engineering for over a century. It is the reason the steel hull of the RMS Titanic, which was packed with impurities that restricted dislocation movement, shattered upon impact with the iceberg in freezing waters.[1]

The Hall-Petch Breakthrough

Grain refinement attacks the problem from a completely different geometric angle. Instead of cluttering the inside of the crystal with obstacles, metallurgists shrink the overall size of the crystals themselves.[2]

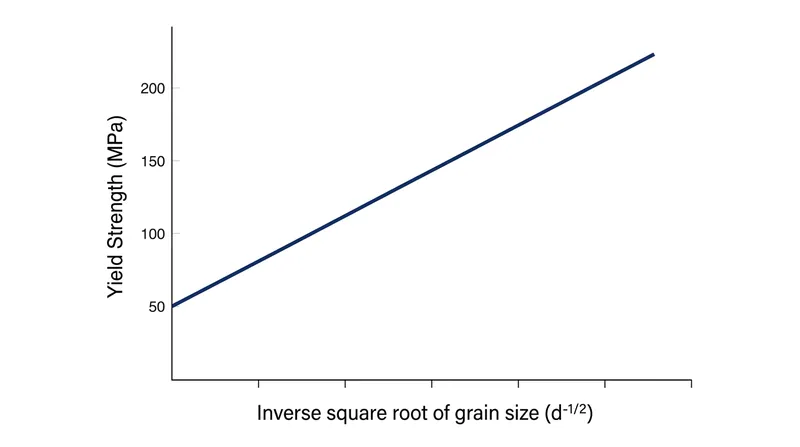

In the early 1950s, researchers E.O. Hall and Norman Petch independently discovered that a metal's yield strength increases as the inverse square root of its grain diameter. This mathematical rule, now known as the Hall-Petch relationship, revolutionized modern metallurgy.[2]

When grains are made smaller, the total surface area of the boundaries between them increases massively. These grain boundaries act as impenetrable walls for moving dislocations, causing them to pile up like cars in a traffic jam.[4]

Because the dislocations cannot easily cross from one grain into the next, the metal resists deformation and exhibits a dramatically higher yield strength. A steel with a grain size of 10 micrometers is substantially stronger than one with a 100-micrometer grain size.

But unlike internal obstacles, these grain boundaries do not make the metal more brittle. In fact, they actively suppress the onset of brittle fracture, lowering the temperature at which the metal will shatter.[1]

Arresting the Cracks

The secret to this dual benefit lies in how microscopic cracks propagate through a material. For a brittle fracture to occur, a tiny micro-crack must tear straight through the atomic lattice, splitting the crystal apart.

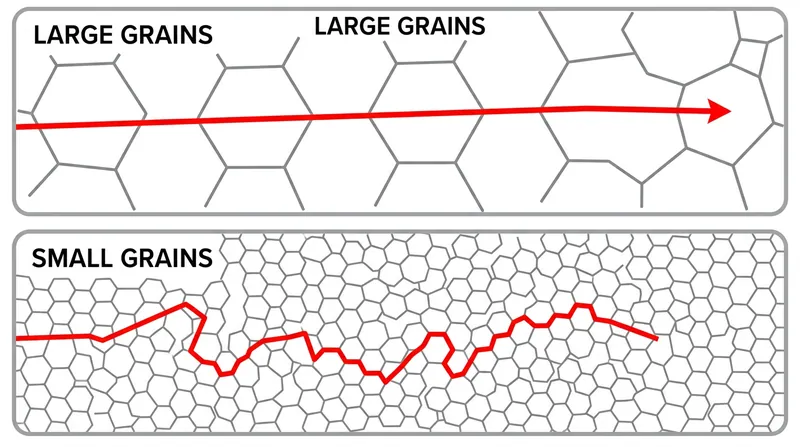

When a propagating crack hits a grain boundary, it is forced to change direction to align with the atomic planes of the neighboring crystal. This sudden shift in trajectory consumes a massive amount of kinetic energy, slowing the crack down.[4]

In a metal with large grains, a crack can travel a long distance uninterrupted, building up enough momentum to slice through the entire component. The failure is sudden, violent, and complete.[3]

In an ultrafine-grained metal, the crack is forced to zig-zag millions of times, hitting a new boundary every few micrometers. This constant redirection drains the fracture energy so rapidly that the crack simply arrests and stops growing.

Research published in ScienceDirect confirms this unique mechanical advantage. "Grain refinement is the sole conventional mechanism that simultaneously enhances yield stress and lowers the ductile-to-brittle transition temperature," the authors note.[2]

Engineering the Microstructure

Achieving this refined microstructure requires precise control over how the metal is heated and cooled. Modern steel mills use a process called thermo-mechanical controlled processing to manipulate the grain size during manufacturing.

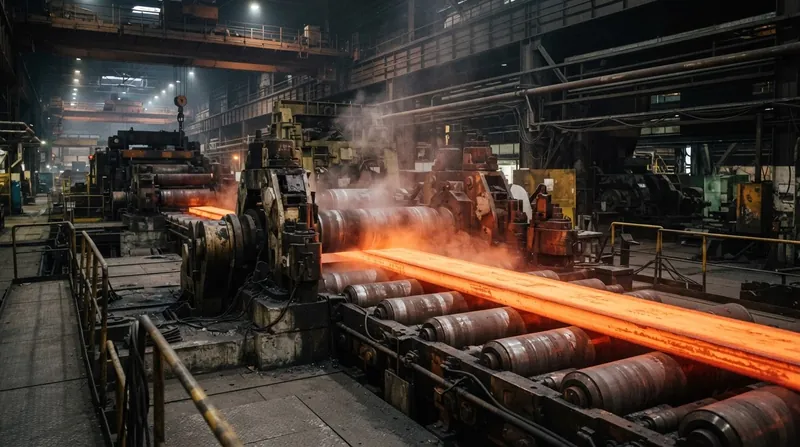

By carefully rolling the hot steel while simultaneously blasting it with high-pressure water jets, metallurgists force new, microscopic grains to nucleate rapidly before they have time to grow large.

This rapid quenching locks in an ultrafine grain structure. The resulting high-strength, low-alloy steels are the backbone of modern infrastructure, offering unprecedented safety margins in extreme environments.[1]

Today, these refined alloys are mandated for critical applications where failure is not an option. From the pressurized hulls of deep-sea submersibles to the structural girders of skyscrapers in seismic zones, grain boundary engineering keeps the metal intact.

The ability to simultaneously increase strength and toughness remains one of the most elegant solutions in materials science. By simply changing the scale of the internal architecture, engineers bypassed a physical limitation that once seemed absolute.[1]

As researchers continue to push the boundaries of nanotechnology, they are discovering ways to refine grains down to the nanometer scale. These next-generation materials promise to deliver structural components that are lighter, stronger, and virtually immune to cold-weather shattering.
