Stator Core Magnetic Saturation Caps Alternator Output Regardless of Rotor RPM

For an automotive alternator to convert mechanical rotation into electrical power, a fundamental condition must hold: the iron core surrounding its copper coils must be able to absorb and carry a fluctuating magnetic field. If the iron cannot accept more magnetic flux, the conversion process stops. In every modern vehicle, that physical limit is reached daily.[5]

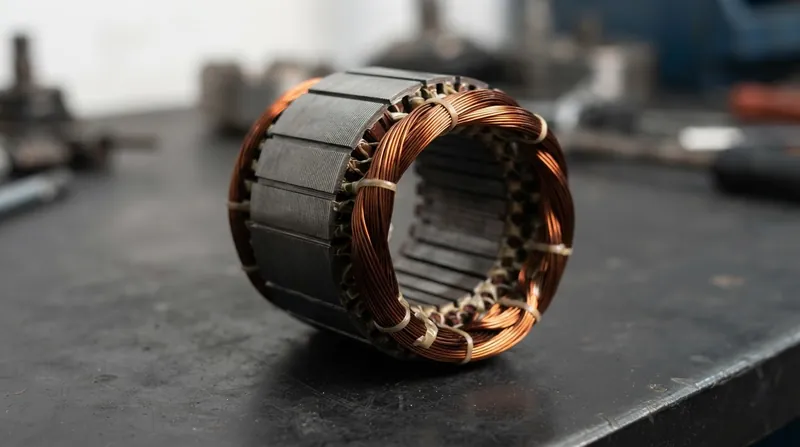

The stator core, typically stamped from silicon electrical steel, acts as a conduit for the magnetic field generated by the spinning rotor. As the engine spins the rotor faster, Faraday’s law of induction suggests the alternator should produce proportionally more current. A rotor spinning at 6,000 revolutions per minute (RPM) sweeps its magnetic poles past the stator coils twice as fast as it does at 3,000 RPM.[2]

If the system scaled linearly, an alternator rated for 120 amps at cruising speed would easily output 240 amps at highway passing speeds. But it does not. The output curve flatlines abruptly, capping the current regardless of how aggressively the engine drives the pulley. This hard ceiling is not dictated by a computer chip or a voltage regulator, but by the atomic structure of the iron itself.[1]

To understand this constraint, one must look at the architecture of the standard automotive generator. Since the widespread adoption of silicon diode rectifiers in the 1960s, most passenger vehicles have used a Lundell, or claw-pole, alternator design. This configuration features a solid iron rotor wrapped in a single field coil, surrounded by interlocking iron fingers that create alternating north and south magnetic poles.[2]

As this claw-pole rotor spins inside the stationary stator ring, it drags its magnetic field through the stator's iron teeth. The changing magnetic flux induces an alternating current in the copper windings wrapped around those teeth. The entire mechanism relies entirely on the stator iron's ability to seamlessly channel that magnetic flux from the rotor to the coils.[2]

The RPM Scaling Illusion

Automotive electrical systems are designed around a pulley ratio that spins the alternator significantly faster than the engine crankshaft. Passenger car alternators routinely reach 8,000 RPM, often spinning at a 2-to-1 or 3-to-1 ratio relative to the engine. At these velocities, the rate of magnetic flux change is immense.[2]

Theoretically, this rapid flux change is capable of inducing massive electrical currents in the stator windings. Drivers often assume that if their battery is dead, simply revving the engine to the redline will force the alternator to pump maximum power into the electrical system. They expect the output to climb endlessly with the tachometer.[5]

However, the assumption that higher RPM guarantees higher output ignores the physical reality of ferromagnetic materials. The stator core is not an infinite reservoir for magnetic fields. It operates more like a rigid pipe carrying water; once the pipe is completely full, increasing the pressure at the source cannot force more volume through the fixed diameter.[1]

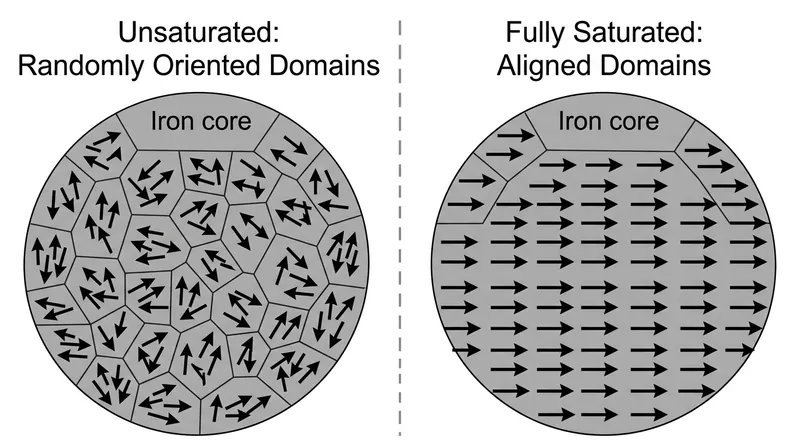

When the alternator approaches its maximum rated output, the magnetic field strength inside the stator core reaches a critical threshold. The magnetic domains within the silicon steel—microscopic regions where atomic magnetic moments align—become fully oriented in the direction of the applied field.[1]

Once every domain is aligned, the iron cannot carry any additional magnetic flux. The material has reached its absolute physical capacity to amplify the magnetic field. At this exact moment, the alternator transitions from a linear power generator into a physically capped system, immune to further mechanical input.[1]

The Tesla Saturation Limit

This phenomenon is known as magnetic saturation. Pure iron possesses a theoretical maximum saturation magnetization of 2.15 Tesla, representing the absolute limit of magnetic flux density that the element can support. Beyond this point, the material behaves no differently than empty space when subjected to a stronger magnetic field.[3]

"Magnetic saturation is the high-field region in which a ferromagnetic or ferrimagnetic material produces little additional magnetization as the applied magnetic field increases," according to engineering documentation from Electrical4U. The magnetic amplification factor of the iron effectively drops to zero for any additional input.[4]

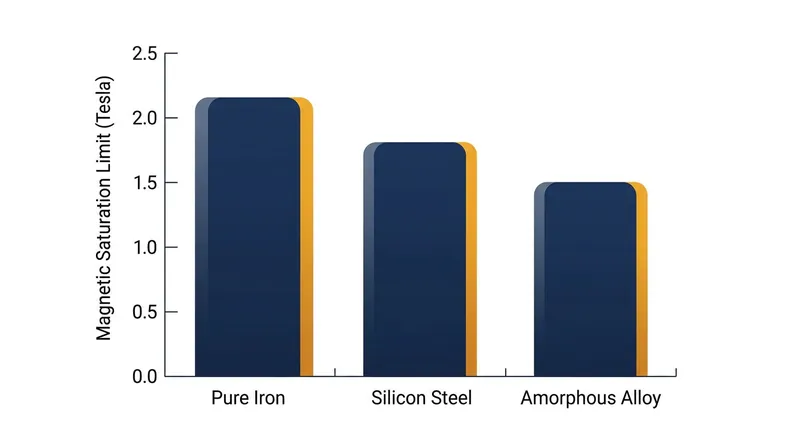

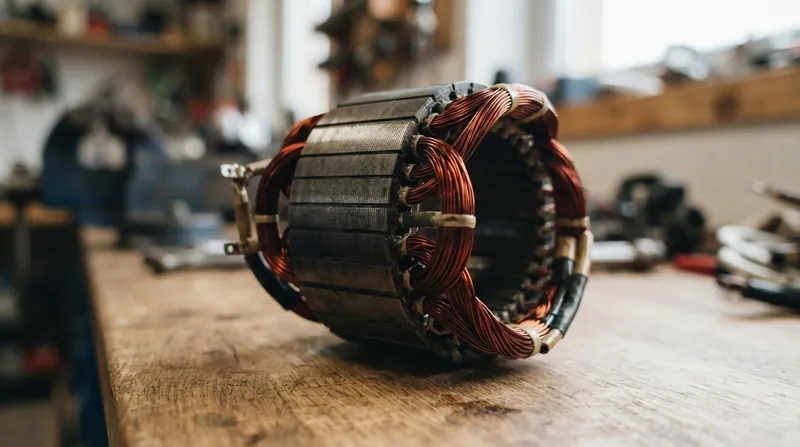

However, pure iron is highly conductive and prone to severe eddy current losses, making it unsuitable for high-speed alternators. To prevent the core from melting under its own induced currents, manufacturers alloy the iron with approximately 3 percent silicon. This addition increases electrical resistance but slightly degrades the magnetic capacity.[3]

Consequently, the silicon steel used in automotive stators typically saturates between 1.5 and 2.0 Tesla. Once the magnetic flux density hits this ceiling, the core is fully saturated. Pumping more field current into the rotor, or spinning the rotor faster to increase the rate of flux change, produces negligible increases in flux density.[1]

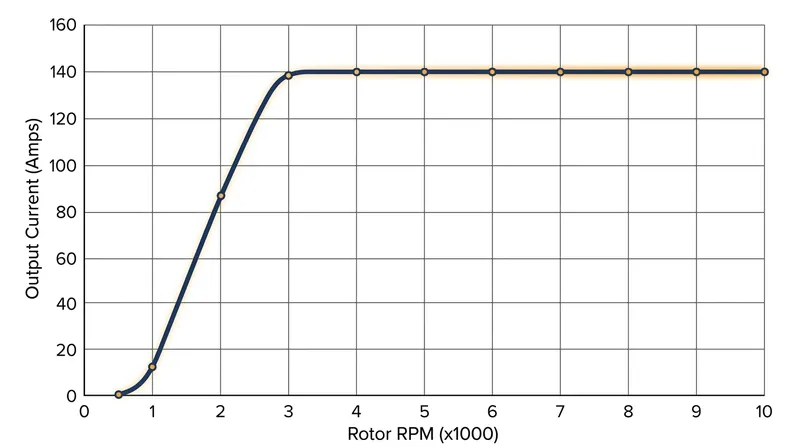

Because the induced voltage and subsequent output current in the stator coils depend entirely on the changing magnetic flux passing through them, a saturated core means the output current cannot rise. A 140-amp alternator will stall at exactly 140 amps, even if the rotor accelerates to 10,000 RPM. The saturated iron core physically prevents the system from delivering more power.[5]

The Heat Penalty of Overspeeding

When the engine continues to drive a saturated alternator at higher speeds, the excess mechanical energy must go somewhere. Because it can no longer be converted into useful electrical current, it is dissipated entirely as waste heat. This thermal penalty is a severe constraint on automotive electrical design.[5]

The losses manifest in two primary forms within the saturated core: hysteresis and eddy currents. Hysteresis loss occurs because the magnetic domains resist being constantly flipped back and forth by the spinning rotor, a magnetic friction first mathematically modeled by Charles Steinmetz in 1892. As the RPM increases, this friction generates intense heat within the silicon steel.[3]

Simultaneously, eddy currents—parasitic electrical loops induced directly within the iron core rather than the copper wire—scale with the square of the frequency. Pushing a saturated alternator to 8,000 RPM drastically multiplies these losses. The core bakes, transferring extreme heat to the surrounding copper coils and the internal electronics.[2]

This thermal runaway is why automotive alternators feature internal cooling fans mounted directly behind the pulley. The fan must work aggressively to pull ambient air through the housing to prevent the internal diodes from failing. If the saturation heat exceeds the cooling capacity, the rectifier bridge will quickly melt.[2]

Furthermore, as the temperature of the stator core rises, its magnetic permeability actually decreases. Heat increases the random thermal motion of the iron atoms, making it harder for the magnetic domains to stay aligned. This means a hot alternator reaches magnetic saturation earlier, causing its maximum output current to drop as the engine bay heats up.[1]

Natural Overload Protection

While magnetic saturation represents a strict ceiling on efficiency, it also serves as a vital, fail-safe regulatory mechanism. The physical limits of the silicon steel act as an unbreakable mechanical fuse, providing inherent protection against catastrophic electrical failures in the vehicle's charging system.[5]

If the iron core could scale infinitely without saturating, a sudden drop in battery resistance or a massive electrical short circuit would force the alternator to generate hundreds of amps. This runaway current would instantly incinerate the stator windings, melt the rectifier bridge, and potentially start an engine fire.[5]

Instead, when the electrical demand attempts to pull more current than the alternator is rated for, the core simply saturates and refuses to deliver it. The voltage drops, but the alternator survives the overload because the iron physically cannot process the requested power.[5]

This self-limiting behavior is why a vehicle can safely jump-start another car with a completely dead battery. The dead battery acts as a massive electrical sink, demanding far more current than the alternator can produce. Magnetic saturation caps the output, protecting the donor vehicle's charging system from destroying itself during the transfer.[5]

The Weight and Cost Trade-Off

The obvious engineering countermeasure to magnetic saturation is to simply use more iron. A larger stator core with a thicker cross-section would provide a wider conduit for the magnetic flux. This lowers the flux density below the 2.0 Tesla limit, allowing the alternator to generate more current before saturating.[1]

However, automotive design is strictly bound by weight, space, and cost constraints. Adding mass to the alternator contradicts the industry's relentless push for lighter, more fuel-efficient vehicles. A massive, heavy-duty alternator requires stronger mounting brackets, a wider drive belt, and robs more parasitic horsepower from the engine.[5]

High-grade electrical steels that offer slightly higher saturation thresholds without excessive heat generation are also expensive. Upgrading from standard non-oriented silicon steel to advanced amorphous metal alloys could push the saturation limit higher, but the material costs would be prohibitive for standard passenger vehicles.[3]

Engineers must also balance the pole count of the rotor. Increasing the number of magnetic poles reduces the inductance of the stator winding, which can increase the short-circuit current limit. Unfortunately, more poles mean higher electrical frequencies at the same RPM, which exponentially increases the magnetic core losses and the resulting heat.[2]

Modern Engineering Workarounds

To extract more power without increasing the physical size of the saturated core, engineers have turned to advanced winding techniques and active field control. By moving from traditional diode rectifiers to active synchronous rectification using metal-oxide-semiconductor field-effect transistors (MOSFETs), modern alternators can reduce internal voltage drops and extract slightly more usable power.[5]

Additionally, engine control units now actively manage the rotor's field current. Rather than allowing the alternator to slam into hard magnetic saturation at high RPMs, the computer intentionally weakens the field current as engine speed rises. This field-weakening strategy maintains the required output while keeping the core just below its thermal and magnetic breaking point.[5]

Advanced designs, such as the water-cooled alternators found in luxury vehicles, attempt to mitigate the heat penalty of saturation by plumbing engine coolant directly through the alternator housing. This allows the unit to run closer to its saturation limit for longer durations without melting the internal electronics.[5]

The maximum electrical output of any vehicle remains permanently tethered to the atomic properties of its alternator's iron core. No amount of software tuning, pulley swapping, or RPM increases can force silicon steel to carry more magnetic flux than its physical saturation limit allows. The iron always has the final say.[5]
