Why Hydraulic Jumps Below a 1.7 Froude Number Fail to Dissipate Spillway Energy

The standard assumption in civil engineering is that forcing fast-moving water to collide with a deeper, slower pool will safely destroy its momentum. Designers rely on this collision, known as a hydraulic jump, to protect riverbeds from the catastrophic force of dam spillways. But the math contains a blind spot.[1][7]

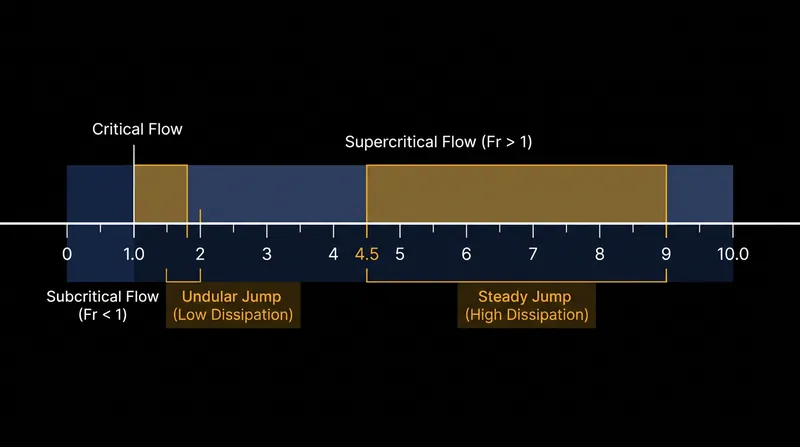

If the incoming water lacks a sufficient velocity ratio, the violent, energy-dissipating crash never materializes. Instead, the flow simply bends into a series of smooth, rolling swells called an undular jump. This occurs specifically when the Froude number falls below 1.7.[1][3]

These undular waves look harmless, but they are structurally dangerous. Because they fail to break and churn, they preserve nearly all of the water's kinetic energy, carrying it directly past the concrete protections and into the vulnerable riverbed below.[6][10]

"The undular jump is characterized by a series of standing waves and a lack of a turbulent roller," notes the American Society of Civil Engineers in their 1995 experimental apparatus review. That missing roller is the exact mechanism engineers need to tear the water's energy apart.[3]

The physics of the Froude threshold

To understand why the jump fails, you have to measure the ratio of inertial forces to gravitational forces. Fluid dynamicists capture this relationship in a single metric called the Froude number, which dictates how water behaves in an open channel.[7][10]

When water flows at a Froude number exactly equal to 1.0, it sits at a critical threshold where its speed perfectly matches the speed of a wave traveling through it. Anything above 1.0 is supercritical flow, which is shallow, fast, and highly energetic.[7]

Dam spillways routinely discharge water at Froude numbers between 4.0 and 9.0. When this hyper-fast water hits the slow, subcritical tailwater at the base of the dam, it violently decelerates, creating a massive, churning hydraulic jump that dissipates up to 70 percent of its energy.[1][6]

But low-head dams, irrigation weirs, and navigation locks operate under different conditions. The elevation drop is minor, meaning the water accelerates only slightly, often entering the lower basin with a Froude number between 1.0 and 1.7.[8][9]

At this specific, narrow velocity band, the water has enough momentum to push past the critical threshold, but not enough to trigger a turbulent collapse. The surface simply ripples into a stationary train of waves that gradually diminish downstream.[3][9]

Why smooth waves destroy infrastructure

The primary job of a stilling basin is to convert kinetic energy into heat and noise through sheer turbulence. A well-designed basin relies on a violent surface roller to trap the fast water and force it to mix with the slow water.[1][2]

Undular jumps bypass this mixing process entirely. Because the waves do not break, the high-velocity jet of water simply dives under the surface and glides along the concrete floor with almost zero friction.[4][8]

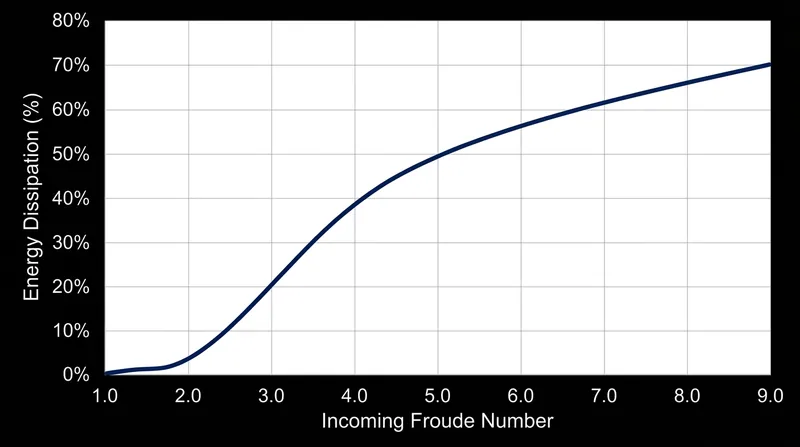

Experimental flume assessments published by the U.S. Geological Survey demonstrate the severity of this bypass. While a standard jump at a Froude number of 4.5 destroys over 45 percent of the flow's energy, an undular jump at 1.5 dissipates less than 5 percent.[6]

That 95 percent of surviving kinetic energy has to go somewhere. It exits the concrete stilling basin at high speed, slamming directly into the unprotected natural riverbed and initiating a destructive process called scour.[1][10]

Scour acts like a liquid excavator, digging a massive plunge pool just beyond the dam's concrete apron. If left unchecked, this erosion slowly marches backward toward the structure, eventually undermining the foundation and triggering a total collapse.[1][2]

Designing around the undular trap

Because undular jumps are so ineffective at killing velocity, modern dam safety guidelines explicitly warn against relying on them. The ASDSO Dam Safety Toolbox classifies Froude numbers between 1.0 and 1.7 as a zone requiring specialized mitigation.[1]

The most direct solution is to avoid the 1.7 threshold entirely. Engineers can alter the slope of the spillway or constrict the discharge channel, artificially accelerating the water to force the Froude number above 2.5 before it hits the basin.[1][2]

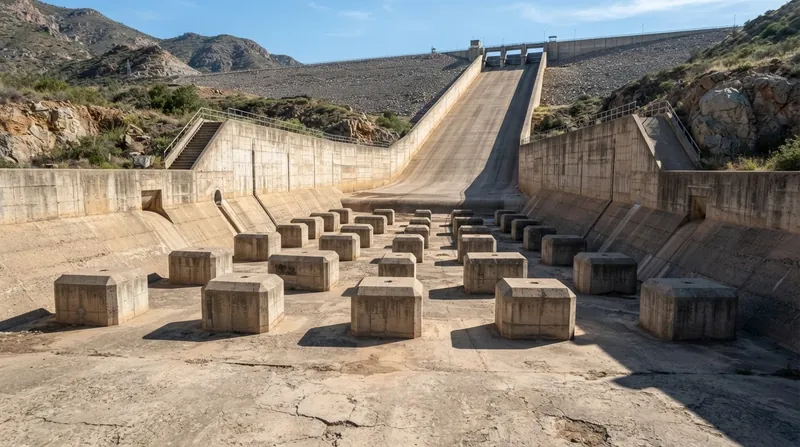

When altering the geometry is impossible, designers must physically break the waves. They install massive concrete teeth, known as baffle blocks, directly into the floor of the stilling basin to force the water to crash.[2][10]

"Energy dissipators must be designed to force the hydraulic jump to occur within the basin," the National Technical Reports Library manual on stilling basins mandates. Baffle blocks provide the necessary friction to trigger that jump prematurely.[2]

However, baffle blocks introduce their own engineering risks. If the water velocity is too high, the low-pressure zones behind the concrete teeth can cause the water to boil at room temperature, a destructive phenomenon known as cavitation.[1][10]

Modeling the invisible currents

Predicting exactly where an undular jump will form requires complex mathematics. Standard one-dimensional flow equations fail to capture the vertical acceleration inside the standing waves, making basic models dangerously inaccurate.[4][7]

To solve this, researchers rely on depth-averaged models and Boussinesq equations. These advanced calculations, detailed in a 2014 Taylor & Francis fluid mechanics review, account for the curvature of the water's surface as it rolls through the jump.[4]

Physical flume experiments remain the gold standard for verifying these models. By pumping water through glass-walled channels at precise Reynolds numbers, scientists can inject dye to map the high-velocity jets hiding beneath the smooth surface.[3][5]

These laboratory tests reveal that the undular waves are not perfectly uniform. The flow actually separates near the channel walls, creating lateral shockwaves that crisscross the basin and concentrate the destructive force in unpredictable locations.[8][9]

This uneven energy distribution explains why some low-head dams suffer asymmetrical erosion. The standing waves focus the surviving kinetic energy onto specific patches of the riverbed, digging deep, localized scour holes rather than a uniform trench.[1][10]

Managing spillway discharge requires respecting the strict mathematical boundaries of fluid dynamics. Until the Froude number clears the 1.7 threshold, the water will refuse to break, and the infrastructure must be armored to absorb the impact.[1][10]

The limits of scale models

Scaling these laboratory results up to full-sized dams introduces further complications. The AIP Publishing analysis of turbulent open channel flow notes that large Reynolds numbers in real-world rivers behave differently than small-scale flume water.[5]

In a massive spillway, the sheer volume of water entrains millions of tiny air bubbles, a process called aeration. This entrained air actually cushions the flow, slightly altering the Froude number threshold where undular waves begin to break.[5][10]

Consequently, civil engineers must apply a safety factor to their stilling basin designs. They extend the concrete aprons further downstream than the pure mathematical models suggest, ensuring the riverbed remains protected even if an undular jump unexpectedly forms during a low-flow event.[1][2]
