How Pseudorange and Trilateration Separate the GPS Receiver's Clock Error from the Satellite's Position

Marketing materials for smartphones and fitness trackers frequently claim their devices use "GPS triangulation" to pinpoint your location by measuring the distance to three satellites. The evidence contradicts both the geometry and the hardware.

A standard smartphone's quartz clock drifts by up to 10 microseconds per second; if uncorrected, that drift would introduce hundreds of kilometers of positional error almost instantly. Instead of triangulation, the system relies on trilateration, and instead of three satellites, it requires a minimum of four to separate the receiver's massive clock error from the true distance.[2][6]

The fundamental equation of satellite navigation is straightforward: distance equals the speed of light multiplied by travel time. A Global Navigation Satellite System (GNSS) satellite, orbiting at approximately 20,200 kilometers above the Earth, broadcasts its exact orbital position and the precise time the signal left its antenna, stamped by an onboard atomic clock. The receiver on the ground notes when that signal arrived. By multiplying the travel time by 299,792,458 meters per second, the receiver calculates how far away the satellite is.[1]

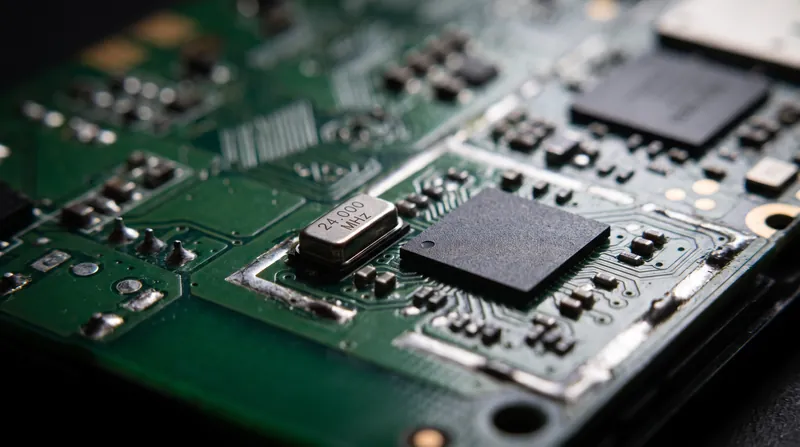

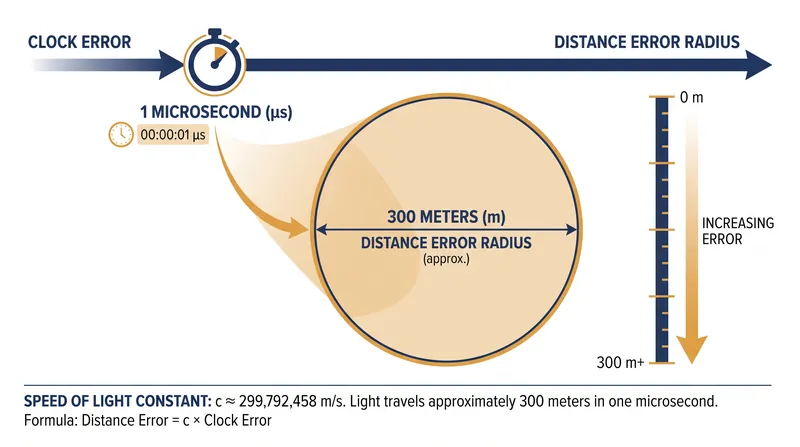

The problem lies entirely inside the receiver. While the satellites carry atomic-clock-class timing hardware, consumer devices rely on cheap quartz oscillators. As the University of Nevada, Reno notes, the calculated distance "includes clock errors because the receiver clocks are far from perfect." A one-microsecond offset in the receiver's clock translates to roughly 300 meters of error in the calculated distance.[3]

This contaminated distance measurement is called a "pseudorange." As Wikipedia's technical documentation describes it, the measurement suffers from "contamination with unknown receiver clock offset." It is not the true geometric range; it is the true range plus the receiver's unknown clock bias. Because every measurement taken by the receiver at that exact instant is infected by the identical clock error, the geometry becomes a four-unknown problem: latitude, longitude, altitude, and the clock bias itself.[4]

If a receiver only used three satellites, the intersecting spheres of those pseudoranges would place the user somewhere in space or moving at impossible speeds. The spheres are artificially inflated or shrunk by the clock bias, meaning they do not intersect at the user's actual physical location.[5]

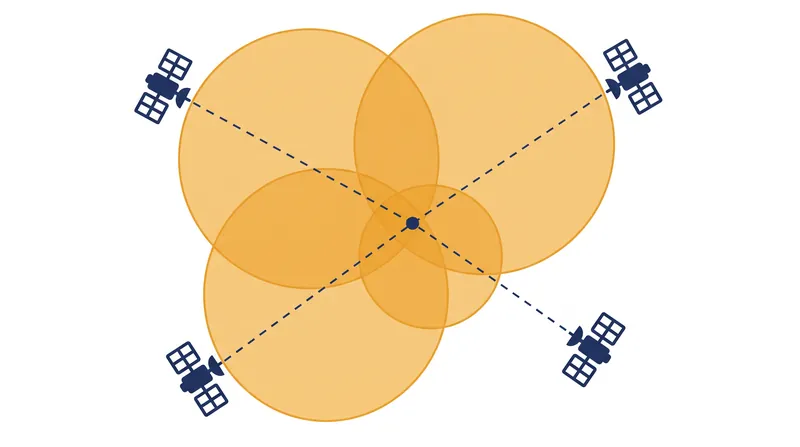

The mathematical trick that makes GNSS work without a $100,000 atomic clock in every phone is the addition of the fourth satellite. When the US Department of Defense launched the first operational GPS satellite in 1978, the architecture relied on this exact solution. By adding a fourth pseudorange, the system gains a fourth equation. The receiver solves the four-variable algebra problem simultaneously, forcing the four spheres to intersect at a single point.[2][4]

The distinction between triangulation and trilateration is not merely semantic. Triangulation uses angles to find a position, a method familiar to anyone who has used a compass and a map. Satellite navigation, however, is fundamentally a ranging system. It measures distances, not angles, making trilateration the correct geometric model.[5]

In solving the four-variable equation, the receiver calculates its exact physical location and simultaneously corrects its own clock to atomic precision. This is why every GPS fix is fundamentally a time-transfer operation. The location data is almost a byproduct of synchronizing the cheap receiver clock with the billion-dollar satellite constellation.[1][6]

While other errors exist—such as ionospheric delay, tropospheric refraction, and multipath reflections in urban canyons—the clock bias is the foundational hurdle. Without the fourth satellite separating the clock error from the pseudorange, satellite navigation as a consumer technology would be physically impossible.[1]

The elegance of the GNSS architecture lies in its deliberate asymmetry. The system places the expensive, highly accurate atomic clocks in orbit and pushes the complex algebraic corrections down to the cheap, mass-produced receivers on the ground.

By accepting that the receiver's clock will always be wrong, and treating that error as just another variable to be solved, the system makes global satellite navigation accessible to anyone with a smartphone. The next frontier in consumer positioning is not building better clocks for phones, but using dual-frequency receivers to strip away the remaining atmospheric delays that the four-satellite equation cannot solve.[1][6]
