How the Aspect Ratio of a Time-Series Line Chart Dictates the Perception of Volatility and Trend

One faction of data visualization practitioners argues that a line chart's dimensions should be dictated entirely by the physical constraints of the medium—stretching the x-axis to fill a widescreen monitor or compressing it to fit a mobile column. The opposing faction insists that the aspect ratio is a strict mathematical parameter as critical as the y-axis scale, arguing that arbitrary stretching distorts the rate of change and fundamentally misleads the viewer about the data's volatility.

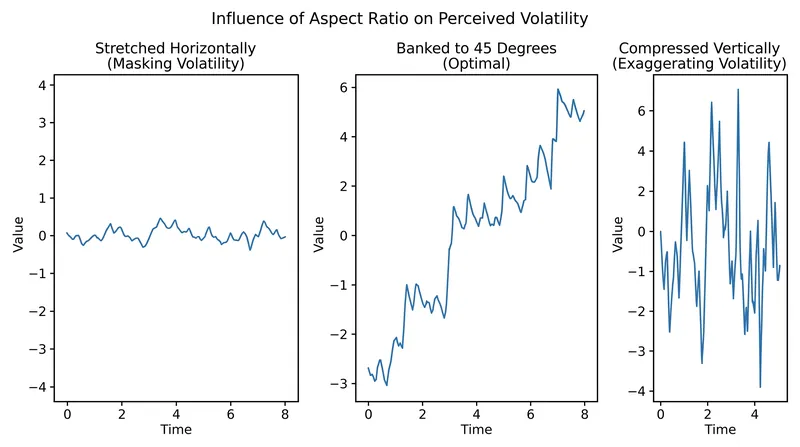

The mechanism driving this tension is geometric. The aspect ratio—the height of the chart divided by its width—directly dictates the physical slope of the line segments drawn on the page. A 5% drop in a metric looks like a minor, gradual blip on a wide chart, but transforms into a catastrophic, vertical cliff on a tall one. The underlying data is identical, but the visual severity is entirely manufactured by the bounding box.[4]

The foundational attempt to resolve this geometric distortion was published by statistician William S. Cleveland in 1988, introducing a principle known as "banking to 45 degrees." Cleveland posited that the human visual system is most sensitive to changes in slope when the angles of the line segments are near 45 degrees, allowing the eye to accurately judge the relative rates of change across the entire time series.[3]

To achieve this optimal geometry, Cleveland developed an algorithm based on the median absolute slope of the data segments. As Rick Wicklin, a distinguished researcher at the SAS Institute, wrote in 2016, "Banking to 45 degrees is a technique that chooses the aspect ratio of a line chart so that the absolute values of the slopes of the line segments are centered on 45 degrees." This mathematical anchoring removes the arbitrary influence of the screen size.

By centering the slopes, the technique maximizes the viewer's ability to discern small variations in the trend. If a chart is too flat, all slopes approach zero degrees, masking volatility; if it is too tall, all slopes approach 90 degrees, masking the broader trend. Sanjay Matange of SAS noted in 2011 that finding this exact middle ground is what allows analysts to "bank" on the visual accuracy of the graph.[6]

However, Cleveland's median absolute slope method struggles with multi-scale data—time series that exhibit both high-frequency local volatility and low-frequency global trends, such as daily stock prices over a decade. In 2006, researchers Jeffrey Heer and Maneesh Agrawala published a paper in the IEEE Transactions on Visualization and Computer Graphics challenging the single-ratio approach.[1]

Heer and Agrawala demonstrated that a single aspect ratio cannot simultaneously optimize the perception of both local and global trends. They introduced a multi-scale banking technique that parameterizes the data in the frequency domain, extracting different trend scales and generating multiple aspect ratios for the same dataset, depending on which frequency the analyst wishes to highlight.[1]

This multi-scale approach revealed a critical vulnerability in automated chart generation: the "correct" aspect ratio depends entirely on which frequency of the data the viewer is supposed to perceive. Optimizing for the 45-degree angle on a macro trend mathematically flattens the micro volatility, and optimizing for the daily noise obscures the decade-long trajectory.[1]

The mathematical consensus fractured further in 2018 when Martin Fink and colleagues published a subsequent IEEE paper titled, "Is There a Robust Technique for Selecting Aspect Ratios in Line Charts?" The researchers evaluated the existing algorithms and found them highly sensitive to minor perturbations in the data, meaning a single outlier could drastically alter the entire shape of the chart.[2]

Fink's team proposed a new robust technique that minimizes the arc length of the curve while maintaining the area under it, rather than relying strictly on the median slope. Their algorithm produced aspect ratios that were significantly different from Cleveland's original method, highlighting that "banking to 45 degrees" is not a single mathematical truth but a family of competing heuristics.[2]

The divergence in these algorithms creates a practical problem for statistical software. While packages like SAS include built-in functions to automatically bank charts to 45 degrees, the specific algorithm chosen by the software developer dictates the final visual output. Two analysts using different software on the identical dataset will produce charts with different physical dimensions.[6]

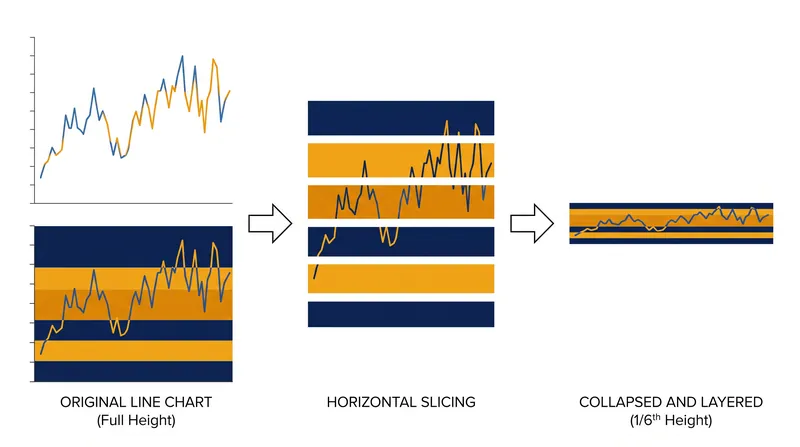

To bypass the aspect ratio problem entirely, some researchers advocate for alternative visualization methods. In 2009, Heer, Kong, and Agrawala presented research at the ACM CHI Conference on "horizon charts," which layer filled bands of data to compress the vertical space without losing resolution.[5]

The horizon chart study found that layering the data allowed for a massive reduction in chart height—up to a sixth of the standard size—while maintaining the viewer's estimation accuracy. By folding the data over itself, the technique effectively decouples the perception of volatility from the overall aspect ratio of the bounding box.[5]

Despite these advancements, the evidence regarding human perception remains thin in one crucial area: how non-expert viewers interpret aspect-ratio-optimized charts in the wild. The mathematical optimization of a slope to exactly 45 degrees does not guarantee that a layperson will correctly interpret the underlying rate of change, especially when the resulting chart looks unusually squashed or stretched compared to standard web layouts.[4]

The reliance on default settings in modern business intelligence tools means that the vast majority of time-series charts are never banked to any specific degree. Instead, they are stretched to fit the responsive design of a web dashboard, leaving the perception of the data's volatility entirely to the geometry of the user's screen.
