How Conditional Edges Route Decisions in Multi-Agent AI Workflows

The defining moment in a multi-agent artificial intelligence system does not happen when a language model generates text, but when a router function evaluates the shared state to determine which agent acts next. This evaluation step—the conditional edge—is what separates a rigid, linear pipeline from an autonomous system capable of correcting its own errors. By moving the decision of 'what to do next' out of the language model's internal prompt and into the overarching graph structure itself, developers can build systems that reliably branch, loop, and recover from failures. In a landscape where AI agents are increasingly tasked with executing complex, multi-step workflows across enterprise databases and external APIs, the mechanism that controls the flow of data is the ultimate arbiter of reliability.

To understand why this matters, one must look at how early AI agents were built. Early frameworks relied on a single language model trapped in a continuous loop, prompted to both execute tasks and decide its own next steps. When one node handles all cases, it becomes harder to read, test, and improve. A bug in a billing response path can silently break a technical support path, and the entire system becomes a black box of unpredictable behavior. As noted in a July 2026 analysis by Swarms, 'Most non-trivial multi-agent systems are a graph: some steps run in sequence, some fan out in parallel, and their outputs converge at a join.' If an agent pipeline is simply one giant prompt loop, the architecture bleeds compute resources and becomes impossible to debug.[2]

Modern orchestration frameworks, such as LangGraph and Swarms, solve this by modeling the multi-agent workflow as a state graph. In this architecture, the system is a directed graph where nodes represent individual agents or functions, and a shared state object flows between them. The state acts as the system's memory, carrying the accumulated context, tool outputs, and intermediate reasoning from one node to the next. Because the graph is treated as a first-class object, developers can checkpoint it, resume it, and inspect exactly where execution paused. That level of auditability is why engineering teams increasingly reach for state-driven orchestration in regulated enterprise settings, moving away from purely stochastic agent loops.[2][3]

The connections between these nodes are defined by edges. A normal edge dictates that one node must always follow another—for example, an agent must always pass its output to a formatting tool. But real-world applications rarely work in straight lines. They require dynamic topology, where the system can spawn nodes, insert branches, and reconnect paths at runtime based on the data it encounters. A purely deterministic workflow, where every step is known at build time and the path never changes, is insufficient for autonomous agents that must react to unpredictable API responses or ambiguous human inputs. The system needs a mechanism to make decisions mid-flight.[4][5]

This is where the conditional edge operates. A conditional edge does not connect two nodes directly. Instead, it dictates that after a node finishes execution, a dedicated router function must read the current state and return a string naming the next node to call. It acts as a fork in the road, allowing the graph to choose different paths based on the context. As Outcome School explained in July 2026, 'A conditional edge is an edge that picks the next node based on the current state. In simple words, a conditional edge is like a fork on a road.' The router function evaluates the state and dynamically directs the workflow to the appropriate specialist agent.[3]

For example, if a user submits a query, a classification node might process it first. The conditional edge then checks the state: if the query is technical, it routes the state to a technical support agent; if it is billing-related, it routes to a billing agent. The routing logic is entirely removed from the individual agents, keeping each node focused on a single responsibility. This prevents the system from relying on a single, monolithic prompt to handle every edge case, and allows developers to add new specialist nodes simply by updating the router function's destination map. The graph carries the routing intelligence, not the language model.[3]

This separation of concerns also enables cyclic reasoning. Unlike strictly directed acyclic graphs (DAGs) that only move forward, conditional edges allow a system to loop back on itself. If a reviewing agent determines that a drafted document is incomplete, the conditional edge can route the state back to the drafting agent for revisions, creating a continuous loop of refinement until a quality threshold is met. This iterative capability is essential for building agent-like behaviors where language models need to be called in loops to verify their own outputs before presenting a final result to the user.[3][4]

However, this architectural flexibility introduces a measurable computational cost. While static pipeline edges process quickly, conditional routing requires additional compute cycles to evaluate the state and determine the path. According to a January 2026 benchmark by Guild AI, hierarchical routing decisions can add between 300 and 600 milliseconds of latency per edge, compared to just 50 to 150 milliseconds for a standard pipeline transition. When an agent workflow requires dozens of micro-decisions to complete a single user request, this routing overhead compounds, forcing engineering teams to balance the need for dynamic adaptability against strict latency budgets.[7]

In complex workflows, such as a fan-out/fan-in pattern where a research node delegates tasks to a summarizer and a critic running in parallel, this latency and complexity compound further. Frameworks must manage concurrent writes to the shared state, often requiring explicit reducer functions to prevent data collisions when multiple agents return results simultaneously. If two parallel branches attempt to append data to the same state key without a reducer, the graph will throw an invalid update error, halting the entire pipeline. Managing these concurrent states is the primary engineering challenge in modern multi-agent orchestration.[2]

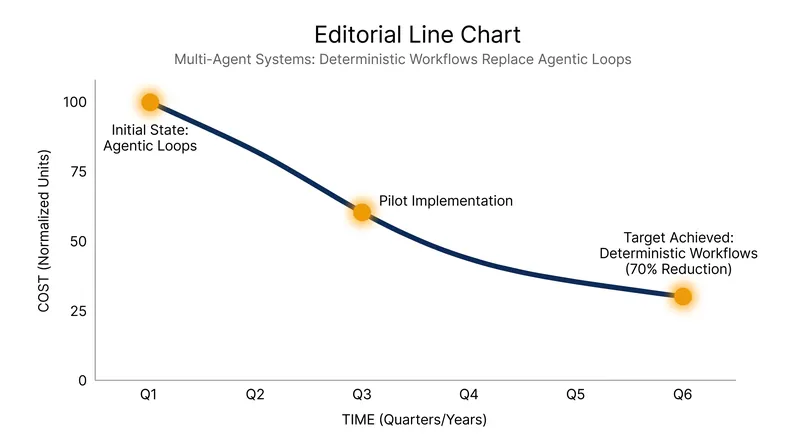

Despite the latency penalty, the reliability gains of explicit routing are substantial. By making the routing explicit and auditable, developers can checkpoint the graph, pause execution for human approval, and inspect exactly where a failure occurred. A July 2026 paper published on arXiv demonstrated that replacing stochastic agent loops with deterministic workflows and explicit routing dropped per-incident agent costs by more than 70 percent while doubling incident volume. Ultimately, conditional edges prove that in multi-agent systems, structured control and observable state transitions are just as critical as the raw intelligence of the underlying language models.[1]
