The Physics of TRISO Fuel: How Microscopic Silicon Carbide Spheres Prevent Nuclear Meltdowns

Inside the core of the Advanced Test Reactor at the Idaho National Laboratory, technicians monitored a graphite compact containing thousands of poppy-seed-sized spheres holding steady at 1,800 degrees Celsius. At this temperature, the zirconium alloy cladding used in conventional light-water reactors would have long since oxidized and failed, releasing radioactive isotopes into the primary coolant loop. Yet the spheres inside the test chamber remained entirely intact, their internal pressures contained by microscopic shells of ceramic. This qualification test demonstrated the fundamental mechanical premise of tristructural isotropic, or TRISO, fuel: shifting the primary containment boundary of a nuclear reactor from a massive steel and concrete structure down to the fuel particle itself.[1][2]

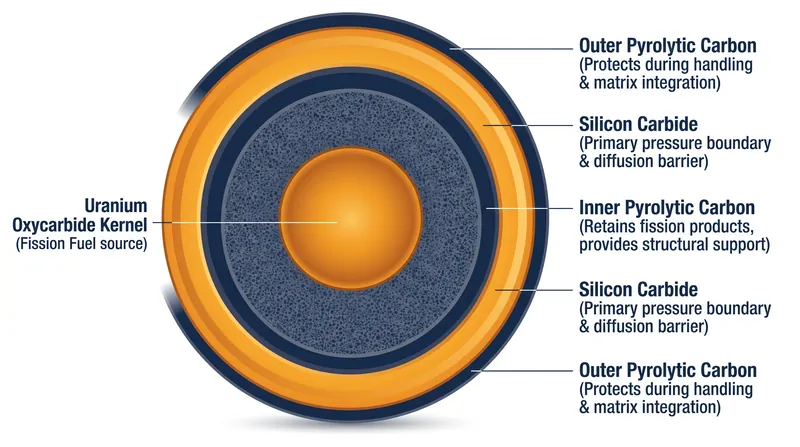

The anatomy of a TRISO particle begins at its center, with a fuel kernel typically measuring just 0.5 millimeters across. This kernel is composed of uranium oxycarbide, a mixture that prevents the migration of oxygen during the fission process. Because the particle itself takes up space that would otherwise hold uranium, the fuel inside must be enriched to a higher level than the 5 percent used in conventional reactors. TRISO kernels typically utilize High-Assay Low-Enriched Uranium (HALEU), enriched to just under the 20 percent regulatory limit for commercial use, to maintain the necessary neutron economy.[1][3]

Surrounding this kernel is the first of four distinct protective layers: a porous carbon buffer. When a uranium atom splits, it releases kinetic energy and creates fission products, including xenon and krypton gases. In a conventional reactor, these gases build up inside a long metal tube. In a TRISO particle, the porous carbon buffer acts as a microscopic sponge. It absorbs the physical recoil of the fission fragments and provides empty void volume for the gases to expand into, preventing the internal pressure from fracturing the outer layers.[1][4]

The second layer is a dense coating of inner pyrolytic carbon. This layer seals the porous buffer, preventing the fission gases from escaping further outward. It also serves a crucial manufacturing purpose: during the chemical vapor deposition process used to apply the subsequent layers, the inner pyrolytic carbon protects the uranium kernel from reacting with chlorine gas, ensuring the chemical stability of the fuel before it ever enters a reactor.[1][3]

The third layer is the defining structural component of the TRISO architecture: a shell of silicon carbide. Silicon carbide is a highly advanced ceramic that acts as a microscopic pressure vessel. It is engineered to retain its structural integrity and contain all radioactive fission products at temperatures up to 1,800 degrees Celsius. The Department of Energy officially designates TRISO as "the most robust nuclear fuel on earth," a classification based entirely on the thermal tolerance of this specific ceramic layer.[1]

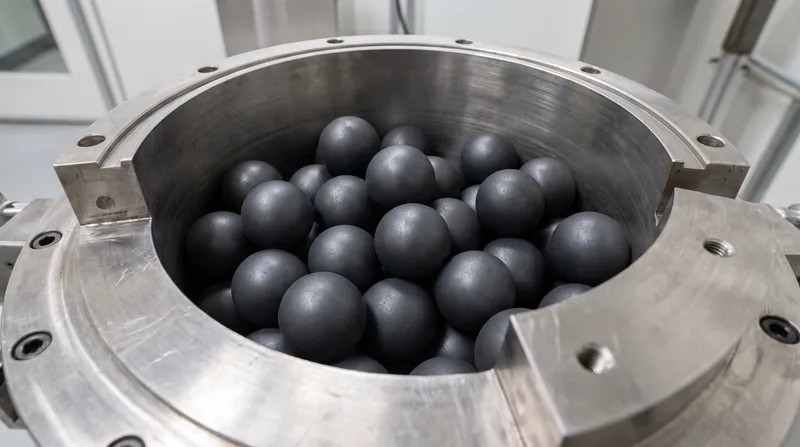

The final layer is an outer coating of pyrolytic carbon. This outer shell protects the brittle silicon carbide from mechanical damage during handling and reactor operation. More importantly, it provides a chemically compatible surface that allows thousands of these individual TRISO particles to be bonded together into a larger graphite matrix, either in the shape of a billiard-ball-sized sphere for a pebble-bed reactor, or a hexagonal prism for a block-type reactor.[1][4]

The engineering divergence between TRISO and conventional light-water reactor (LWR) fuel dictates entirely different safety paradigms. An LWR relies on active cooling systems—pumps, valves, and backup generators—to keep its Zircaloy fuel cladding below its roughly 1,200-degree Celsius failure point. If the cooling water boils away, the cladding melts. TRISO fuel, by contrast, relies on passive physics. The materials themselves simply do not melt at the temperatures a reactor can physically reach.[4]

This thermal margin enables the concept of the "walkaway safe" reactor. In the event of a total loss of coolant and a complete failure of all active safety systems, the reactor core will heat up due to the decay of radioactive isotopes. However, the physical geometry of the reactor and the thermal conductivity of the graphite matrix ensure that the heat dissipates into the surrounding earth or air faster than it can accumulate. The core temperature peaks well below the 1,800-degree Celsius limit of the silicon carbide layer, meaning a meltdown is physically impossible.[1][3]

This inherent safety profile is what allows advanced reactor developers to design smaller, modular facilities. Without the need for massive, redundant cooling systems and heavy containment domes, high-temperature gas reactors (HTGRs) fueled by TRISO can be sited closer to industrial centers. These reactors operate at much higher temperatures than water-cooled designs, allowing them to provide zero-carbon process heat for chemical manufacturing, hydrogen production, and desalination.[2][3]

The architecture does impose strict physical and economic trade-offs. Because each uranium kernel is surrounded by multiple layers of carbon and ceramic, the overall heavy metal density of a TRISO-fueled core is significantly lower than that of a conventional reactor. To achieve the same total power output, an HTGR requires a physically larger reactor vessel to hold the necessary volume of fuel, increasing the upfront capital cost of the containment structure.[4]

The back-end of the fuel cycle presents another systemic challenge. While TRISO particles are exceptionally good at containing waste, they also generate a massive volume of irradiated graphite per megawatt-hour of electricity produced. Furthermore, the very silicon carbide layer that makes the fuel so robust inside the reactor makes it chemically difficult to reprocess afterward, complicating efforts to recycle the unburned uranium.[3]

The transition from qualification testing to commercial deployment represents the final hurdle for the technology. The physics of the silicon carbide containment boundary are settled, and the thermal margins have been proven in test reactors. The next verifiable checkpoint for the industry will be the licensing and operation of the first commercial microreactors, which will determine whether the complex, multi-layered manufacturing process can be scaled economically to match the physical elegance of the design.[2]
