The σ ∝ 1/√c Relationship: Why the Strength of Brittle Materials Is a Function of Flaw Size, Not Atomic Bonds

If you calculate the force required to pull apart a one-inch square rod of ordinary window glass by simultaneously breaking every silicon-oxygen bond in its cross-section, the math yields a theoretical tensile strength of roughly 14,000 megapascals (MPa)—enough to suspend 1,400 metric tons from that single rod. Yet, in the physical world, that same glass rod will shatter under a load of just 70 MPa. The material is 200 times weaker than its atomic chemistry dictates. This discrepancy is not an engineering error; it is a fundamental law of fracture mechanics governed by the σ ∝ 1/√c relationship.[3]

The central argument of modern materials science is that bulk strength is an illusion. We design structures assuming materials behave as continuous, uniform masses, but the reality is that the strength of any brittle material is entirely dictated by its worst microscopic defect. British aeronautical engineer Alan Arnold Griffith proved in 1920 that failure is not a democratic process of bonds yielding together, but a localized catastrophic event triggered by a single flaw. As the ASME researchers note, "the design of brittle structures must be based on the probability of a critical flaw existing in the high-stress volume."[4][5]

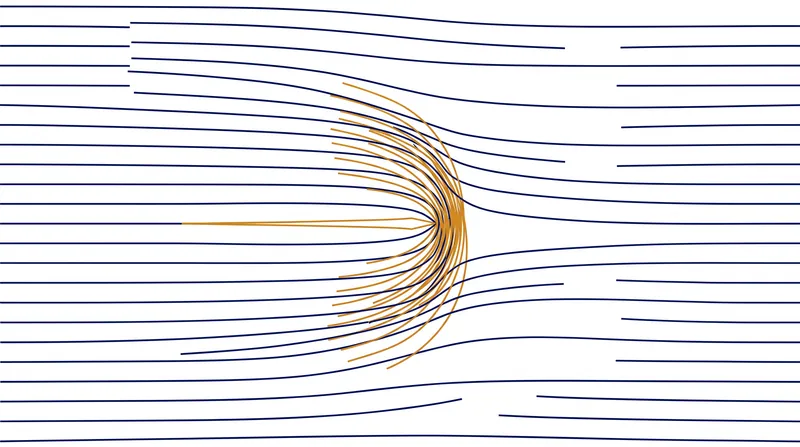

To understand why, you must look at how stress flows through a solid. When you pull on a flawless material, the load distributes evenly across every atomic bond. But when a microscopic crack—even one just a few micrometers long—exists, the stress cannot pass through the empty space. Instead, it routes around the crack, concentrating intensely at the crack's extremely sharp tip. The atomic bonds at that specific tip are forced to carry the load of the entire missing cross-section, causing them to snap long before the rest of the material feels any significant strain.[5]

Griffith quantified this with a precise mathematical boundary, establishing that the critical stress for fracture is inversely proportional to the square root of the flaw size (c). The critical takeaway is the proportionality itself: σ ∝ 1/√c. If a manufacturing process introduces a flaw that is four times longer, the material's overall strength is cut exactly in half. The chemical bonds have not changed, but the geometric multiplier at the crack tip has doubled.[1]

The strongest evidence for Griffith's model comes from the 21st-century isolation of 2D materials like graphene. In 2014, researchers testing pristine, defect-free graphene recorded tensile strengths of 130,000 MPa, finally matching the theoretical limit of carbon-carbon bonds. But the moment a nanoscale defect was introduced, the graphene's strength plummeted in exact accordance with Griffith's 1920 curve. The ACS researchers confirmed that "the Griffith criterion is applicable to graphene," proving the math holds even at the thickness of a single atom.[2]

The strongest counter-argument to treating Griffith's criterion as a universal law is that it strictly applies only to perfectly brittle materials like glass or ceramics, where no plastic deformation occurs. In metals, the sharp crack tip blunts as the material yields, absorbing energy and requiring a modification to the math. George Irwin and Egon Orowan later expanded Griffith's work to include a plastic work term, explaining why steel bends before it breaks while glass simply shatters.[3][5]

Acknowledging this limitation does not diminish the core principle for brittle structures. The σ ∝ 1/√c relationship forces engineers to stop asking how strong a material's bonds are, and start asking how small its largest flaw is. The next frontier in materials design is not discovering stronger elements on the periodic table, but developing manufacturing techniques that can reliably cap the maximum defect size at the nanoscale.[1][6]

The implications of this shift extend far beyond theoretical physics, directly impacting how we build everything from smartphone screens to jet engine turbine blades. When Apple or Corning develop a new iteration of Gorilla Glass, they are not inventing a new element; they are using chemical ion exchange to place the surface of the glass under intense compressive stress. This compression physically squeezes microscopic surface flaws shut, preventing the stress concentration that Griffith's equation predicts would otherwise cause a catastrophic failure.[3][6]
