The Von Kármán Vortex Street: Why Aerodynamic Stability Demands Open-Truss Suspension Bridges

For a suspension bridge to survive a crosswind, one binding constraint must hold: the structure must not allow the wind to organize into a rhythmic, alternating pattern of low-pressure eddies. If a bridge deck acts as a solid wall, it forces the wind to shear around it, creating a Von Kármán vortex street. When the frequency of these shedding vortices matches the natural torsional frequency of the bridge, the structure begins to twist. In 1940, the Tacoma Narrows Bridge failed this constraint catastrophically. Today, the condition holds across modern infrastructure only because engineers abandoned sleek, solid plate girders in favor of deep, wind-permeable trusses.[1][3]

The phenomenon is not a mystery of materials, but of fluid dynamics. As wind hits a bluff body—like a solid steel I-beam—it cannot flow smoothly. Instead, it separates, curling into vortices that detach alternately from the top and bottom edges. Each detachment creates a momentary drop in pressure, pulling the bridge slightly in that direction. The American Society of Civil Engineers (ASCE) established in their landmark 1952 report that this alternating pressure differential is the primary driver of aerodynamic instability in suspension bridges.[1][5]

The danger arises from the Strouhal number, a dimensionless value describing oscillating flow mechanisms. If the wind speed reaches a critical threshold where the vortex shedding frequency locks into the bridge's natural resonant frequency, the structure absorbs energy from the wind with every cycle. The amplitude of the twisting grows exponentially. Physical models published by the American Institute of Physics demonstrate that this aeroelastic flutter is a self-feeding loop; once the bridge begins to twist, the twisting itself alters the aerodynamic profile, exacerbating the vortex shedding.[2][4]

The original Tacoma Narrows Bridge was an aesthetic triumph but an aerodynamic disaster. Its solid plate girders, measuring 8 feet deep, created a perfect bluff body. At a wind speed of just 42 miles per hour (19 meters per second), the vortex shedding frequency perfectly matched the bridge's torsional mode of 0.2 hertz. The resulting aeroelastic flutter tore the main span apart in under an hour. Researchers analyzing the aerodynamic work perspective note that the solid H-section of the deck mathematically guaranteed this failure mode under those specific atmospheric conditions.[4][6]

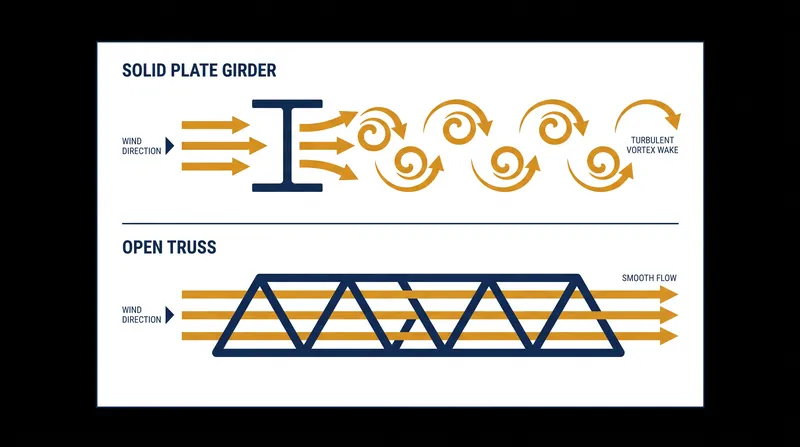

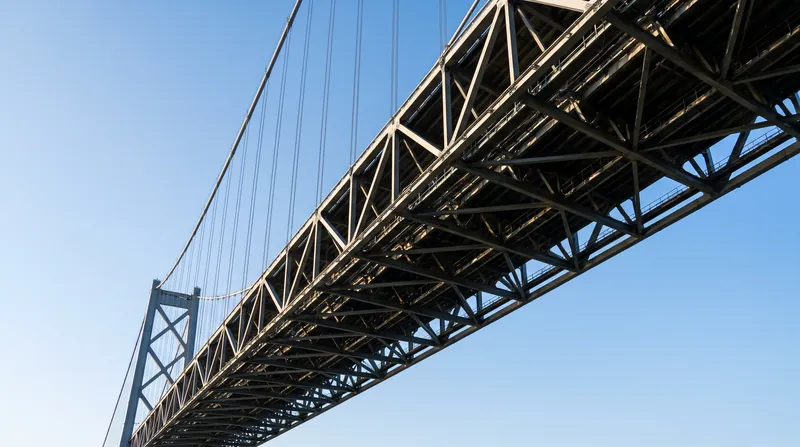

The engineering consensus immediately shifted following the collapse. The rebuilt Tacoma Narrows, and nearly every major suspension bridge constructed since, utilizes an open-truss deck. By forcing the wind to pass through a lattice of steel rather than around a solid wall, the design breaks up the formation of large, coherent vortices. The 1952 ASCE Advisory Board report codified this requirement, making wind tunnel testing and aerodynamic permeability mandatory for all future long-span structures.[1][6]

This transition represents a fundamental trade-off in civil engineering. Solid plate girders are cheaper to manufacture, faster to assemble, and offer a slender, elegant profile. Open trusses are heavy, expensive, and visually dense. Yet, the aerodynamic math leaves no choice. A solid deck prioritizes cost and aesthetics at the expense of structural survival, while an open truss prioritizes aerodynamic stability at the cost of material efficiency. The physical models prove that you cannot have both.[4][7]

Today, the principles of the Von Kármán vortex street extend far beyond bridges. NASA Earthdata tracks these identical vortex patterns forming in the atmosphere behind islands and mountains. In industrial applications, cooling towers, factory chimneys, and even car antennas are fitted with helical strakes to disrupt vortex shedding. The requirement to manage fluid dynamics is absolute, dictating the shape of everything from deep-sea oil risers to skyscraper facades.[3][5]

The legacy of the Von Kármán vortex street is a permanent alteration of the built environment. We no longer build suspension bridges that try to block the wind; we build structures that allow the wind to pass through them. The math of aeroelastic flutter dictates that aesthetic sleekness must always yield to aerodynamic permeability. The next generation of bridge design will continue to refine this balance, but the fundamental constraint discovered in 1940 remains unbroken.[1][7]
