Unlocking Hidden Grid Capacity: The Physics of Dynamic Line Ratings

A single mile of standard 345-kilovolt transmission line can carry enough electricity to power roughly 150,000 homes, but only if the air around it is perfectly still and baking at 104 degrees Fahrenheit. Because those worst-case conditions almost never occur simultaneously, the physical wire is routinely capable of moving 20 to 40 percent more power than its administrative limit allows.[3]

The transmission grid operates on a system of assumptions established in the mid-twentieth century. To prevent power lines from overheating, stretching, and sagging into trees or buildings, engineers assign each line a Static Line Rating. This rating acts as a permanent speed limit, calculated by assuming extreme summer heat and a negligible wind speed of just 2.0 feet per second.[1]

While this conservative approach guarantees safety, it leaves massive amounts of infrastructure underutilized. Wind is the primary cooling mechanism for overhead conductors. Even a gentle three-mile-per-hour breeze blowing perpendicular to a transmission line can double its thermal capacity compared to stagnant air.[3]

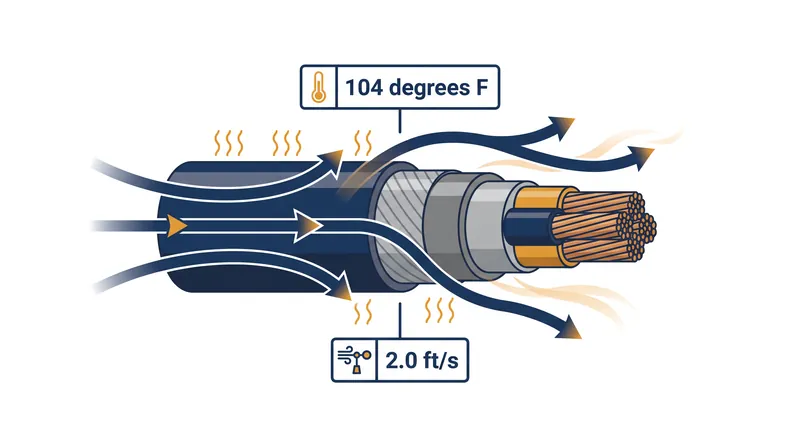

The physics of convective cooling dictate that as wind passes over the cylindrical surface of an aluminum conductor steel-reinforced cable, it strips away the heat generated by electrical resistance. When grid operators ignore this real-time cooling effect, they artificially constrain the flow of electricity, forcing the curtailment of cheap wind and solar power and requiring the dispatch of more expensive, localized generation.[3]

The Federal Energy Regulatory Commission recognized this inefficiency in 2022 when it issued Order 881. The mandate requires transmission providers to transition away from static limits and implement Ambient-Adjusted Ratings by the summer of 2025. "Static line ratings can result in transmission lines being underutilized, which in turn can lead to higher costs for consumers," the Commission stated in its final ruling.[1]

Ambient-Adjusted Ratings represent a step forward by adjusting capacity limits based on hourly temperature forecasts. However, they still assume worst-case wind conditions. The more advanced solution, known as Dynamic Line Rating, deploys physical sensors directly onto the transmission towers or the wires themselves to measure exact local conditions in real time.[1]

These sensor packages use a variety of measurement techniques. Some employ LiDAR to continuously monitor the physical distance between the sagging wire and the ground. Others measure the mechanical tension at the point where the insulator attaches to the tower, calculating the exact temperature of the conductor based on its thermal expansion.[2]

Data collected by the Idaho National Laboratory demonstrates the scale of the locked capacity. In field tests across varied topographies, researchers found that Dynamic Line Ratings could safely increase transmission capacity by 10 to 30 percent for more than 85 percent of the year. During periods of high wind generation—precisely when transmission bottlenecks are most severe—the cooling effect of the wind naturally aligns with the highest periods of power production.[2]

Despite the clear physical evidence, the transition to dynamic ratings faces institutional friction. Regional transmission organizations prioritize absolute reliability over maximum efficiency. Operating a grid closer to its physical thermal limits reduces the margin for error if a sensor fails or a sudden drop in wind speed causes a rapid spike in conductor temperature.

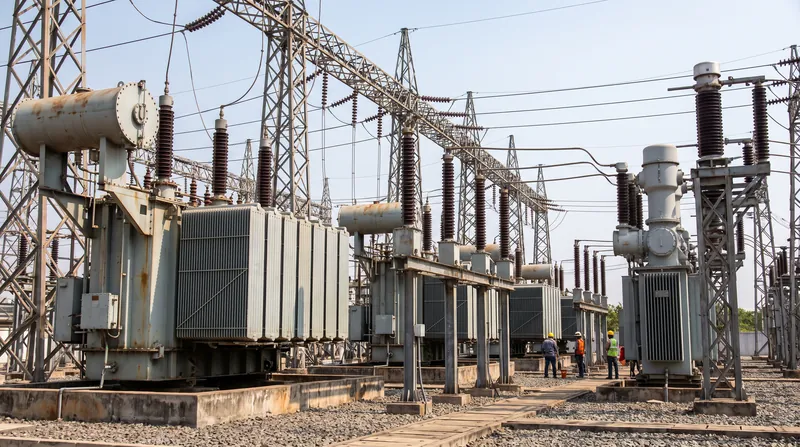

Furthermore, the wires themselves are not the only constraint on the system. Pushing 30 percent more current through a transmission corridor requires the downstream substations to handle the increased load. Transformers, circuit breakers, and protective relays all have their own thermal and operational limits, which can create secondary bottlenecks even if the overhead lines are running cool.

The economic stakes of resolving these bottlenecks are immense. The Department of Energy estimates that deploying grid-enhancing technologies, including dynamic ratings, across the existing network could save ratepayers billions of dollars annually by reducing congestion costs. It offers a way to integrate gigawatts of new generation without waiting five to ten years to permit and construct new 100-foot steel towers.

The timeline for widespread adoption hinges on regulatory enforcement and the maturation of utility software systems. Integrating thousands of real-time sensor feeds into the highly secure, legacy energy management systems used by grid dispatchers requires significant software upgrades and rigorous cybersecurity protocols.[1]

The physical reality of the grid is that its capacity is not a fixed number, but a fluid variable dictated by the weather. As electricity demand rises from data centers and electrification, the industry is being forced to abandon the safety of static assumptions and engineer a system that responds to the actual, measured state of the physical world.[4]
