The L2 Penalty: How Weight Decay and Dropout Prevent Neural Network Overfitting

Inside a University of Toronto lab in 2014, researchers Nitish Srivastava and Geoffrey Hinton observed a persistent failure mode in deep neural networks: as the models grew larger, they simply memorized the training data. The capacity of these networks to approximate complex functions was outpacing their ability to generalize to unseen examples. "Deep neural nets with a large number of parameters are very powerful machine learning systems," the researchers wrote in the Journal of Machine Learning Research. "However, overfitting is a serious problem in such networks."[2]

When a network contains millions of parameters, it can create complex co-adaptations where specific neurons correct the mistakes of others. Instead of learning the underlying signal, the network fits the noise of the training set. A hidden unit begins to rely entirely on a specific neighboring unit being present to process a feature, creating a brittle architecture that collapses when presented with novel data.[2]

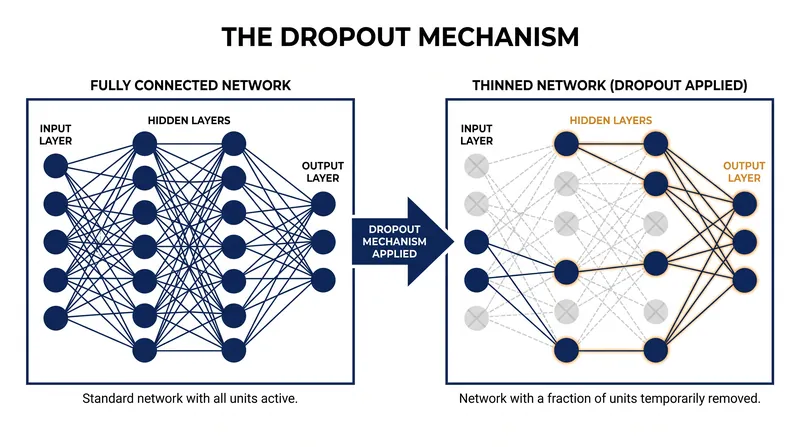

To break these co-adaptations, the researchers introduced Dropout. The mechanism attaches a Bernoulli variable to each neuron, giving it a probability $p$ of being retained during a given training step. "The key idea is to randomly drop units (along with their connections) from the neural network during training," the authors explained.[2]

The standard configuration sets $p = 0.5$ for hidden units, meaning 50% of the layer's neurons are temporarily removed, along with their incoming and outgoing connections. Visible units, which process the raw input, typically use a 20% dropout rate. This stochastic removal forces the network to learn redundant representations.[2]

Because no single neuron can rely on its neighbors to correct its mistakes, the algorithm prevents the complex co-adaptations that lead to overfitting. At test time, the full network is deployed, but the weights are scaled down by the retention probability to approximate the ensemble of exponentially many thinned networks.[2]

While Dropout dynamically alters the network's architecture, a second technique—weight decay—operates directly on the loss function to constrain parameter growth. As neural networks train, they often develop excessively large weights to minimize the error on specific, noisy training examples.[1]

Weight decay, frequently implemented as L2 regularization, adds a penalty term proportional to the sum of the squared weights. By penalizing large weights, the optimizer pushes parameters toward zero unless they provide a sufficient reduction in the original loss.[1]

This mathematical constraint results in smoother functions that generalize better to unseen data. The optimizer is forced to distribute the learning across many small weights rather than relying on a few massive connections.[1][3]

In standard stochastic gradient descent (SGD), weight decay and L2 regularization are mathematically identical. The L2 penalty shrinks the weight by a constant factor before the gradient update is applied. For years, machine learning practitioners treated the two terms as entirely interchangeable.[3][5]

However, a critical divergence emerges when using adaptive optimizers like Adam, which adjust the learning rate for each parameter based on historical gradient magnitudes. Adaptive methods maintain a running average of past gradients to accelerate convergence, fundamentally altering how penalties are applied.[5]

In a 2017 paper, researchers Ilya Loshchilov and Frank Hutter demonstrated that applying an L2 penalty within Adam scales the regularization by the historical gradient. "L2 regularization and weight decay regularization are equivalent for standard stochastic gradient descent," they noted, "but as we demonstrate this is not the case for adaptive gradient algorithms."[5]

Because Adam scales gradients by their historical magnitudes, an L2 penalty added to the loss function gets inadvertently scaled down for weights with large historical gradients. The most active parameters—the ones most likely to overfit—receive the least regularization.[5]

To fix this, they introduced AdamW, which decouples the weight decay from the gradient update. By separating the penalty from the loss function's gradient, the optimizer ensures that the regularization term is not diluted by the adaptive learning rate mechanism.[4][5]

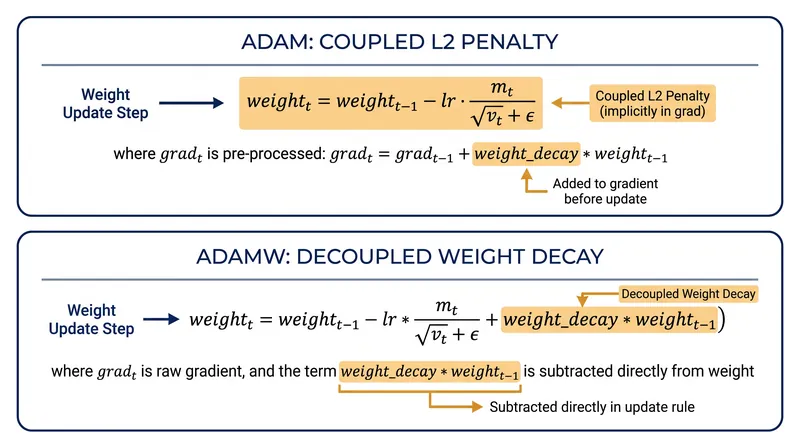

In PyTorch's implementation, standard Adam updates weights using the formula `weight = weight - lr * (grad + weight_decay * weight)`. This couples the decay to the gradient step, embedding the flaw Loshchilov and Hutter identified.[4]

AdamW bypasses the gradient scaling entirely, applying the penalty directly: `weight = weight - lr * grad - lr * weight_decay * weight`. "AdamW decouples weight decay, applying it directly to the weights as in SGD," the PyTorch documentation states.[4]

The framework recommends a typical learning rate between 1e-3 and 1e-4 with an epsilon stability term of 1e-8 for AdamW. This decoupled approach ensures all weights are regularized equally, regardless of their gradient history.[4]

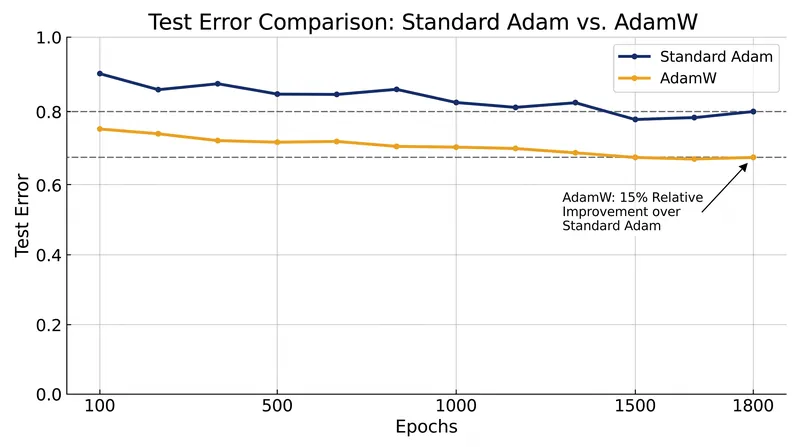

In empirical tests on CIFAR-10 and ImageNet 32x32 datasets, AdamW achieved a 15% relative improvement in test error over standard Adam. The decoupled optimizer matched or exceeded the generalization performance of SGD with momentum across training budgets ranging from 100 to 1800 epochs.[5]

Today, the combination of Dropout for architectural robustness and decoupled weight decay for parameter constraint forms the standard regularization baseline for modern deep learning. The exact optimal hyperparameter values remain an active area of tuning, but the mathematical necessity of these penalties is settled. The next frontier involves adapting these techniques for sparsely activated mixture-of-experts models, where the definition of a "large" weight is highly contextual.[6]
