Pilotis, Free Plan, and Roof Garden: How Le Corbusier's Five Points Rewrote Architecture

In the late summer of 1928, Pierre and Eugénie Savoye stood on a seven-hectare meadow overlooking the Seine in Poissy, France, and commissioned a weekend retreat. They had hired an avant-garde Swiss-French architect named Charles-Édouard Jeanneret, better known as Le Corbusier, along with his cousin Pierre Jeanneret. The Savoyes handed over a list of standard technical requirements for a country house: hot water, central heating, and specific lighting. What they received instead was a full-scale physical argument—a startling white box floating above the grass that would fundamentally rewrite the rules of human shelter.[3][5]

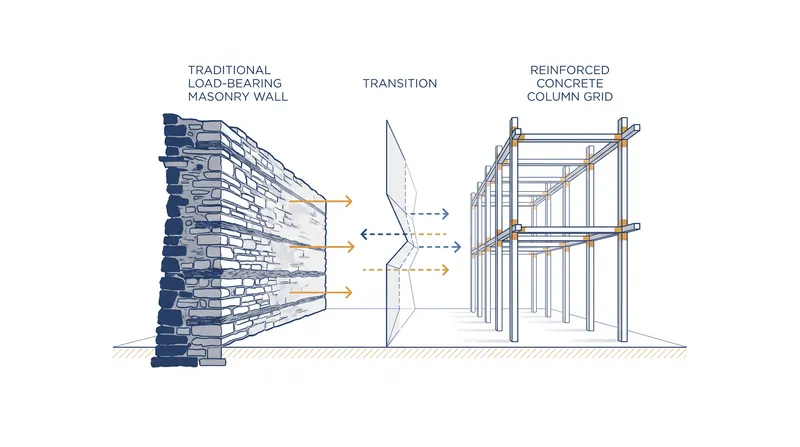

Just a year earlier, in 1927, Le Corbusier had published a manifesto titled "Les 5 Points d'une Architecture Nouvelle." It was a direct response to a technological breakthrough that had rendered centuries of building techniques obsolete. For millennia, architecture had been dictated by gravity and masonry. Walls had to be thick at the base to hold up the roof, and windows were merely small holes punched into that structural mass to avoid weakening the stone. But the perfection of reinforced concrete—concrete poured around steel rods to handle both compression and tension—changed the math entirely.[1][4]

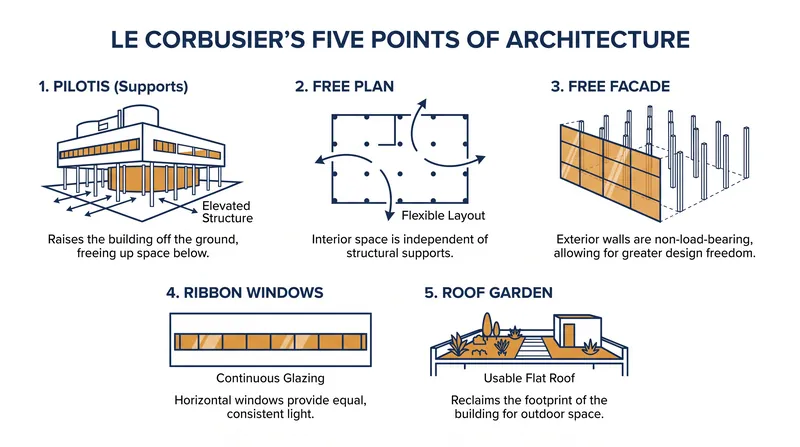

Le Corbusier realized that if a grid of concrete columns could carry the weight of the floors and the roof, the wall was suddenly unemployed. It no longer needed to hold the house up. From that single structural epiphany, he derived five distinct principles that would define the International Style and shape the modern built environment. These points were not merely aesthetic choices; they were a rationalist attempt to create a "machine for living in," optimized for the industrial age.[1][4]

The first point was the pilotis. Rather than sitting heavily on a foundation, the building was hoisted into the air on a grid of slender reinforced concrete columns. At Villa Savoye, this allowed the ground floor to be carved away, creating a curved driveway whose radius precisely matched the turning circle of a 1929 automobile. The house, Le Corbusier wrote, was to be "an object set above the ground, in the middle of the landscape," leaving the earth untouched beneath it.[3]

The second and third points were the free plan and the free facade. Because the pilotis carried the structural load, interior partitions could be placed anywhere, completely independent of the floors above or below. Space flowed freely, adapting to human use rather than structural necessity. Similarly, the exterior skin was separated from the structural frame. The facade carried nothing but its own weight, acting as a lightweight curtain rather than a fortress wall.[1][4]

This liberation of the wall enabled the fourth point: the fenêtre en longueur, or ribbon window. Without load-bearing masonry to interrupt the glass, windows could run the entire horizontal length of the facade. This flooded the interior with unprecedented amounts of natural light and framed the surrounding French countryside like a continuous panoramic painting, fundamentally altering the visual relationship between the interior and the outdoors.[1][4]

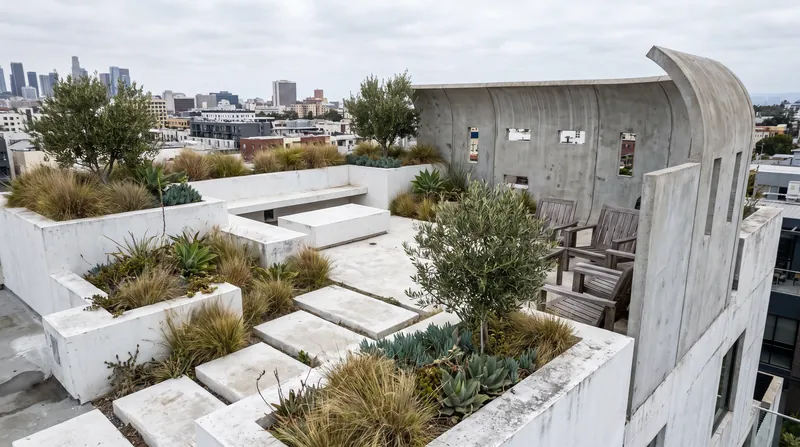

The fifth and final point was the roof garden. Le Corbusier argued that pitched roofs were obsolete. Instead, flat roofs would reclaim the land occupied by the building's footprint. He theorized that a layer of soil and vegetation would protect the reinforced concrete from thermal expansion and provide natural insulation, merging the interior space with the sky while offering a private outdoor sanctuary.[1][4]

As a spatial and aesthetic doctrine, the Five Points were pristine. As a physical reality in the early 1930s, they were highly problematic. The theoretical claims Le Corbusier made about the inherent weatherproofing and thermal mass of his new architecture collided violently with the limitations of the era's materials. The vision outpaced the sealants and insulation available at the time.[5][6]

Almost immediately after moving in, the Savoye family discovered that the flat roof and skylights leaked relentlessly. The ribbon windows, lacking modern double-glazing, bled heat, making the concrete box brutally cold in the winter. "Due to many different problems it was rarely inhabited," notes the historical record of the estate. The Savoyes bombarded the architect with angry letters about water penetrating the ramps and ruining the pristine white walls, demanding immediate fixes.[3][5]

The prototype was so compromised by these material failures that it survived multiple demolition threats before being rescued and designated an official French historical monument in 1965—a rare honor granted while Le Corbusier was still alive. Today, a 1:33.3 scale model of the villa sits in the Museum of Modern Art, preserved as the canonical distillation of modernist thought, while the restored original receives thousands of visitors a year.[2][5]

The genius of the Five Points was not that they worked perfectly on the first try, but that they correctly identified the trajectory of structural engineering. The material science of sealants, insulation, and thermal breaks eventually caught up with Le Corbusier's vision. Today, the office towers and apartment blocks that define our cities—floating on columns, wrapped in glass, and topped with terraces—are the direct descendants of that 1927 manifesto, proving that the structural logic was sound even when the early concrete was not.[6]
