The Non-Load-Bearing Facade: How the Curtain Wall Separates Structure From Enclosure in Modern Skyscrapers

The survival of a modern skyscraper is not decided when the steel is poured or when the glass is hoisted into the sky. It is determined months earlier, inside a wind tunnel, during the initial facade orientation analysis. At high elevations, a building acts as a massive sail.

As noted in the 2026 engineering guidelines, the exterior envelope must function as a "mechanical diaphragm" that absorbs kinetic pressure. If the calculations at this foundational step are off by even a fraction, the entire structure is compromised. This is why the curtain wall—a non-load-bearing skin that hangs off the building's skeleton—is the most critical engineering mechanism in high-rise architecture.

Stripping the perimeter walls of their structural duty was one of the defining gestures of mid-century modernism, separating the building's aesthetic enclosure from its gravity-defying framework. A curtain wall carries no dead-load weight other than its own components. The Washington State Department of Archaeology & Historic Preservation defines it strictly as an "exterior wall having no structural function."

Instead of holding the building up, it transfers lateral wind loads and seismic forces back to the main structural grid through connections at each floor line. This separation allows the internal skeleton of reinforced concrete and steel to handle the brutal heavy lifting, while the exterior remains a lightweight, transparent shell.[2]

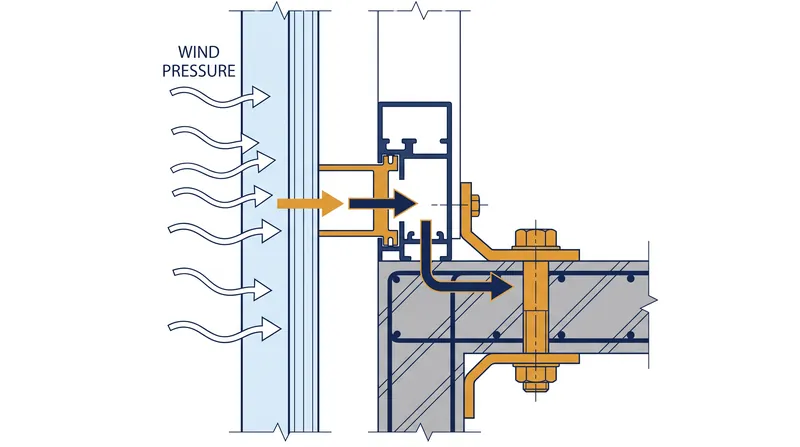

The mechanism relies on a precise grid of vertical and horizontal aluminum profiles. These extrusions are engineered with specific wall thicknesses and moments of inertia to resist deformation. When wind shoves the building, the force travels from the glass infill into the aluminum framing, and then through the anchors into the floor slabs.

By transferring the load at every single level, the curtain wall prevents the accumulated pressure from overwhelming any single point. This continuous shedding of kinetic energy is what allows towers to reach heights exceeding 1,000 feet, enduring wind speeds of over 120 miles per hour, without their glass skins buckling inward.

Water management is equally critical to the curtain wall's function, as high-altitude winds drive rainwater against the glass with immense pressure. To prevent infiltration, engineers utilize pressure-equalized chambers built directly into the aluminum profiles. When the air pressure inside the framing cavity matches the kinetic wind pressure outside, the inward progression of water physically stops.

A pressure differential of just 10 pascals can drive water through a microscopic gap, making this equalization essential. Gravity then takes over, directing the moisture down through multi-tier drainage channels and weeping it back out to the exterior. This dynamic equilibrium ensures that the interior remains completely dry, even during a hurricane.[3]

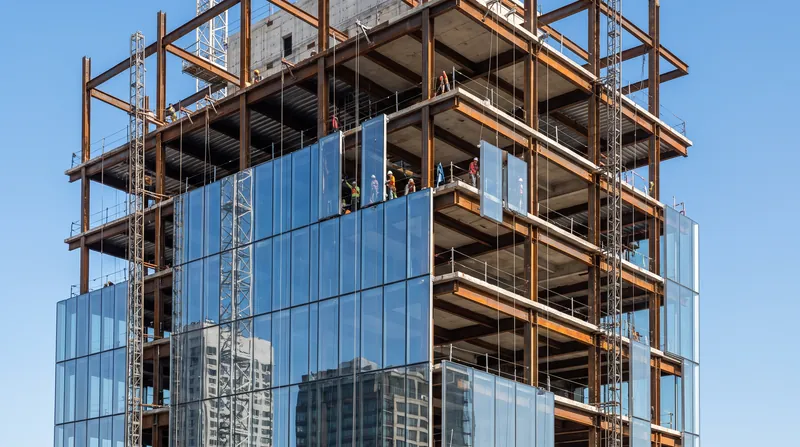

The evolution of this system fundamentally altered the economics and speed of skyscraper construction. Because curtain walls are prefabricated with millimetric tolerances in climate-controlled factories, they arrive on site ready to be interlocked. This unitized approach eliminates the need for heavy on-site welding or masonry work.

By rapidly enclosing the building in a weather-tight shell, construction managers can initiate interior mechanical installations up to 30% faster than traditional methods, saving millions of dollars on a standard 50-story high-rise. The curtain wall does not just protect the building; it accelerates its path to market.[1]

However, the separation of structure and skin introduces complex challenges at the interfaces. The anchoring brackets must accommodate the natural movement of the building, including thermal expansion, concrete creep, and seismic sway. If a curtain wall is bolted too rigidly to the floor slabs, the structural deflection of the tower will crush the glass panels.

Engineers solve this by designing slotted channels and dynamic connections that allow the aluminum grid to float independently of the skeleton. As architectural guidelines note, the facade must accommodate structural movement at the anchor-wall interface without ever breaking its weather seal.[1]

AI

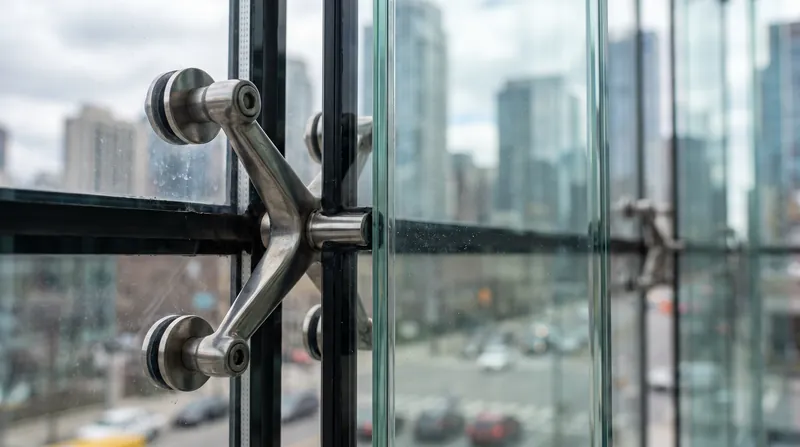

As architectural demands push for greater transparency, the mechanisms supporting the curtain wall have become increasingly invisible. Structurally glazed systems now use specialized silicone sealants and concealed toggles to hold the glass, eliminating the need for exterior aluminum cover caps.

In the most extreme iterations, spider fittings—sleek, point-fixed connectors ranging from 6 to 12 inches in width and 2 to 4 inches in depth—bind vast glass panes directly to a steel substructure, creating a seamless mirror effect. Yet, even as the framing disappears from view, the underlying physics remain unchanged. The curtain wall continues to act as a high-tech, weatherproof jacket, isolating the occupants from the extreme forces raging just millimeters away.

The future of the curtain wall lies in transforming this passive barrier into an active environmental filter. Modern iterations incorporate thermal breaks, double-glazing, and low-emissivity coatings to minimize heat transfer, addressing the energy inefficiencies that plagued early glass towers.

As building codes tighten for the 2030 zero-carbon targets, the facade is no longer just a shield against wind and water; it is a critical component of the structure's thermal performance. The next verifiable checkpoint for the industry is the integration of photovoltaic cells directly into the spandrel panels, turning the passive glass skin into an active power grid.[3]
