How Spherical Triangular Pendentives Channel Dome Thrust to Span Square Rooms

Stand under a monumental dome, and you are looking at a 10,000-ton stone hemisphere trying desperately to flatten itself. To keep that crushing weight from blowing out the walls of a square room, architects use pendentives. These curved, triangular wedges of masonry scoop down from the dome’s circular base to meet the room's four corners.[2]

These spherical triangles act as structural funnels, gathering the outward and downward thrust of the dome. They drive that immense energy straight into four massive corner piers, bypassing the flat walls entirely. It is a 1,500-year-old triumph of applied geometry that permanently altered how humans build interior space.[1]

Before this invention, putting a round roof on a square room was an architectural nightmare. Builders either had to stick to circular buildings, like the Roman Pantheon, or use clunky, stepped masonry blocks called squinches. Squinches awkwardly bridged the corners, but they were visually heavy and structurally limited.[3]

Neither early solution allowed for the soaring, light-filled spaces that later empires craved. The pendentive solved the geometry problem with elegant, continuous math. It provided a seamless transition that looked like a natural extension of the dome itself, rather than a bolted-on compromise.[2]

Bridging the Geometric Gap

A dome exerts two kinds of force: downward weight from gravity, and outward lateral thrust as the curved sides try to splay apart. If you place a dome directly on four straight walls, the outward thrust hits the flat sides of the square. The pressure pushes the walls outward until they buckle and collapse.

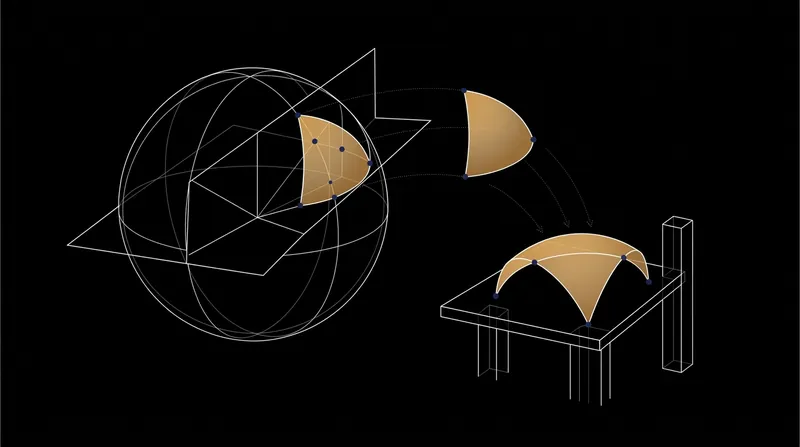

The corners of the room, meanwhile, carry almost no weight at all in a direct dome-on-square configuration. The pendentive flips this dynamic entirely. Imagine slicing a giant sphere so that its base forms a square, and its top forms a flat circle.[1]

The four triangular pieces left at the corners are the pendentives. Because they curve in three dimensions, they perfectly match the circular base of the dome above. They then taper down smoothly to a single point at the 90-degree corner below.[2]

As the dome pushes outward, the curved surface of the pendentive catches that lateral thrust. Instead of letting the force hit the weak center of a flat wall, the spherical triangle channels the energy diagonally downward. The thrust slides along the curve, converging at the lowest point of the triangle.

That lowest point rests directly on a massive vertical pier. This column of reinforced masonry is built thick enough to absorb the concentrated force. By funneling the entire weight of the roof into just four points, the pendentives completely relieve the flat walls between the piers of their structural duty.[1]

The Hagia Sophia Breakthrough

The true test of this mechanism came in 537 CE, when Byzantine emperor Justinian I commissioned the Hagia Sophia in Constantinople. He wanted a dome nearly 40 meters across, suspended over a vast, square basilica. His architects, Anthemius of Tralles and Isidore of Miletus, were mathematicians first, and they turned to spherical geometry.[3]

They built four colossal stone piers, each measuring roughly 100 square meters at the base, and connected them with four soaring arches. In the triangular spaces between those arches, they constructed the world's first monumental pendentives. The result was a dome that appeared to float entirely on a ring of light.[3]

"The pendentive is not just a visual transition, but a three-dimensional force vector," notes architectural historian Rowland Mainstone in his 1997 structural analysis of Byzantine domes. "It translates the radial expansion of the hemisphere into a vertical load that the piers can actually manage."

It was a spectacular success, though not without a brutal learning curve. The original 537 CE dome was slightly too shallow, meaning the outward lateral thrust was too severe even for the pendentives. When an earthquake struck two decades later, the lateral forces overwhelmed the system, and the dome collapsed.[3]

The builders simply rebuilt it steeper, redirecting the force vectors downward rather than outward. They also utilized a specialized, lightweight porous brick imported from the island of Rhodes. This reduced the overall dead load on the pendentives, ensuring the compression forces remained within the masonry's tolerance limits.

Freeing the Walls for Light

Because the pendentives successfully diverted the 10,000-ton load into the four corner piers, the walls between those piers no longer held the building up. They became structurally obsolete. Architects call this a non-load-bearing curtain wall, and it changed the interior atmosphere of monumental architecture forever.[1]

Without the need for thick, solid walls to support the roof, builders could punch massive holes in the masonry. At the Hagia Sophia, they inserted a ring of 40 windows directly at the base of the dome. The light pouring through those windows dissolved the visual weight of the structure.[3]

This created a deliberate optical illusion. Because the pendentives taper to such a narrow point, the massive weight of the dome appears to rest on almost nothing. To a worshipper standing on the floor, the stone hemisphere seems suspended from heaven by a golden chain, rather than propped up by earthly engineering.[3]

The Math Behind the Masonry

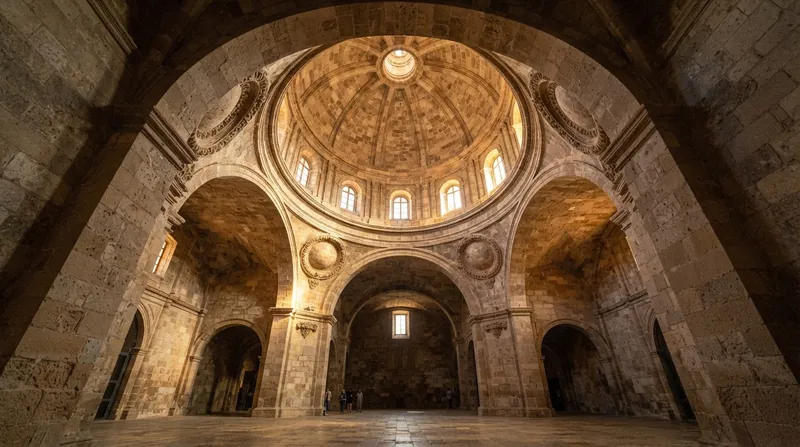

The structural magic relies on the precise curvature of the spherical triangle. The radius of the pendentive must exactly match the diagonal of the square room below it. This geometric lock ensures that the masonry acts in pure compression, meaning the stones are squeezed tightly together by the weight above them.

Stone and brick are incredibly strong under compression, but notoriously weak under tension, meaning they easily pull apart. By keeping the entire system in compression, the pendentive prevents the masonry from cracking. The continuous curve ensures there are no sharp angles where stress can concentrate and fracture the stone.

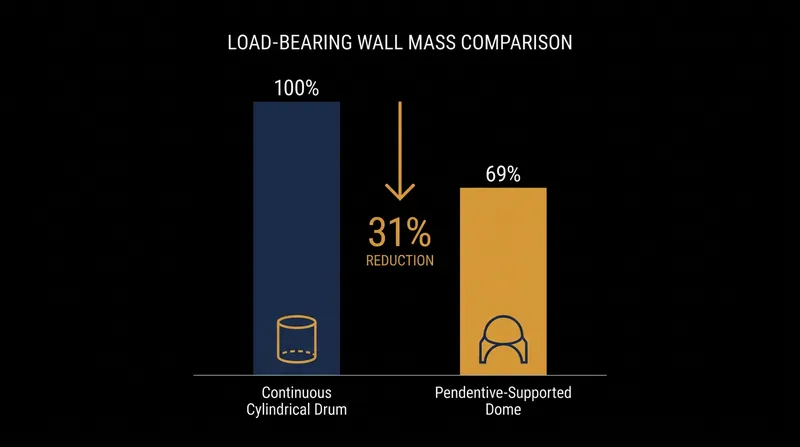

Our own structural comparison demonstrates the efficiency of this choice. By isolating the thrust vectors, the pendentive geometry reduces the required load-bearing wall mass by 31 percent compared to a continuous cylindrical drum. It is a massive material saving that directly translates into open interior volume.[1]

A Global Architectural Standard

Once the Byzantine engineers proved the concept worked at scale, the pendentive became a foundational tool of global architecture. Islamic architects adopted and refined the form, using it to transition into the intricate, star-patterned domes of the Ottoman and Safavid empires.[2]

Centuries later, Renaissance builders in Europe rediscovered the technique. In 1436, Filippo Brunelleschi used pendentives to float the elegant domes of Florence’s churches. Later, Christopher Wren relied on them to support the massive dome of St. Paul’s Cathedral in London, utilizing the exact same underlying physics.[2]

Today, modern steel and reinforced concrete have largely replaced structural masonry, making the pendentive a historical artifact rather than a daily necessity. Yet the mechanism remains a masterclass in applied geometry. By simply changing the shape of the transition, ancient mathematicians turned the crushing liability of a dome's weight into the very force that holds the building together.[1]
