The Mechanics of Gothic Architecture: How Pointed Arches, Ribbed Vaults, and Flying Buttresses Defied Gravity

Gothic architecture is, at its core, a masterclass in load distribution. The soaring, light-filled cathedrals of Europe were not the result of magic or divine intervention, but of a radical triad of structural engineering: the pointed arch, the ribbed vault, and the flying buttress. Together, these three innovations solved a massive physical constraint, taking the crushing downward and outward thrust of a stone roof and channeling it safely into the earth.[8]

Stand inside the nave of Amiens or Beauvais Cathedral, and the stone seems to float. It is a neat trick, considering thousands of tons of limestone are hovering directly above your head. To appreciate the genius of this, you have to look at what came before.[5]

Romanesque architecture, the preceding style, relied on massive, thick walls to hold up heavy, semi-circular barrel vaults. Because a round arch pushes its weight outward almost as much as it pushes downward, the walls had to be incredibly thick to prevent the building from splitting open. Windows were tiny, leaving interiors dark and fortress-like.[1][7]

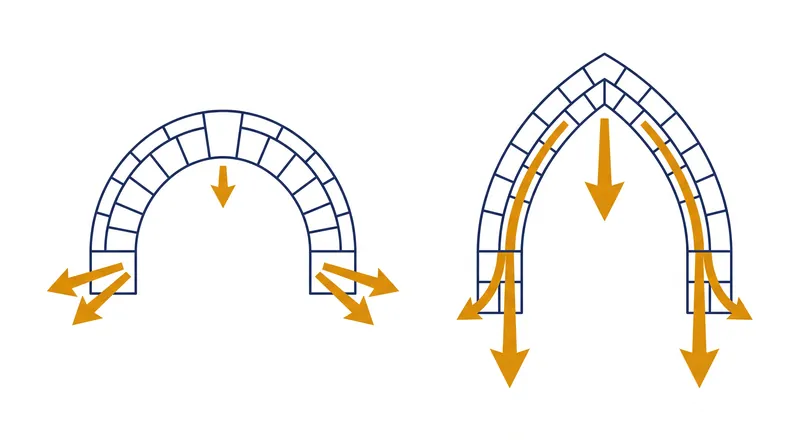

The first piece of the Gothic puzzle was the pointed arch. Borrowed from Islamic architecture, the pointed arch fundamentally changes the geometry of a building's weight. Unlike a semi-circular arch, which directs thrust outward, a pointed arch directs the load more steeply downward.[2][6]

This steeper angle means the columns or piers supporting the arch do not have to fight as much lateral, or sideways, pressure. It also allowed builders to span spaces of varying widths while keeping the peaks of the arches at the exact same height—a geometric flexibility that round arches simply could not offer.[1][8]

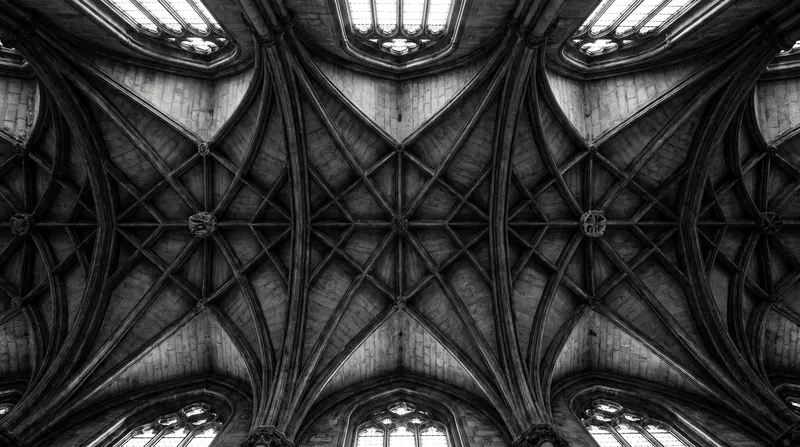

The second innovation was the ribbed vault. Instead of building a solid, heavy ceiling of stone, Gothic masons created a skeletal framework of intersecting pointed stone ribs. These ribs act as the primary load-bearing structure.[6][7]

Because the ribs do the heavy lifting, the webbing of stone laid between them could be surprisingly thin and light. This drastically reduced the overall weight of the roof. The ribbed vault concentrated the downward thrust onto specific points—the corners of each structural bay—rather than distributing it evenly along the entire length of a wall.[1][3]

But concentrating the weight at specific points created a new problem. The immense pressure at these junctures still had a lateral component, and the towering, increasingly thin walls of the cathedrals were in danger of buckling outward. Enter the flying buttress.[2][4]

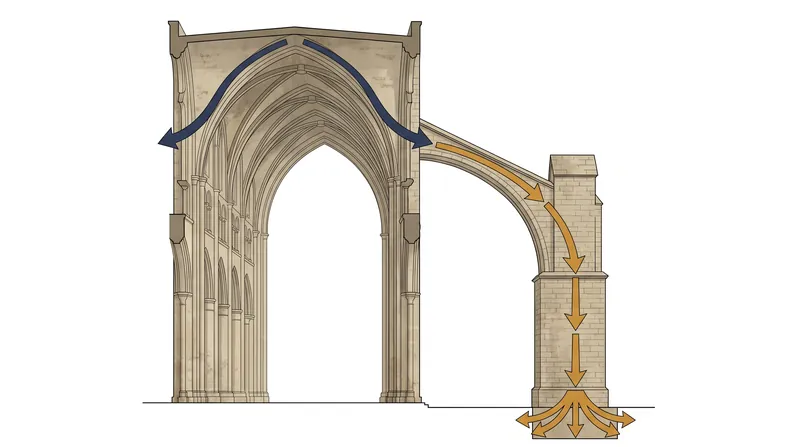

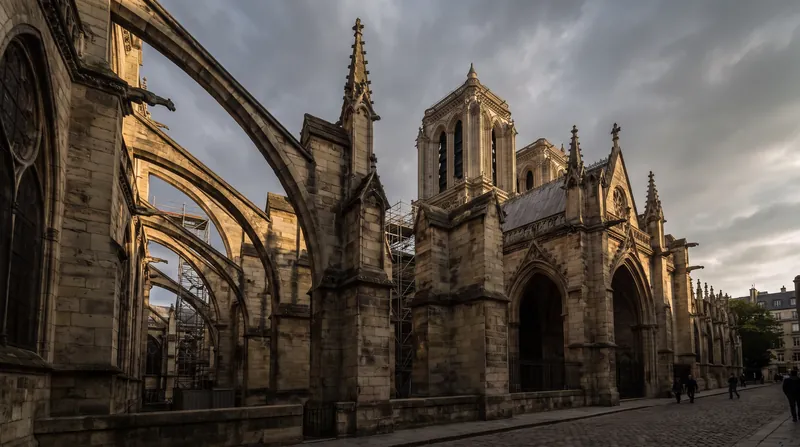

The flying buttress is perhaps the most dramatic and recognizable feature of Gothic engineering. It acts as an external exoskeleton. Instead of thickening the entire wall to resist the outward push of the vaulted ceiling, builders constructed massive masonry piers outside the building and connected them to the upper walls with arching bridges of stone.[3][4]

These "flying" arches catch the lateral thrust of the roof at its critical point and transfer it across thin air, down through the external piers, and into the ground. It is a brilliant piece of structural redirection.[2][8]

By moving the heavy structural support to the outside of the building, the walls themselves were freed from their load-bearing duties. They no longer needed to be thick fortresses of stone. Instead, they could be dissolved into vast expanses of glass.[4][7]

The result was the stained-glass curtain walls of structures like Sainte-Chapelle or Chartres Cathedral. The engineering triad—pointed arch, ribbed vault, and flying buttress—worked in perfect concert to dematerialize the wall, flooding the interiors with the "divine light" that theologians of the era demanded.[5][8]

Of course, this ambition was not without its failures. The desire to build ever higher pushed the mechanics to their absolute limits. At Beauvais Cathedral, builders attempted to reach a staggering vault height of 48 meters, or roughly 157 feet.[5]

In 1284, the choir vaults of Beauvais collapsed. Modern structural analysis suggests that resonant wind loads on the towering structure, combined with the extreme height and perhaps a miscalculation in the placement of the flying buttresses, simply overwhelmed the stone.[1][5]

Beauvais proved that even brilliant mechanics have material limits. The collapse sent a shockwave through the architectural world, and subsequent cathedrals were built with slightly more conservative proportions, or with doubled and thickened buttressing systems.[5][6]

Yet, the underlying logic of the Gothic structural system endured. The concept of separating the load-bearing skeleton from the enclosing walls is the exact same principle that allows modern steel-and-glass skyscrapers to exist today.[3][7]

The Gothic master builders did not have access to modern calculus or computer-aided stress modeling. They relied on empirical observation, geometric rules of thumb, and the hard-won lessons of structural failures to refine their craft.[1][8]

In the end, the mechanics of Gothic architecture represent one of the greatest leaps in the history of engineering. By mastering the invisible forces of gravity and thrust, they turned heavy stone into a framework for light, leaving a legacy that still dominates the skylines of Europe.[4][6]
