Gothic Cathedral Pinnacles Add Vertical Ballast to Force Pier Thrust Lines Inside the Middle Third

The ornate, spiky pinnacles capping Gothic cathedrals are not merely decorative flourishes designed to draw the eye toward heaven. They are massive lead-and-stone deadweights that push the building's outward forces straight down. By adding vertical ballast, they force the angled thrust of the vaulted ceiling safely into the solid center of the supporting stone piers.[1]

Stand outside the Cathedral of Amiens, completed around 1270, and the skyline looks like delicate, weightless lace. The cultural context often frames these structures as triumphs of faith over gravity. Yet, beneath the intricate carvings lies a brutal, heavy-duty physics engine keeping the roof from exploding outward.

The central problem of Gothic architecture is the ribbed vault. While these stone ceilings allowed for breathtakingly tall, light-filled naves, they generated immense lateral forces. A stone vault weighing upwards of 4,000 tons does not just push down; it pushes violently outward against the upper walls.[2]

If left unsupported, the nave walls of a 13th-century cathedral would simply blow out, collapsing the structure in seconds. To counter this, medieval builders developed the flying buttress. These arched stone bridges catch the outward thrust at the top of the wall and transfer it across thin air to a massive exterior pier.[2]

The Middle Third Rule

Catching the thrust is only half the battle. Once the flying buttress delivers that angled force to the exterior pier, the energy must be guided safely into the ground. This introduces the most unforgiving law of masonry engineering: the middle third rule.[1]

Stone is incredibly strong in compression, meaning it can support immense weight pushing straight down. However, it is notoriously weak in tension, meaning it easily pulls apart. If you push a tall stack of stone blocks from the side, the opposite edge wants to lift, ripping the mortar joints open.

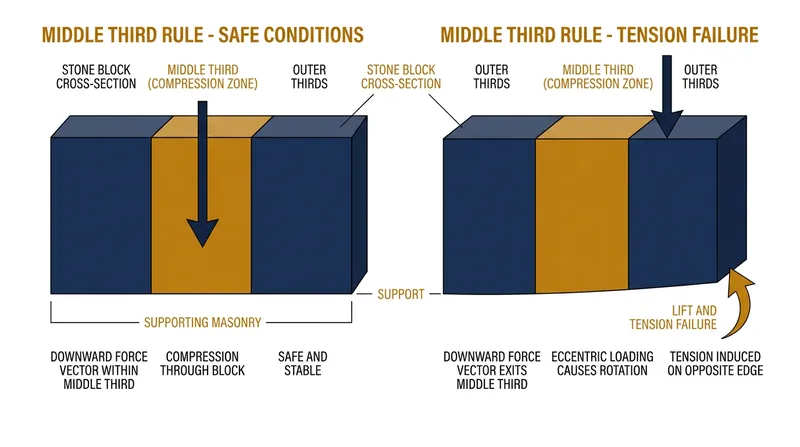

To prevent a stone pier from snapping, the total force vector must remain entirely within the middle third of the pier's cross-section. "If the thrust line wanders into the outer third, the inner face of the masonry goes into tension, and the structure fails," notes structural historian Robert Mark in his 1982 analysis of Gothic mechanics.

This is where the geometry of the flying buttress creates a crisis. The buttress hits the exterior pier at a shallow, downward angle. If you trace that angled force vector, it threatens to exit the far side of the pier long before it reaches the foundation.[2]

Vector Addition in Stone

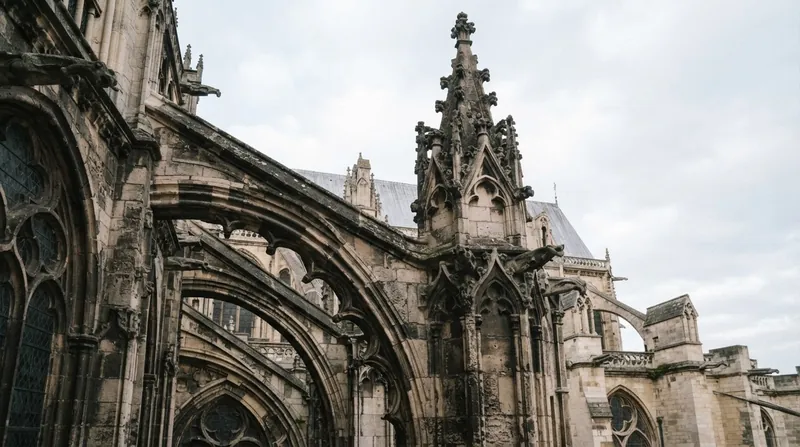

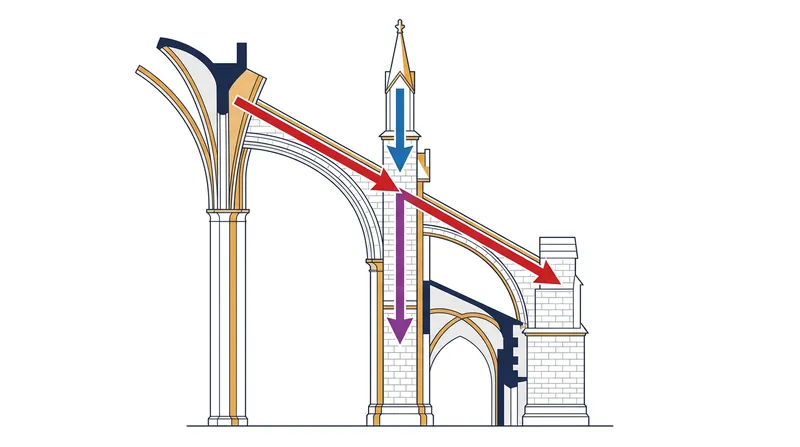

The solution is pure vector addition, executed in limestone and lead. By placing a massive weight directly on top of the exterior pier, builders introduced a powerful new vertical force. A standard 15-meter pinnacle can weigh well over 200 tons.[3]

When the angled thrust from the flying buttress meets the crushing vertical weight of the pinnacle, the two forces combine. The massive downward ballast steepens the resultant thrust line, bending the vector sharply downward toward the earth.[1]

This steepened vector is exactly what the structure requires. The added weight forces the thrust line back into the safe, compressive core of the pier. A 200-ton pinnacle can shift the thrust line inward by approximately 1.2 meters at the base of a standard 3-meter-thick Gothic pier.[1][3]

Without that 1.2-meter shift, the outer edge of the pier would bear all the compressive load, while the inner edge would tear itself apart in tension. The pinnacle ensures the entire cross-section of the stone remains squeezed tightly together, maximizing its structural integrity.

Engineering Disguised as Art

The genius of the medieval master masons lay in disguising this heavy engineering as delicate art. They did not have access to modern calculus or computerized vector analysis. Instead, they relied on geometric rules of thumb passed down through guild traditions.

To the untrained eye, a pinnacle is just a canvas for elaborate stone carving, often adorned with gargoyles, floral motifs, and statues of saints. But every ounce of that carved stone serves a strict mechanical purpose. The more ornate and heavy the pinnacle, the safer the building.[2]

The Cathedral of Notre-Dame de Paris, begun in 1163, provides a perfect case study. Its early flying buttresses were relatively heavy and thick, requiring massive, blocky pinnacles to redirect the forces. As the Gothic style evolved, builders pushed the limits of this equation.[3]

By the time the High Gothic period reached its peak at Beauvais Cathedral in 1225, the vaults were pushed to a staggering height of 48 meters. To handle the extreme lateral thrust, the flying buttresses became thinner and more stacked, while the pinnacles grew correspondingly taller and heavier.

When the Ballast Fails

The critical nature of this vertical ballast becomes terrifyingly clear when it is compromised. If a pinnacle is removed or severely damaged during a storm or earthquake, the thrust line immediately shifts outward. The pier begins to bow, and the mortar joints crack.[1]

During the 1990s restoration of several French cathedrals, engineers used laser scanning to measure the exact deformation of the exterior piers. They found that even minor weathering, which slowly reduces the mass of the pinnacles over centuries, causes measurable outward leaning in the main structure.

Modern masonry conservators must carefully calculate the exact weight of any replacement stone. If a 19th-century restoration replaced a dense limestone pinnacle with a lighter, more porous material, the loss of vertical ballast could slowly destabilize the entire bay.[3]

This delicate balance of forces explains why Gothic cathedrals are so sensitive to structural shocks. The entire building is a dynamic system of opposing pressures, held in equilibrium only by the precise distribution of deadweight across its highest points.[2]

The Ultimate Architectural Irony

The mechanics of the pinnacle reveal the ultimate irony of Gothic architecture. The style is universally celebrated for its visual lightness, its soaring verticality, and its apparent defiance of gravity. It looks as though it is trying to float away.[1]

Yet, that illusion of weightlessness is entirely dependent on the strategic application of crushing, earth-bound mass. The highest, most heaven-reaching elements of the cathedral are actually the heaviest anchors holding the entire breathtaking illusion together.[1]
