The Mechanics of the Skyscraper: How Structural Systems Manage Wind and Seismic Loads

Stand at the top of a 50-story tower during a gale, and if you pay close attention, the surface of your coffee might ripple. The building is moving. It has to. If a skyscraper were perfectly rigid, the sheer force of a 100-mph wind would snap its base like a dry twig. Instead, modern supertalls are designed to bend, swaying sometimes several feet at their peaks. It is a counterintuitive reality of modern architecture: the safest buildings in the world are the ones that yield to the elements rather than fighting them head-on.

The battle against gravity is, structurally speaking, the easy part of building high. You stack enough steel and concrete, and the ground pushes back with equal force. But as a tower climbs past 40 or 50 stories, the primary enemy shifts from vertical weight to lateral forces: wind and earthquakes. These invisible horizontal loads dictate almost everything about how a modern skyscraper is engineered, shaping the skeleton hidden behind the sleek glass facades that define our urban skylines.[3]

Wind acts on a skyscraper like a giant, invisible hand trying to push it over. The higher you go, the harder it pushes, thanks to the lack of ground-level friction. This creates what structural engineers call "overturning moments" and "base shear." If you have ever held a long pole upright in a strong breeze, you have felt the immense leverage that wind can exert on a tall, slender object. Now scale that pole up to 800 feet and wrap it in glass.

Enter the International Building Code (IBC). Chapter 16 of the 2021 IBC dictates exactly how much a building is legally allowed to move under these extreme forces. For seismic design, the allowable story drift—how far one floor can move relative to the floor below it—is typically capped at 0.020 times the story height. For a standard 12-foot floor, that means it can only shift about 2.8 inches laterally. Across 50 stories, that adds up, but it keeps the building from tearing itself apart.[4]

To meet these strict limits without turning the building into a solid, windowless block of concrete, structural engineers have evolved a hidden anatomy of lateral load-resisting systems. The most basic of these is the rigid frame, which consists of columns and beams bolted or welded tightly together to resist bending. For decades, this was the standard way to build, relying on the sheer mass of the steel to keep the building upright.[2]

But rigid frames lose their efficiency as buildings push past 30 stories. The columns and beams would have to be so massive that they would eat up all the rentable floor space, rendering the project economically unviable. To solve this, engineers introduced the shear wall—a solid concrete core, usually housing the elevators and stairwells, that acts as the building's incredibly stiff spine.[2]

Even a stiff concrete core isn't enough for a 50-story tower facing a Category 4 hurricane or a magnitude 7.0 earthquake. The core will eventually bend under extreme stress. This is where the "outrigger and belt truss" system comes in, a brilliant structural concept borrowed loosely from the design of ancient sailing ships and outrigger canoes.[1][3]

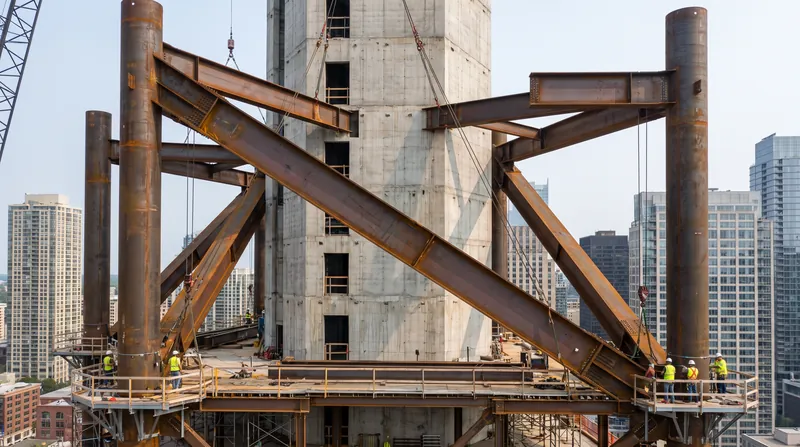

Just as an outrigger canoe uses a secondary float on a spar to prevent capsizing in rough seas, a skyscraper uses massive steel outrigger trusses to tie the central core to the perimeter columns. When the wind pushes the building, the core tries to bend, but the outriggers engage the massive perimeter columns, turning them into giant tension and compression anchors. The windward columns are pulled up, while the leeward columns are pushed down.[1]

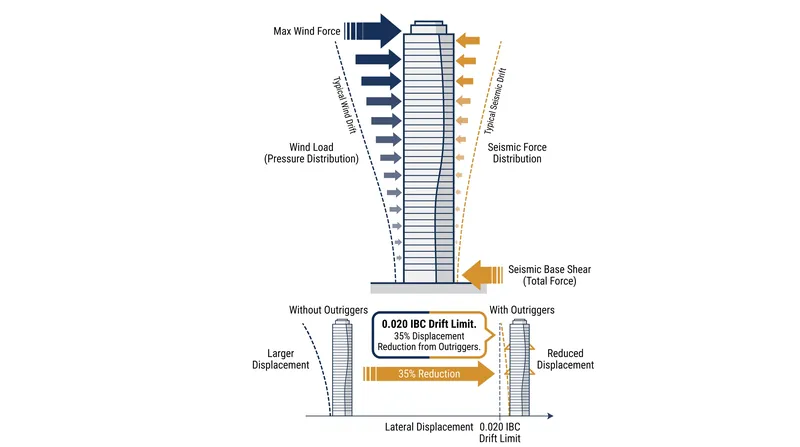

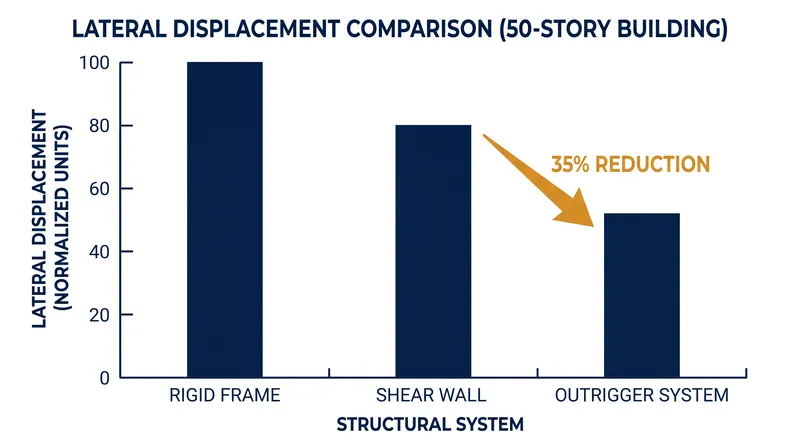

A recent parametric study on 50-story high-rises demonstrated just how effective this system is in practice. By analyzing outrigger systems under varying soil conditions, researchers found that these trusses can reduce lateral displacement by up to 35% compared to a standalone core. It is a massive leap in structural efficiency that allows buildings to go taller without widening their base.[1]

This 35% reduction is often the magic number in structural engineering. It is the exact margin needed to take a swaying, non-compliant tower and bring it within the IBC's strict 0.020 drift limit. Without outriggers, engineers would have to double the thickness of the concrete core, sacrificing millions of dollars in usable real estate just to keep the building from swaying too far in a storm.[1][4]

The belt truss acts as a literal belt cinched tightly around the building's exterior, usually hidden within a mechanical floor. It connects all the perimeter columns together so they act as a single, unified three-dimensional tube rather than a series of individual toothpicks. When the outriggers transfer the load from the core to the perimeter, the belt truss ensures that every column shares the burden equally.[2]

But wind isn't the only lateral force keeping engineers awake at night. Earthquakes introduce an entirely different kind of chaos into the structural equation. While wind applies a sustained, pushing load primarily at the top of the building, seismic waves shake the foundation, sending whiplash-inducing vibrations traveling up the structure from the ground.[3]

The IBC requires buildings in high seismic zones to be designed not just for raw strength, but for ductility—the ability to deform and stretch without collapsing. The building must absorb the earthquake's violent energy, often by allowing certain non-critical structural elements, like specific beam connections, to yield or crack. This controlled damage protects the main load-bearing columns from catastrophic failure.[4]

The soil beneath the building drastically changes this seismic math. The IEJSE study highlights that softer soils can amplify seismic waves, changing the resonant frequency of the ground. If the ground shakes at the exact same natural frequency as the building sways, the structure can enter a state of resonance, swaying more violently with each passing wave. Engineers must tune the stiffness of the outriggers to ensure the building's frequency never matches the soil's.[1]

Beyond the internal skeleton, engineers increasingly use aerodynamics to fight wind loads before they even hit the structure. If you look at modern supertalls, they rarely have flat, blocky tops like the skyscrapers of the 1970s. Instead, they taper, twist, feature rounded corners, or include large empty voids near the crown.

These architectural quirks are not just for aesthetics; they are designed to disrupt a phenomenon known as "vortex shedding." When wind hits a flat, wide facade, it creates organized, swirling vortices on the leeward side of the building. If these vortices detach in a rhythmic pattern, they can cause the building to vibrate violently side-to-side. Twisting the facade or adding voids breaks up these vortices, rendering the wind chaotic and harmless.

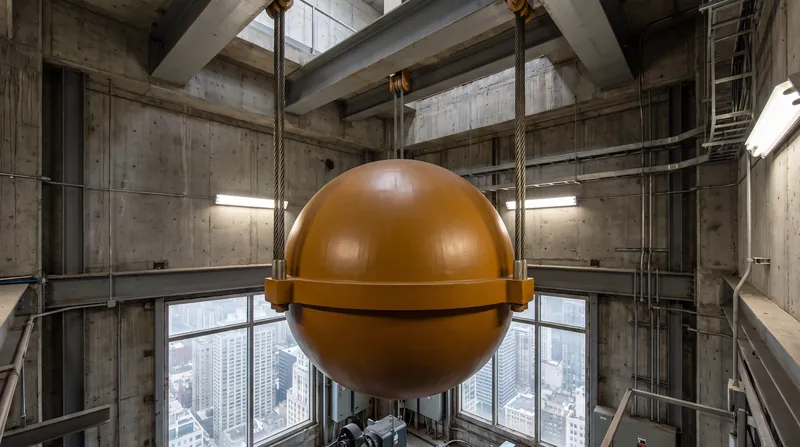

Finally, there is the active defense mechanism: the Tuned Mass Damper (TMD). This is essentially a massive pendulum—sometimes a solid steel sphere weighing hundreds of tons—suspended by cables near the very top of the building. It is the ultimate shock absorber for a skyscraper.

When the wind pushes the building to the right, the pendulum's massive inertia keeps it swinging to the left, counteracting the sway. It doesn't stop the building from moving entirely, but it drastically slows the acceleration of the sway, ensuring that the people working or living in the penthouse don't get seasick during a winter storm.

The evolution of these systems—from simple rigid steel frames to complex outriggers, belt trusses, aerodynamic shaping, and tuned mass dampers—represents a profound triumph of human ingenuity over the raw, invisible forces of nature. We have learned to build structures that dance with the wind rather than fighting it.[2][3]

As cities grow denser and the economic demand for vertical space increases, the invisible mechanics of the skyscraper will only become more sophisticated. The next generation of supertalls will rely on even smarter materials and active structural systems, allowing us to live and work safely in the clouds, entirely oblivious to the engineering miracles keeping our coffee perfectly still.
