Gravity and Geometry: How Hoop Stress and Thrust Lines Keep Historical Domes Standing

In 2016, the International Journal of Masonry Research and Innovation published a finite element thrust line analysis that fundamentally shifted how engineers view historical domes. Instead of treating these massive stone structures as static weights, the three-dimensional models revealed a dynamic, ongoing battle between gravity and geometry. The stone is not simply resting; it is actively pushing.[3]

Stand beneath the oculus of the Pantheon, and you are looking at a 1,900-year-old math problem that is constantly trying to tear itself apart. A dome is essentially a series of arches rotated in a circle, and like any arch, it wants to flatten out. The stones push down, but the curve forces that energy outward toward the walls.

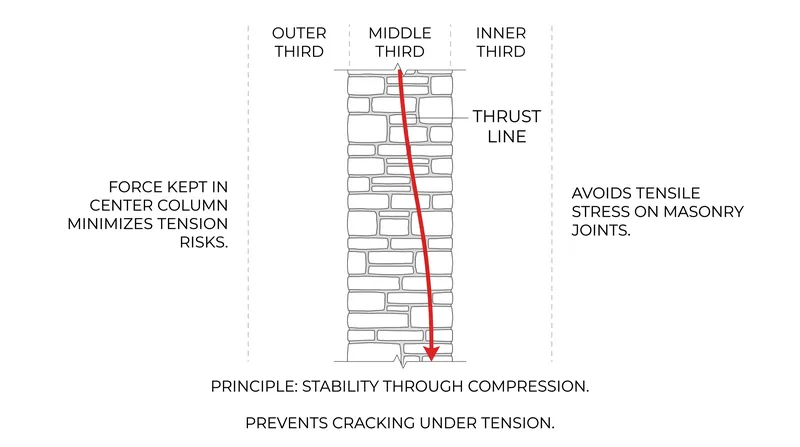

This outward push is governed by the thrust line—an invisible pathway of compressive force traveling through the masonry down to the foundations. As the Auroville Earth Institute notes in its stability guidelines, "the line of thrust must remain within the middle third of the section." If it drifts too close to the inner or outer edge, the stone begins to experience tension.[1]

Masonry is exceptionally strong when squeezed, but notoriously weak when pulled. When the thrust line exits that crucial middle third, the mortar joints separate, and the structure begins to hinge. The building must either find a new geometric equilibrium or collapse.[1]

Compounding the thrust line is hoop stress, the horizontal force acting along the circular rings of the dome. Near the crown, these rings squeeze tightly together in hoop compression. But lower down, the geometry forces the rings to stretch, creating hoop tension.

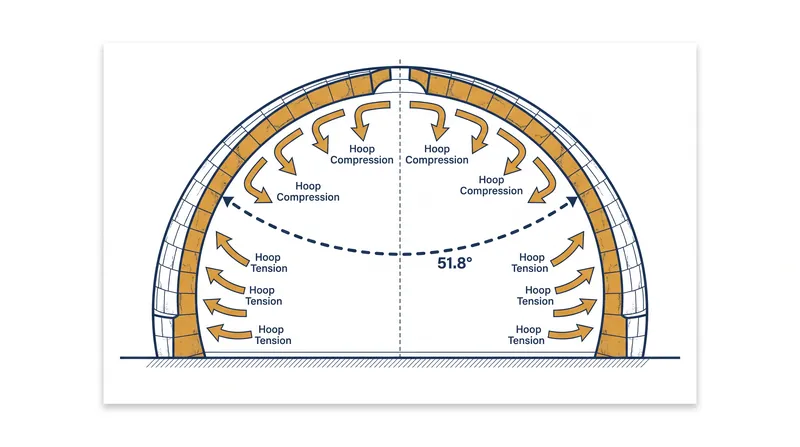

A 2019 analysis published via ResearchGate on the geometry of crack-free spherical domes pinpoints the exact mathematical boundary of this transition. In a perfectly spherical dome of uniform thickness, hoop compression turns into hoop tension precisely 51.8 degrees down from the crown.[8]

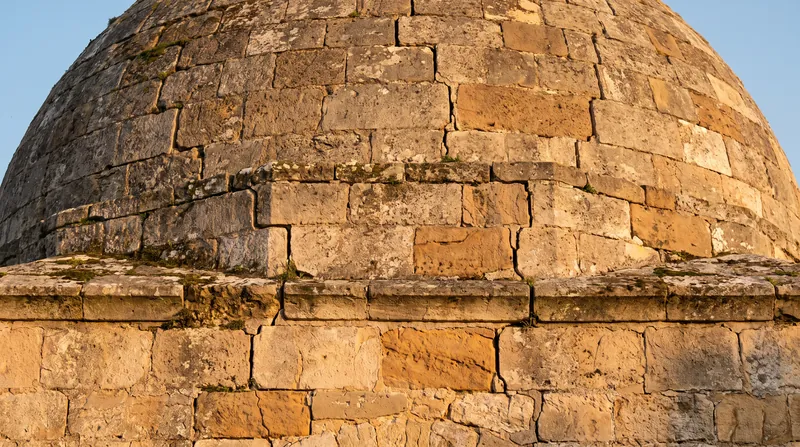

Below that 51.8-degree mark, the dome is actively trying to burst outward. Because stone cannot withstand this stretching, historical domes almost universally crack at their bases. These meridional cracks run vertically up the lower sections of the shell, visible to anyone who knows where to look.[8]

Counterintuitively, these cracks do not mean the dome is failing. As detailed in the Proceedings of the Institution of Civil Engineers, the equilibrium of cracked masonry domes is a recognized structural state. Once the base cracks, the dome simply stops acting like a continuous shell and begins acting like a circular array of independent arches leaning against each other.[7]

Historical builders understood this outward thrust intuitively, even without finite element analysis. Roman engineers backed the lower sections of the Pantheon with massive, heavy step-rings to force the thrust line downward. Renaissance architects took a different approach, wrapping iron chains around the base of domes like St. Peter's Basilica to physically contain the hoop tension.

Today, researchers use advanced equilibrium analysis, like the models developed at MIT, to assess how these historical interventions are holding up centuries later. The models show that while iron chains corrode and stretch, the fundamental geometry of the cracked dome remains remarkably stable as long as the abutments do not yield.[2]

The preservation landscape changed significantly in 2006, when Construction and Building Materials published research on reducing lateral thrust using Fiber Reinforced Polymer (FRP) composites. This introduced a modern solution to an ancient geometric problem.[4]

Instead of adding massive weight to the exterior, engineers can now apply thin bands of carbon or glass fiber to the tension zones. These composites possess immense tensile strength, effectively acting as modern, unyielding iron chains that do not rust and add virtually no weight to the structure.[4]

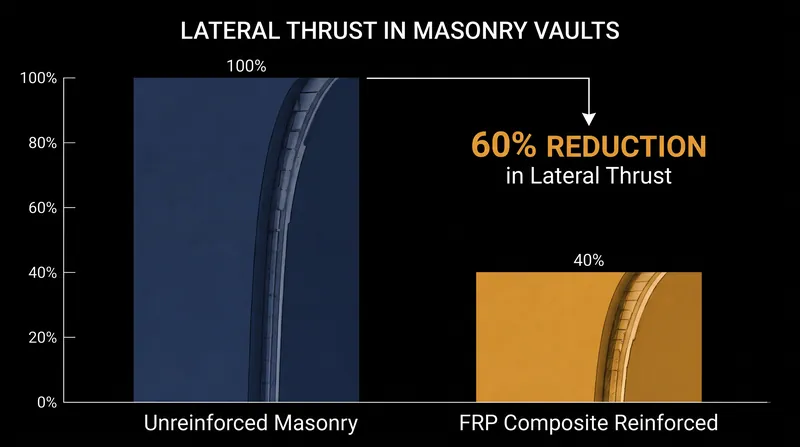

Applying FRP composites can reduce the lateral thrust of a masonry vault by up to 60 percent. This intervention pulls the thrust line safely back into the middle third of the masonry core, stabilizing the structure without altering its historical profile.[4]

The structural performance of historical shells, as evaluated by HISTRUCTURAL, relies entirely on this delicate balance. Whether managed by the sheer mass of Roman concrete, the iron chains of the Renaissance, or the carbon fiber of the 21st century, the goal remains identical: keep the thrust line inside the stone.[5]

Studio Matrx notes that these principles apply equally across arches, vaults, and domes. The geometry dictates the forces, and the materials must be deployed to manage them. Understanding this allows architects to design modern vaulted spaces that require a fraction of the concrete used in conventional flat-slab construction.[6]

The integration of FRP composites and finite element modeling will dictate the preservation schedule for the next century of architectural heritage. By mapping the exact degree of hoop tension and applying targeted tensile reinforcement, engineers can ensure these ancient spans remain in equilibrium long after their original builders' intuitive models have been validated by modern mathematics.[3][4]
