How Inverting a Hanging Chain Keeps Masonry Arches in Pure Compression

If you want to build a stone arch that will never collapse, you simply hold a chain by its ends, let it hang, and freeze that exact curve upside down. This inverted shape perfectly aligns gravity with the stone's center of mass, eliminating the bending forces that tear masonry apart.[1]

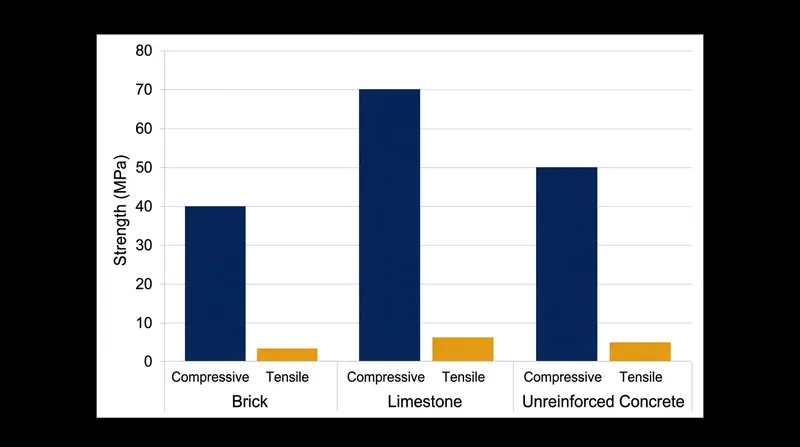

The mechanism relies on a fundamental quirk of building materials. Stone and brick possess immense compressive strength, meaning they can support massive weight pushing down on them. However, their tensile strength—their ability to resist being pulled apart—is notoriously weak, often measuring less than ten percent of their compressive capacity.[2]

When an arch takes a traditional semi-circular shape, the downward force of gravity does not travel neatly through the center of the stones. Instead, the load pushes outward at the haunches, creating a bending moment. This bending forces the inner edge of the arch to compress while pulling the outer edge apart in tension.

To prevent a semi-circular arch from cracking and collapsing under this tension, architects must add massive external bulk. This is why Romanesque cathedrals rely on tremendously thick walls, and why Gothic structures require elaborate flying buttresses to push the escaping thrust back into the structural core.[2]

The Physics of Falling Together

A hanging chain solves this problem automatically. Because a flexible chain has absolutely no rigidity, it cannot support a bending moment. It can only endure tension. When gravity pulls the chain downward, it naturally assumes a specific mathematical curve—a catenary, from the Latin word for chain—where every link pulls perfectly in line with its neighbors.

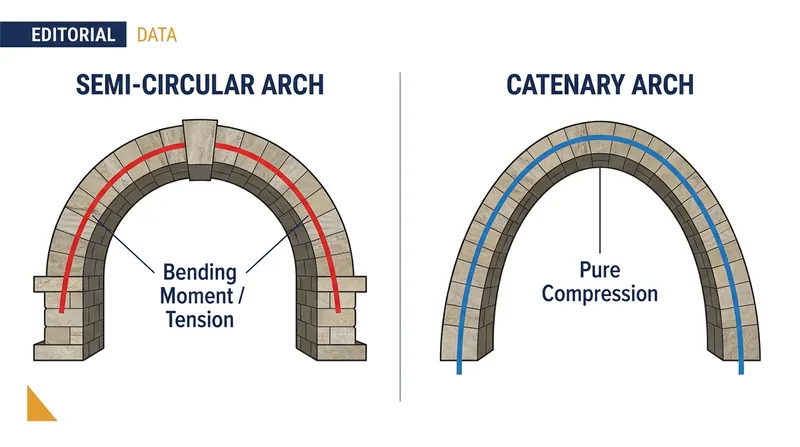

If you freeze that catenary curve and flip it upside down, the physics invert flawlessly. The pure tension of the hanging chain becomes the pure compression of the standing arch. The thrust line, which maps the path of gravitational force, remains perfectly centered within the masonry blocks from the apex down to the ground.[1]

Because the thrust line never strays outside the middle third of the stone blocks, the arch experiences zero bending moments. No part of the stone is being pulled apart, meaning no tensile stress develops. The structure stands entirely by the stones pushing against one another, requiring no external buttressing whatsoever.[2]

Hooke’s Hidden Anagram

The English polymath Robert Hooke first formalized this principle in 1675, though he was so fiercely protective of his intellectual property that he refused to publish it plainly. Instead, he appended a cryptic anagram to a book on helioscopes: abcccddeeeeeefggiiiiiiiiillmmmmnnnnnooprrsssttttttuuuuuuuux.

Hooke died before revealing the solution, leaving his executor to decipher the string of letters in 1705. The solution was a Latin phrase: Ut pendet continuum flexile, sic stabit contiguum rigidum inversum.

"As hangs a flexible cable, so, inverted, stand the touching pieces of an arch," the Royal Society translation reads.

While Hooke solved the physics on paper, it took another two centuries for an architect to fully weaponize the concept in three dimensions. In 1898, the Spanish architect Antoni Gaudí began designing the church of Colònia Güell near Barcelona, discarding traditional drafting tools entirely.

Gaudí’s Upside-Down Workshop

Gaudí constructed a massive, inverted model of the church using strings suspended from the ceiling. To simulate the weight of the masonry, he hung small canvas bags filled with birdshot from various points along the strings. Gravity did the computational work, pulling the strings into a complex network of weighted catenary curves.

By photographing the hanging model and turning the images upside down, Gaudí obtained a perfect blueprint for a building in pure compression. He later scaled this exact method to design the soaring, organic vaults of the Sagrada Família, achieving unprecedented heights without relying on the heavy buttressing that defined earlier European cathedrals.

A true catenary assumes a uniform weight along the length of the curve. However, real buildings rarely have uniform weight; an arch might carry a heavier load at its base than at its peak. When the weight distribution changes, the ideal curve changes with it, creating what engineers call a funicular polygon.

The Modern Weighted Catenary

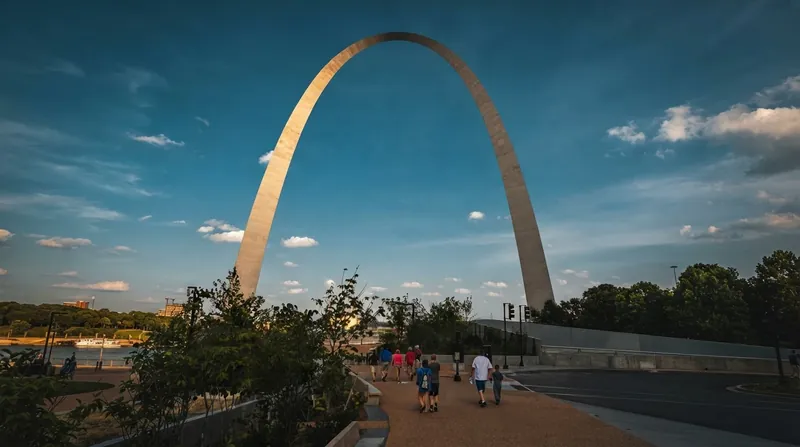

The most famous application of this modified curve sits on the banks of the Mississippi River. When architect Eero Saarinen and structural engineer Hannskarl Bandel designed the Gateway Arch in St. Louis in the 1960s, they did not use a simple catenary.

Because the stainless steel and concrete legs of the 630-foot monument are much thicker at the base than at the apex, the center of mass shifts downward. Bandel calculated a flattened, weighted catenary equation to accommodate this variable thickness, ensuring the massive structure remained in pure compression.

Today, the principle Hooke hid in an anagram remains the gold standard for masonry and concrete shell construction. Modern structural engineering software uses dynamic relaxation algorithms to simulate exactly what Gaudí did with strings and birdshot, finding the optimal form for complex roof spans.[2]

Why It Still Matters

By designing structures that respect the natural flow of gravitational forces, contemporary engineers can drastically reduce the amount of material required. A concrete shell shaped as a pure compression vault can span massive distances while remaining just a few inches thick, saving thousands of tons of carbon-intensive cement.

The inverted hanging chain proves that the most resilient architectural forms are not achieved by fighting gravity with brute force and massive walls. Instead, the most enduring structures survive by listening to gravity, adopting the exact shapes that the earth's pull dictates.[1]
