The Mechanics of Digital Capture: How the Bayer Filter and Demosaicing Convert Light into a Color Image

You pull your smartphone from your pocket, frame a sunset, and tap the glass. In that fraction of a second, you trust that the device has captured the exact hues of the sky, the subtle gradient of the clouds, and the deep shadows of the foreground. But your camera is fundamentally colorblind. The silicon sensor sitting behind the lens has no concept of red, green, or blue; it is merely a grid of microscopic buckets, and its only job is to count how many photons fall into each one.[8]

To extract a color image from this monochromatic photon-counting exercise, engineers had to devise a way to trick the sensor into seeing color. The solution, which still powers almost every digital camera on Earth today, is an elegant piece of optical engineering that looks less like a high-tech circuit and more like a microscopic stained-glass window.[7][8]

In 1976, an Eastman Kodak scientist named Bryce Bayer patented a specific color filter array (CFA) designed to be placed directly over the image sensor. Bayer's concept was simple but revolutionary: if you place a tiny colored filter over each individual pixel, you can restrict that pixel to only collect light of that specific color.[1]

However, Bayer didn't just divide the colors evenly. He recognized that human vision is not democratic. Our eyes are significantly more sensitive to green light, which dictates our perception of luminance, sharpness, and detail. To mimic this biological quirk, Bayer designed his grid so that 50 percent of the filters were green, while red and blue filters each made up 25 percent.[1][2]

This means that when you shoot a 12-megapixel photograph, your camera does not actually capture 12 million full-color pixels. It captures 6 million green pixels, 3 million red pixels, and 3 million blue pixels. The raw data coming off the sensor is a dark, checkerboard mosaic of primary colors, completely unrecognizable as a photograph.[2][7]

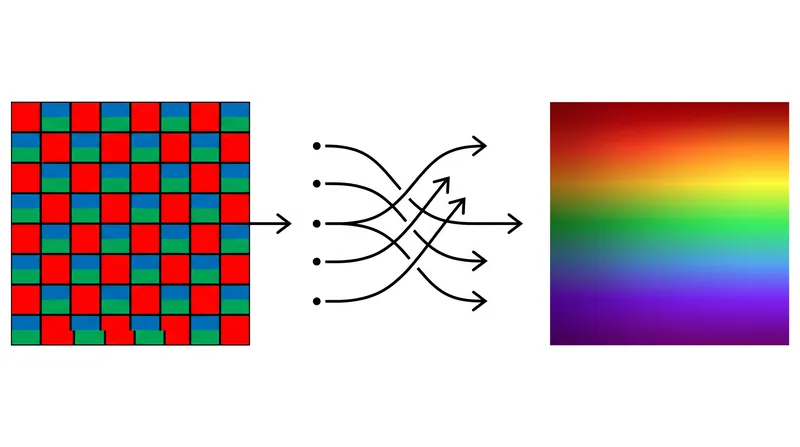

Transforming this mosaic into a seamless, full-color image requires a computational heavy lift known as demosaicing. For every single pixel on the sensor, the camera's image processor must mathematically guess the two missing colors. A pixel sitting under a red filter knows exactly how much red light hit it, but the camera must calculate the green and blue values based on the surrounding pixels.[4][7]

In the early days of digital photography, demosaicing relied on relatively simple bilinear interpolation. The algorithm would look at the immediate neighbors of a pixel and simply average their values. If a red pixel was surrounded by green pixels with a value of 100, the algorithm assumed the green value for that red pixel was also 100.[3]

While computationally cheap, simple averaging creates severe visual artifacts. When a photograph contains a hard edge—like a dark tree branch silhouetted against a bright white sky—bilinear interpolation blurs across that boundary. This results in "zippering," where jagged, false-color fringes appear along the edges of objects because the algorithm incorrectly blended the dark and light pixels.[3][4]

To solve this, mathematicians and imaging scientists developed directional filtering. Instead of blindly averaging in all directions, modern demosaicing algorithms first analyze the raw data to detect edges and gradients. The software effectively looks at the mosaic and asks, "Is this a vertical line, a horizontal line, or a flat texture?"[5]

If the algorithm detects a sharp vertical edge, it restricts its interpolation to the vertical axis. By only borrowing color data from pixels along the same edge, the algorithm preserves the sharpness of the boundary and prevents colors from bleeding across the line. This directional weighting is what gives modern digital images their crisp, artifact-free appearance.[5][8]

High-end cinema cameras, like those manufactured by RED, take this a step further. They utilize massive sensors and proprietary demosaicing algorithms that prioritize spatial resolution and color fidelity over processing speed, often offloading the demosaicing process to powerful desktop computers during post-production rather than doing it in-camera.[2]

Conversely, the smartphone in your pocket has to perform this mathematical miracle in milliseconds, often while juggling multiple frames at once. The physical constraints of smartphones—tiny lenses and microscopic pixels—have forced a radical evolution in how the Bayer array is utilized.[8]

Enter the "Quad Bayer" sensor. Instead of alternating colors pixel by pixel, a Quad Bayer array groups four pixels of the same color together in a 2x2 block. While this might seem like a step backward for resolution, it unlocks a powerful new technique: multi-frame temporal interpolation.[6]

Because the pixels are grouped, the camera can assign different exposure times to adjacent pixels of the same color simultaneously. Two green pixels in a block might capture a fast exposure to preserve highlight detail in the sky, while the other two capture a long exposure to pull detail out of the shadows.[6][8]

The demosaicing algorithm then merges these different exposures in the color difference domain, synthesizing a single, high-dynamic-range image. This is why modern smartphones can take clear, vibrant photos in near-total darkness—a feat that would be physically impossible with a traditional sensor layout.[6]

Ultimately, the mechanics of digital capture remind us that modern photography is a hybrid art form. It is half optics and half mathematics. The next time you snap a photo, you aren't just opening a shutter; you are triggering a cascading statistical consensus, a half-century-old Kodak invention married to modern computational probability, all resolving before you even lower your screen.[1][8]
