How Periodic Limestone Benches Filter Low-Frequency Noise to Project Speech Across Epidaurus

When Polykleitos the Younger designed the theater of Epidaurus in the fourth century BCE, he had only geometry and limestone to work with. The architect could not amplify an actor’s voice, but he could control the environment it traveled through. Today, when a performer speaks in the orchestra, 14,000 spectators can hear them without a microphone.

For centuries, the clarity of sound at Epidaurus was attributed to prevailing winds or the masks worn by Greek actors. Modern visitors still drop coins on the central stage to marvel at the acoustic reach. Yet the true mechanism remained a mystery until researchers looked past the stage and examined the audience's seats.

The secret lies in the precise corrugation of the seating bank. The 55 rows of limestone benches do not just hold people; they actively manipulate sound waves. The entire structure functions as a massive, unpowered noise-canceling headphone, stripping away the specific frequencies that make it hard to hear.

The 500 Hertz Threshold

In 2007, mechanical engineers Nico Declercq and Cindy Dekeyser from the Georgia Institute of Technology published a landmark study in the Journal of the Acoustical Society of America. They subjected the theater’s geometry to ultrasonic waves and numerical simulations. Their findings shifted the focus from the slope of the hill to the periodic ridges of the stone.[1]

"When I first tackled this problem, I thought that the effect of the splendid acoustics was due to surface waves climbing the theater with almost no damping," Declercq noted in his research. He expected the stone simply reflected sound efficiently. The data revealed something far more sophisticated happening in the crevices.[1]

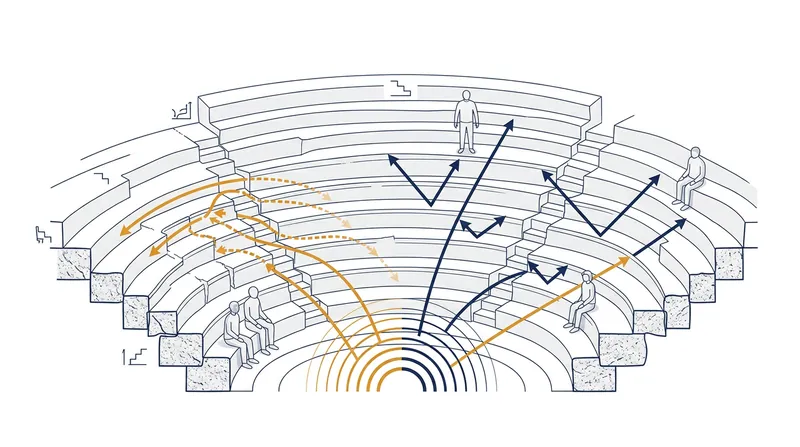

"While the voices of the performers were being carried, I didn't anticipate that the low frequencies of speech were also filtered out to some extent," Declercq said. The researchers discovered that the stepped limestone acts as a passive high-pass filter. It traps and suppresses acoustic frequencies below 500 hertz.[1]

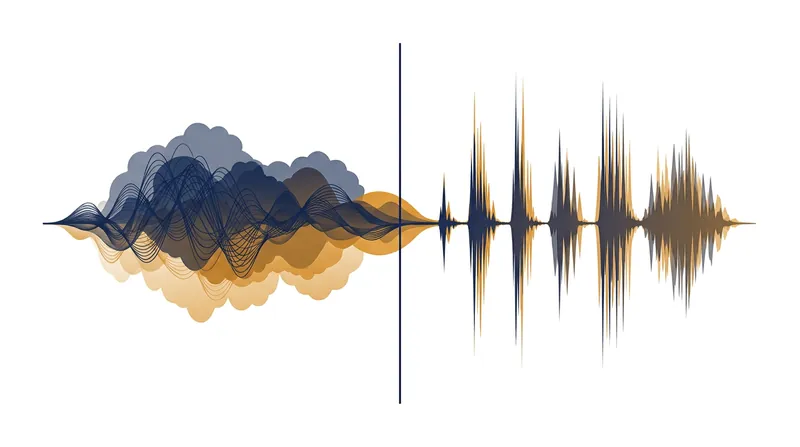

That 500-hertz threshold is not arbitrary. It perfectly matches the frequency band of ambient nuisance noise. The rustling of clothing, the murmur of a 14,000-person crowd, and the low rumble of the wind all fall below 500 hertz. By trapping these sounds, the theater effectively mutes the audience.

Preserving the Consonants

While the low frequencies are swallowed by the stone grid, frequencies above 500 hertz bounce off the hard limestone and travel up the cavea. This higher band carries the sharp consonants of human speech. Consonants provide the intelligibility of language, allowing a whisper to remain distinct 60 meters away.

The physical dimensions of the seats dictate this cutoff. Sound travels at roughly 343 meters per second in 20-degree Celsius air. A 500-hertz sound wave has a wavelength of about 68.6 centimeters. This aligns directly with the physical depth of the limestone benches, turning each row into a tuned interference trap.[4]

The researchers confirmed this by testing the acoustics across different seasons. They wanted to see if variations in air density and temperature between summer and winter altered the filtering effect. The data showed that the acoustic trap remained remarkably stable, maintaining its clarity regardless of the weather.[1]

This filtering effect presents a psychoacoustic puzzle. If the theater traps all sound below 500 hertz, it must also strip the low, resonant frequencies from the actors' voices. A baritone actor should sound thin and tinny to someone sitting in the back row, yet audiences report hearing rich, natural voices.

The answer lies in the human brain rather than the architecture. Listeners experience a phenomenon known as virtual pitch. When the brain hears the upper harmonics of a human voice, it automatically reconstructs the missing fundamental frequencies. The audience literally fills in the acoustic gaps themselves.

Trial, Error, and Stone

The Hellenic Institute of Acoustics has measured the speech intelligibility at Epidaurus at between 85 and 95 percent, even in the furthest seats. This level of clarity rivals modern auditoriums equipped with digital signal processing. The ancient Greeks achieved it entirely through passive material properties.[3]

Whether Polykleitos the Younger understood the physics of acoustic diffraction remains a subject of debate among historians. The Greeks possessed a deep philosophical appreciation for harmony and proportion, as documented by the Roman architect Vitruvius in the first century BCE. However, they lacked the tools to measure sound frequencies.[2]

The perfection of Epidaurus likely emerged from generations of architectural trial and error. Earlier theaters provided a baseline, and builders incrementally adjusted the pitch and depth of the seating rows. Epidaurus represents the apex of this evolutionary process, locking the optimal acoustic geometry into solid stone.

Attempts to replicate the theater's acoustics in later eras frequently failed. Roman builders and Renaissance architects copied the semicircular layout and the steep slope, but they often substituted wood for limestone. Wood absorbs high frequencies rather than reflecting them, destroying the delicate acoustic balance that makes Epidaurus work.

Even today, modern amphitheaters struggle to match the clarity of the ancient site without relying on electronic amplification. Modern venues prioritize padded seating for comfort, which dampens the high-frequency reflections necessary for unamplified speech. The hard, unforgiving limestone is essential to the acoustic trick.

A Blueprint for Modern Venues

The 2007 Georgia Tech study suggested that the principles discovered at Epidaurus could influence modern acoustic design. "Understanding and application of corrugated surfaces as filters rather than merely as diffuse scatterers of sound, may become imperative in the future design of modern theaters," the researchers wrote.[1]

Instead of relying solely on electronic equalizers to clean up audio signals, architects could build physical filters directly into the walls and ceilings of a space. A carefully calculated corrugated surface could passively strip out the rumble of traffic or the hum of an air conditioning unit.

The geometry of the cavea also prevents the sound from decaying too quickly. The main bulk of the reflected sound energy arrives at the listener's ears within 40 milliseconds of the direct signal. As far as the human brain is concerned, this tight grouping reinforces the original sound rather than creating a distracting echo.[3]

For now, the theater of Epidaurus stands as a monument to the durability of good design. It has remained acoustically functional for more than 2,000 years. The limestone benches continue to sit under the Greek sun, waiting to filter the wind and project the next spoken word.
