How Unattached Tiers and a Hanging Pillar Keep Japanese Pagodas Standing Through Earthquakes

When a modern skyscraper like Taipei 101 faces a tectonic rupture, it relies on a 660-tonne steel pendulum suspended near its roof to counteract the sway. The engineering is highly calibrated and entirely dependent on industrial steel. Yet, across the Sea of Japan, wooden towers have survived the exact same violent seismic forces for over a millennium.[1]

The difference is that the traditional Japanese pagoda achieved this without a single rigid joint, using only timber, gravity, and a profound understanding of how to let a building dance. Japan is one of the most seismically active nations on Earth, experiencing roughly 1,500 earthquakes a year.[1]

Despite this relentless tectonic assault, historical records show that only two of the country’s multi-story wooden pagodas have collapsed due to seismic activity in the last 1,400 years. The 31.5-meter-tall five-story pagoda at Horyu-ji, built in the 7th century, remains the world’s oldest surviving wooden structure.[2]

It has shrugged off earthquakes—like the magnitude 6.9 Kobe earthquake in 1995—that leveled modern concrete buildings in the surrounding region. For decades, Western architects assumed these towering structures must possess incredibly deep foundations or massive, rigid internal bracing to stay upright.[1][2]

The illusion of the central spine

The reality is far stranger, and deeply counterintuitive to classical Western engineering. A traditional Japanese pagoda is not bolted to the earth, nor are its floors bolted to one another. It is essentially a stack of heavy wooden boxes resting on top of each other, held together primarily by their own weight.[1][3]

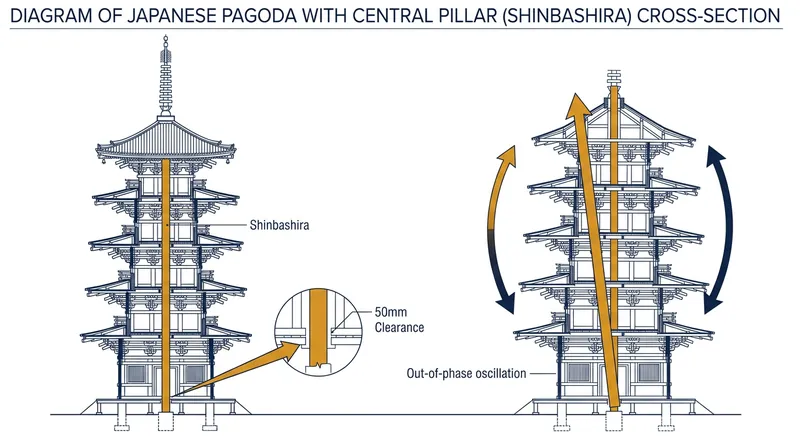

At the core of this survival mechanism is the shinbashira, a massive central wooden pillar that runs the entire height of the structure. But unlike the spine of a vertebrate or the core of a modern high-rise, this pillar rarely supports the weight of the building.[2]

In many pagodas, it does not even touch the ground, suspended instead by chains from the roof like a colossal, hanging pendulum. The shinbashira is perhaps the most misunderstood architectural element in traditional Japanese building, as observers naturally assume it is a load-bearing column.[2]

"The central pillar is actually structurally independent from the surrounding timber frame," notes Dr. Kenjiro Suzuki in the Journal of Asian Architecture and Building Engineering. "In many cases, there is a visible clearance of 50 millimeters between the pillar and the floorboards it passes through."[2]

This independence is the key to its seismic function. When an earthquake strikes, the ground moves violently back and forth, sending shockwaves up through the building. Because the shinbashira is either suspended or resting lightly on a stone base, it sways at a completely different frequency than the rest of the pagoda.[2]

As the outer structure whips to the left, the massive central pillar is often swinging to the right. This out-of-phase oscillation acts as a massive dampening mechanism. The pillar collides gently with the inner edges of the floors as they pass each other, transferring kinetic energy.

A stack of unattached hats

It is the exact same principle as the tuned mass damper in Taipei 101, executed in cypress wood centuries before the physics of mass damping were formally articulated. The shinbashira absorbs the violent kinetic energy of the earthquake and bleeds it out through these controlled collisions.[1]

"What we see in the shaking-table tests is a beautiful, chaotic synchronization," reports the National Research Institute for Earth Science and Disaster Resilience (NIED). "The pillar acts as a stabilizing anchor, not by holding the building stiff, but by constantly interrupting its momentum."

The central pillar is only half of the equation, as the rest of the pagoda's resilience comes from how the individual tiers are constructed. A traditional five-story pagoda is not a single, continuous frame. Instead, each tier is built independently and stacked on top of the one below it.[3]

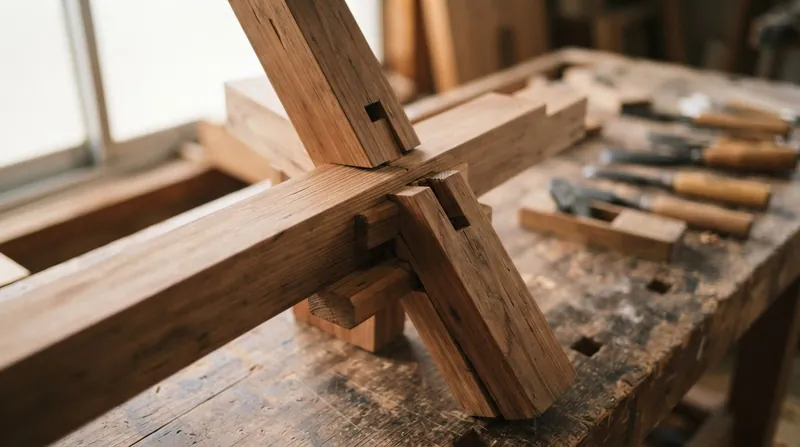

There are no iron nails, bolts, or rigid brackets holding these tiers together. They are connected entirely by complex, interlocking wooden joints—mortise and tenon connections that fit together snugly but retain a crucial degree of play. When the earth shakes, these tiers do not move as a single rigid block.[3]

Instead, they slide laterally against one another. As the first floor lurches right, the second floor might lag behind, and the third floor might be swinging left. This phenomenon, known as the "snake dance," allows the building to slither and flex in response to the seismic waves.[3]

Friction as a shock absorber

If the pagoda were built rigidly, the immense shear forces of a major earthquake would snap its wooden beams like matchsticks. By allowing the tiers to move independently, the structure avoids absorbing the full, concentrated force of the tremor.[1][3]

The heavy, overhanging tile roofs play a vital role here as well. The sheer mass of the ceramic tiles presses down on the unattached tiers, using gravity to keep the interlocking joints from slipping entirely apart. It is a delicate balance: loose enough to flex, heavy enough to hold together.[3]

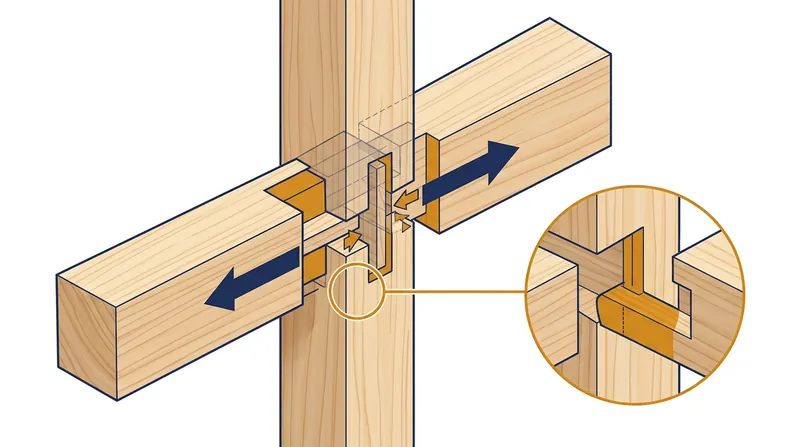

As these unattached tiers slide and twist during an earthquake, the complex wooden joints rub against one another. This is where the true genius of traditional Japanese carpentry reveals itself. The friction generated by these moving joints acts as a massive, building-wide shock absorber.[3]

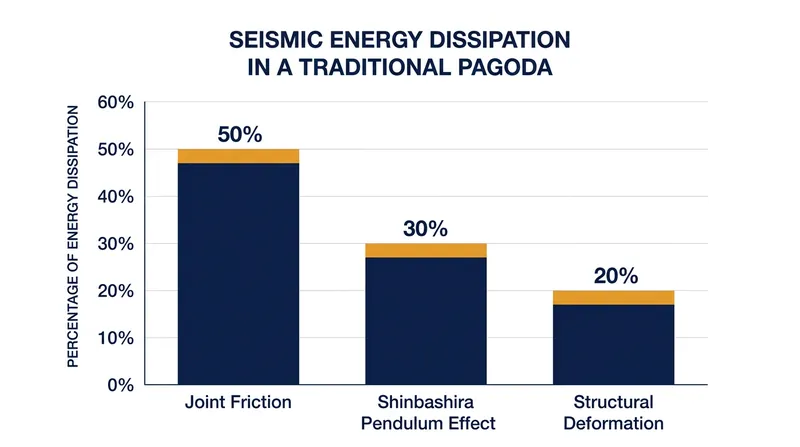

According to studies by the Architectural Institute of Japan, the friction within these interlocking timber connections can dissipate up to 50 percent of the incoming seismic energy. The wood groans, squeaks, and grinds, converting the violent kinetic energy of the earthquake into harmless heat and sound.[3]

"Rigidity is the enemy of survival in a major earthquake," explains structural engineer Yumi Takahashi in a recent AIJ retrospective. "Western architecture historically fought the earth by trying to be stronger than the tremor, while Japanese architecture survived by yielding to it."[3]

Modern engineering catches up

Because the joints are not rigidly fixed with nails, they do not suffer from the fatigue and eventual failure that plagues modern metal fasteners under repeated stress. The wood simply slides, absorbs the blow, and then settles back into its original position.[1][3]

This self-centering capability is remarkable. After a major tremor, a pagoda might be left slightly out of plumb, but it rarely collapses. The interlocking joints, having done their job of dissipating the energy, naturally guide the tiers back toward their resting state.[3]

For centuries, this traditional knowledge was passed down through generations of master carpenters, known as miyadaiku, who specialized in shrine and temple construction. They did not have computer models or advanced calculus; they had empirical observation, refining their designs after every major earthquake.[1]

Today, modern structural engineering is increasingly adopting the principles pioneered by these ancient builders. The concept of base isolation, where a building is separated from its foundation by flexible bearings to allow it to slide during a quake, is a direct conceptual descendant of the pagoda's unattached tiers.[1]

Similarly, the use of friction dampers in modern steel frames mimics the energy-absorbing joints of traditional timber architecture. Engineers are realizing that the best way to survive a catastrophic force is not to resist it, but to design a structure that can safely absorb and dissipate it.[1][3]

The five-story pagoda stands not just as a religious monument, but as a masterclass in dynamic engineering. It is a reminder that sometimes, the most advanced technological solutions are not found in new materials, but in a deeper, more observant relationship with the forces of nature.[1]
