Brake Fluid Hygroscopy: How Water Absorption Lowers the Boiling Point and Causes Pedal Fade

A common claim among vehicle owners and even some quick-lube technicians is that brake fluid is a lifetime component, requiring attention only if a leak drains the reservoir. The evidence from the Society of Automotive Engineers (SAE) and the Department of Transportation (DOT) directly contradicts this. Brake fluid is inherently hygroscopic, meaning it actively absorbs moisture from the atmosphere through microscopic pores in rubber hoses, caliper seals, and the master cylinder cap. As water infiltrates the system, it fundamentally alters the fluid's thermal properties, lowering its boiling point and introducing the risk of catastrophic pedal fade under heavy braking. For a driver navigating a steep mountain pass or towing a heavy trailer, this chemical shift is not an abstract engineering concept—it is the difference between a firm brake pedal and one that plunges uselessly to the floorboards.[1][2]

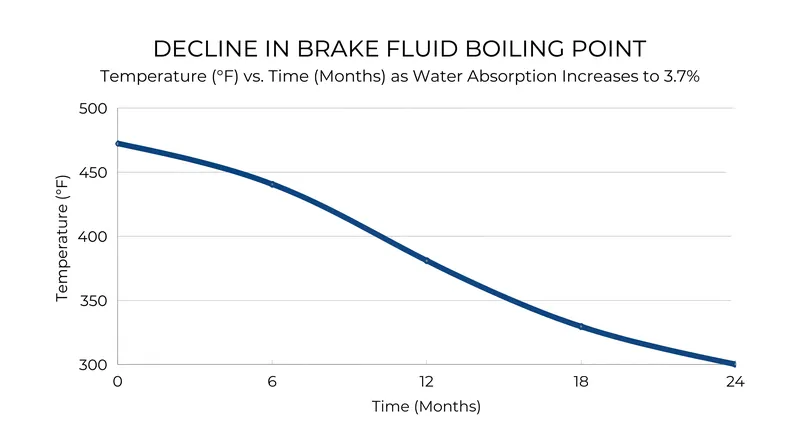

The mechanism behind this degradation lies in the chemical composition of the fluid itself. Most modern vehicles rely on glycol-ether-based fluids, specifically classified as DOT 3, DOT 4, or DOT 5.1. These formulations are designed to be non-compressible, ensuring that the exact force applied by the driver's foot is transferred directly to the brake calipers. However, their hygroscopic nature means they pull water out of the air at a rate of roughly one to two percent per year. By the time a vehicle has been on the road for two years, its brake fluid can contain up to 3.7 percent water by volume. This moisture does not pool at the bottom of the lines; it disperses evenly throughout the glycol base, fundamentally changing how the fluid reacts to heat.[4][5]

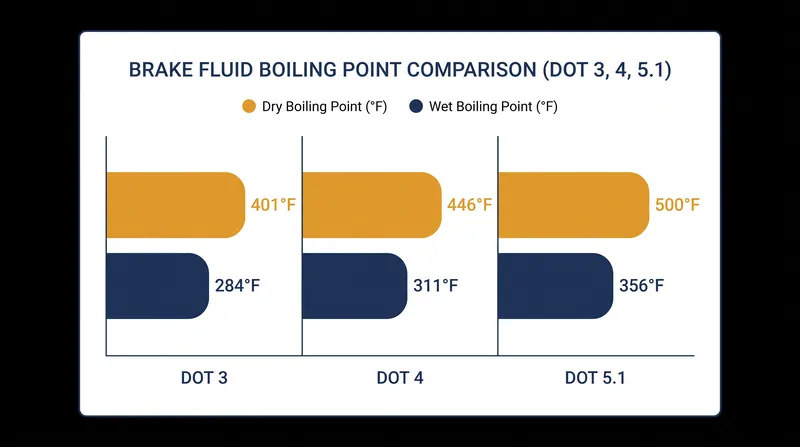

To understand the stakes, a driver must look at the two temperature ratings printed on every bottle of brake fluid: the dry boiling point and the wet boiling point. The dry boiling point represents the thermal limit of fresh, uncontaminated fluid straight from a sealed container. For a standard DOT 3 fluid, the federal minimum dry boiling point is 401 degrees Fahrenheit. The wet boiling point, however, is the metric that dictates real-world safety. It represents the fluid's boiling threshold after it has absorbed 3.7 percent water by volume. For that same DOT 3 fluid, the minimum wet boiling point plummets to just 284 degrees Fahrenheit.[3][4]

That 117-degree drop in thermal capacity is where the danger of brake fade emerges. When a vehicle is braking heavily—such as during a long descent or in stop-and-go traffic—the friction between the brake pads and the cast-iron rotors generates immense heat. This heat transfers directly through the steel backing plates of the pads, into the caliper pistons, and ultimately into the brake fluid itself. If the fluid reaches its boiling point, it undergoes a phase change, turning from a non-compressible liquid into a highly compressible gas.[3][5]

"Moisture which has been absorbed by the brake fluid can boil, releasing gas," notes the technical documentation from AutoZone regarding the mechanics of brake fade. "With this gas in your braking system, pressing the brake will simply compress the gas, instead of pushing the brake fluid to your rotors." In practical terms, when the driver presses the brake pedal, the mechanical force is wasted compressing the steam bubbles in the lines rather than clamping the brake pads against the cast-iron rotors. The pedal feels spongy, and in severe cases, it goes straight to the floor with zero braking force applied to the wheels.[3]

The automotive industry has developed higher-tier fluids to combat this exact scenario, though they come with their own maintenance trade-offs. DOT 4 fluid, which incorporates borate esters into its glycol base, boasts a higher minimum dry boiling point of 446 degrees Fahrenheit and a wet boiling point of 311 degrees Fahrenheit. This makes it the standard for modern vehicles equipped with anti-lock braking systems (ABS) and electronic stability control, which rapidly pulse the brakes and generate additional heat. However, DOT 4 absorbs moisture more aggressively than DOT 3, meaning it requires more frequent flushing to maintain its thermal advantages.[3][4]

For performance applications or heavy-duty towing, DOT 5.1 offers an even higher thermal ceiling, with a dry boiling point of 500 degrees Fahrenheit and a wet boiling point of 356 degrees Fahrenheit. Despite the similar naming convention, DOT 5.1 is a glycol-based fluid and is fully compatible with DOT 3 and DOT 4 systems. This is a critical distinction from DOT 5, which is a silicone-based fluid. Silicone is hydrophobic—it repels water rather than absorbing it—which keeps its boiling point stable over time. However, because it does not disperse moisture, any water that enters a DOT 5 system pools in the lowest points of the brake lines, leading to localized boiling and severe internal corrosion. Consequently, DOT 5 cannot be mixed with glycol-based fluids and is incompatible with modern ABS hardware.[4][5]

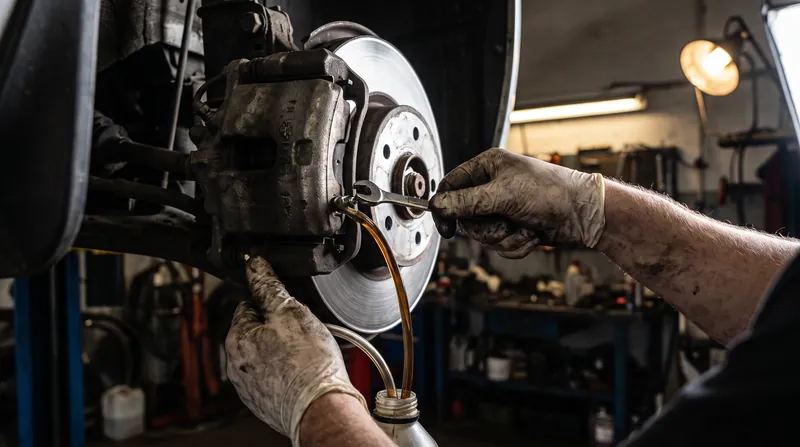

The financial and safety implications for the average vehicle owner are stark. A routine brake fluid flush typically costs between $100 and $150 at an independent mechanic, a fraction of the cost of replacing seized calipers or a rusted master cylinder. More importantly, it restores the hydraulic integrity of the braking system. The SAE J1706 standard, last updated in June 2017, explicitly outlines the performance requirements for these fluids, emphasizing that their chemical stability is paramount to vehicle safety. Ignoring this maintenance schedule does not just accelerate component wear; it leaves the driver vulnerable to a sudden and complete loss of braking power exactly when they need it most.[1][2]
