CAS Latency vs. Frequency: Quantifying the Trade-Off in DDR5 Gaming Performance

When AMD launched the Ryzen 9000 series and Intel pushed its memory controllers to their thermal limits in early 2026, the PC building community hit a hard mathematical wall: memory speed was no longer scaling linearly with gaming performance. The traditional buying logic dictated that higher megatransfer rates automatically yielded higher framerates.

But as DDR5 kits blew past 7200 MT/s, a secondary specification—Column Address Strobe (CAS) latency—began dictating actual system responsiveness. The market is now flooded with expensive, high-frequency memory kits that often perform worse than their cheaper, slower counterparts because their internal timings cannot keep pace with the processor's demands.[3]

The physics of modern memory rely on a delicate synchronization between the CPU and the RAM. A processor operates on a rhythmic electrical pulse, and every operation must align with these nanosecond-scale ticks.

"A DRAM module's CAS latency is how many 'clock cycles' it takes for the module to access a specific set of data in one of its columns to make it available to the output," explains Corsair's technical documentation. If the RAM operates at a blistering 7200 MT/s but requires 34 clock cycles to actually find the data, the processor spends valuable time idling.[4]

This delay is quantified as absolute latency, a metric that strips away marketing numbers to reveal the true speed of a memory kit. The calculation divides the CAS latency by the actual clock speed (half the megatransfer rate, due to Double Data Rate architecture) and multiplies by 1000 to yield nanoseconds. A popular 6000 MT/s kit with a CAS latency of 30 (CL30) resolves data in exactly 10.0 nanoseconds.[2][3]

Pushing the frequency higher does not guarantee a faster resolution. A 6400 MT/s kit running at CL32 also resolves in exactly 10.0 nanoseconds. The memory transfers data faster once the connection is open, but it takes slightly longer to open the connection in the first place. When buyers pay a premium for a 7200 MT/s CL34 kit, they are reducing that absolute latency to 9.44 nanoseconds—a gain of just 0.56 nanoseconds over the 6000 MT/s baseline.[3]

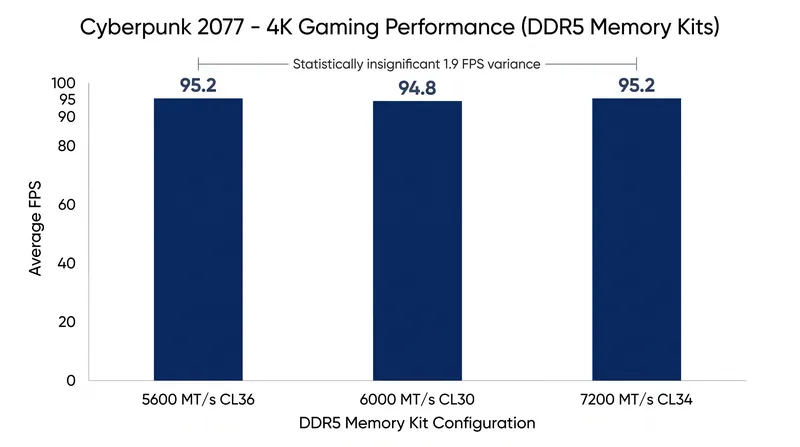

That half-nanosecond advantage rarely translates into meaningful gaming performance. Hardware reviewer Katherine Neul tested these exact configurations across multiple resolutions and found that the GPU rapidly becomes the defining bottleneck. In a 4K test of Cyberpunk 2077 using an NVIDIA GeForce RTX 5080 and an AMD Ryzen 7 9800X3D, the 7200 MT/s CL34 kit and a baseline 5600 MT/s CL36 kit tied for the top spot at 95.2 frames per second. The overall spread between the fastest and slowest memory configurations was a statistically insignificant 1.9 FPS.[3]

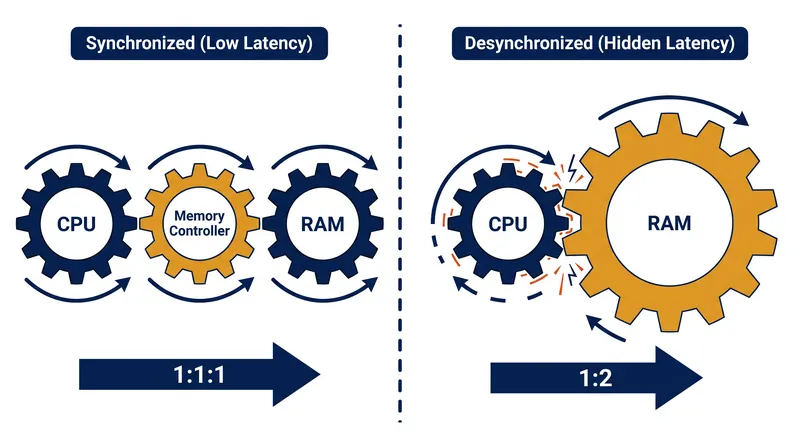

The architecture of the processor itself dictates how much memory speed actually matters. AMD's Ryzen processors utilize an Infinity Fabric interconnect that links the CPU cores to the memory controller. When the memory clock, the controller clock, and the Infinity Fabric clock operate at a 1:1:1 ratio, the system achieves minimal latency.

Pushing the RAM frequency too high forces the memory controller to drop into a 1:2 ratio, meaning the RAM has to wait for the CPU to catch up. This desynchronization introduces a hidden latency penalty that can make a 7200 MT/s kit perform worse than a synchronized 6000 MT/s kit.[1][2][3]

Intel's architecture handles high frequencies differently. The internal ring bus design on chips like the Core i9-14900K can sustain 7200 MT/s or higher in a 1:2 gear ratio without suffering the same severe latency penalties. However, achieving that throughput requires premium motherboards with advanced memory traces and substantial cooling to keep the high-speed data flow stable. For most builders, the cost-to-performance ratio collapses long before the system reaches those extreme frequencies.[1][3]

The introduction of massive L3 caches has further insulated gaming performance from memory bottlenecks. Processors equipped with AMD's 3D V-Cache technology, such as the Ryzen 7 9800X3D, store up to 96MB of data directly on the CPU die. Because the processor finds the instructions it needs in its own local warehouse, it makes fewer trips to the system memory. This architectural shift renders the absolute latency of the DDR5 kit largely irrelevant for titles that rely heavily on cache hits.[3]

Competitive esports titles running at 1080p are the sole exception to this rule. When the GPU is rendering frames faster than the CPU can process the game logic, memory timings dictate the performance floor. In Arc Raiders running at 1080p, the 7200 MT/s CL34 kit delivered an average of 166.5 FPS, outpacing slower kits by nearly 23 frames. But that advantage evaporates the moment the resolution scales to 1440p or the graphics settings increase.[1][3][5]

The economic reality of the DRAM market makes chasing these extreme speeds a poor investment. Driven by the massive memory requirements of AI data centers, suppliers like SK Hynix and Micron have constrained consumer DDR5 production, driving prices up by over 400% on some kits between May 2025 and January 2026. "In short: don't chase extreme speeds or ultra-tight timings unless you can comfortably afford them," Neul writes. "Aim for a balanced system where the CPU, GPU, and memory complement each other for the best overall experience."[3]

The sweet spot for current-generation hardware remains firmly anchored at 6000 MT/s with a CAS latency of 30. This configuration guarantees a 1:1 synchronization with AMD's Infinity Fabric, avoids the thermal and stability issues of extreme Intel overclocks, and delivers an absolute latency of 10.0 nanoseconds. Any budget allocated to pushing memory beyond this threshold yields a fraction of the performance that the same money would generate if spent on a higher-tier graphics card.[2][3][5]
