How Diverging US and European Regulations Dictate Headlight Brightness and Matrix LED Adoption

The National Highway Traffic Safety Administration argues that a headlight’s primary duty is to protect the oncoming driver from blinding glare, mandating strict illumination caps and a sharp, low cutoff line. The United Nations Economic Commission for Europe (ECE) counters that a headlight’s primary duty is to reveal hazards to the person behind the wheel, authorizing significantly higher maximum brightness and a wider beam spread to illuminate pedestrians and wildlife earlier.[1][6][7]

For a driver navigating a pitch-black rural highway in a 2026 luxury SUV, this philosophical divide dictates exactly what they can see. A vehicle purchased in Munich casts a fundamentally different pool of light than the identical model purchased in Minneapolis. If you are struggling to spot deer on a nighttime road trip, it is not because modern LED hardware lacks the power; it is because federal law physically restricts where that light is allowed to go.[7]

The American framework, Federal Motor Vehicle Safety Standard (FMVSS) 108, was originally drafted in 1967. It relies on a rigid testing matrix that measures light intensity at specific angles. Intertek, a global testing laboratory, notes that FMVSS 108 compliance requires automakers to pass exhaustive photometric evaluations that cap maximum output to prevent glare.[5][6]

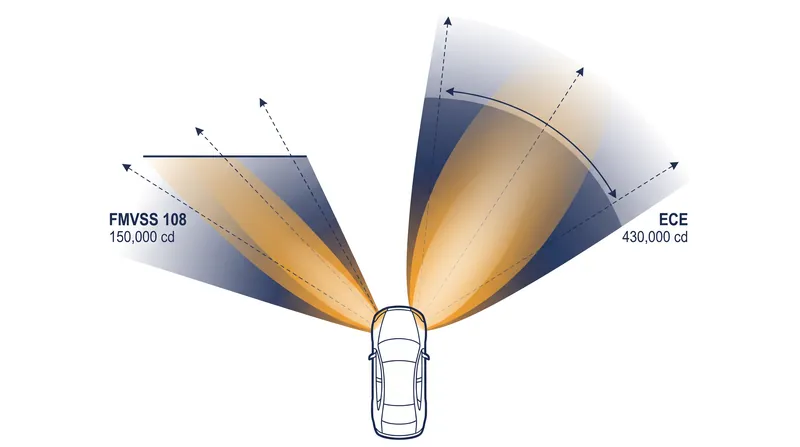

Across the Atlantic, the ECE regulations govern vehicle lighting for more than 50 countries. These standards permit high beams to project up to 430,000 candela of light intensity. In contrast, FMVSS 108 caps maximum high-beam intensity at 150,000 candela. That 280,000-candela deficit means an American driver traveling at 70 mph has significantly less reaction time when a hazard enters the roadway.[7]

The gap in visibility has tangible safety implications. "The U.S. standard for headlights is based on a 1970s understanding of lighting technology," noted the Washington Post in 2019, reporting on research demonstrating that European-spec headlights illuminate the road up to 250 feet further than their American counterparts.[3]

Forbes echoed this finding the same year, stating plainly that "Headlights are safer in Europe." Their analysis highlighted that while European drivers benefit from advanced illumination that actively adapts to the environment, American drivers are left relying on static beams that compromise either their own visibility or the comfort of oncoming traffic.[2]

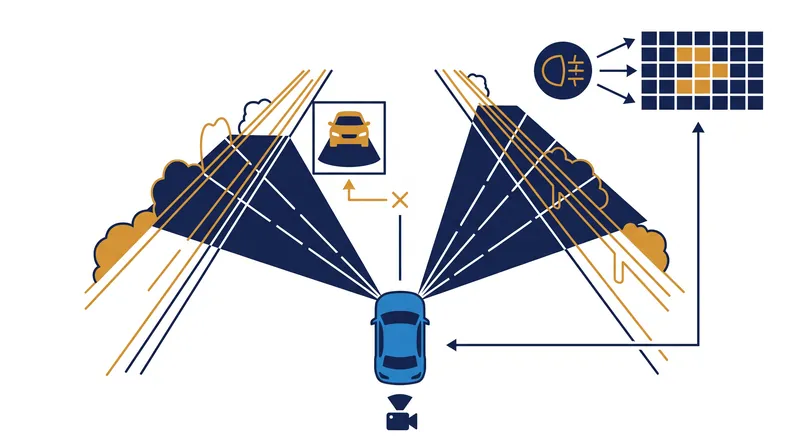

The starkest contrast between the two regulatory regimes centers on Adaptive Driving Beams (ADB), commonly known as matrix headlights. An ADB system uses a camera to detect oncoming traffic and selectively dims individual LED pixels to cast a "shadow" over the approaching car, while keeping the rest of the road bathed in high-beam light.[7]

European regulators approved ADB technology in 2012, allowing automakers like Audi and Mercedes-Benz to deploy systems with tens of thousands of individually controlled pixels. For a decade, these systems were entirely illegal in the United States because FMVSS 108 strictly required a binary choice: a dedicated low beam and a dedicated high beam, with no hybrid state permitted.[7]

In February 2022, NHTSA finally amended FMVSS 108 to permit ADB systems on American roads. However, the agency did not adopt the existing ECE standard. Instead, NHTSA authored a bespoke, highly rigorous testing procedure that requires the adaptive beams to react faster and restrict glare more aggressively than the European rules demand.[1]

This regulatory divergence created a massive hurdle for manufacturers. Because the NHTSA testing criteria are so distinct from the ECE requirements, automakers cannot simply activate the matrix headlights already installed on their global platforms. The hardware must be re-engineered or software-limited to comply with the American glare thresholds.[7]

The complexity of retrofitting and standardizing modern lighting is well documented. A 2024 technical paper published by SAE International examined the performance of headlights fitted with LED replacement bulbs, highlighting the delicate balance required to maintain proper beam patterns when altering light sources. The research underscores how easily a headlight's photometric distribution can fall out of compliance if the light source does not perfectly match the engineered optics.[4]

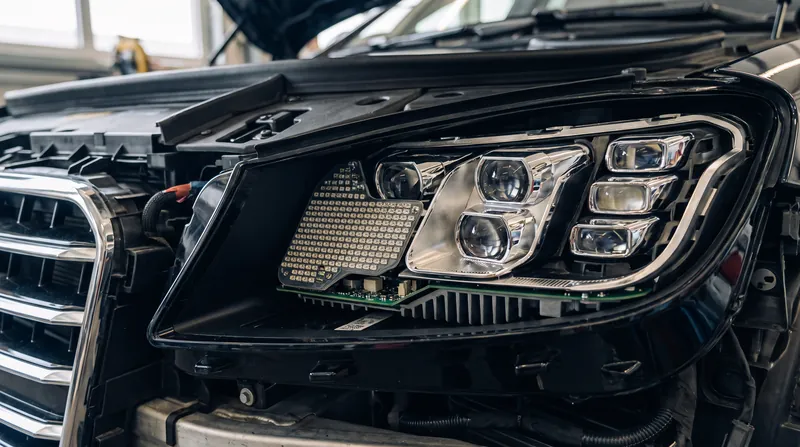

For the consumer, this regulatory friction translates directly into delayed technology and higher costs. Buyers of premium vehicles in the U.S. often pay for advanced matrix LED hardware that is physically present in the headlight housing but permanently deactivated via software because it cannot pass the bespoke NHTSA ADB test.[7]

Automakers and safety advocates continue to petition NHTSA to harmonize the U.S. standard with the ECE regulations, arguing that the European rules have a proven, decade-long safety record. Until that harmonization occurs, the American driver's nighttime visibility will remain defined not by the limits of modern engineering, but by the specific glare tolerances written into federal law.[1][7]
