Translating the Black Box: How the Logit Lens Maps AI Computations to Human-Readable Text

Debugging traditional software relies on stepping through lines of code to watch variables change state. Large language models process information through continuous vector spaces rather than discrete logic gates, making that line-by-line inspection impossible. The logit lens bridges this gap by forcing the model's internal, half-finished thoughts into the only vocabulary humans understand: the model's own output dictionary. By projecting intermediate mathematical states back into text, researchers can watch a neural network construct its answer in real time, identifying exactly when a model retrieves a fact, forms a bias, or decides to hallucinate.[1][8]

The technique, introduced in 2020 by the independent researcher known as nostalgebraist, answers a deceptively simple question. If a language model were stopped halfway through its layers and forced to guess the next token immediately, what would it say? The answer provides a real-time trajectory of the model's reasoning. Instead of treating the network as a monolithic black box that ingests a prompt and spits out a paragraph, the logit lens treats it as an assembly line, inspecting the product at every conveyor belt station.[1][5]

To understand how the logit lens works, one must first understand the "residual stream" at the core of the Transformer architecture. As a token passes through a model like GPT-3, which contains 96 distinct layers and 175 billion parameters, each layer does not overwrite the previous representation. Instead, it adds its own computed contribution to a running sum. This residual stream acts as the model's central memory bandwidth, accumulating context and nuance as the data moves deeper into the network.[4][6]

By the final layer, this accumulating vector holds everything the model needs to predict the next token. Normally, only this final residual state is decoded. The model applies a final layer normalization and multiplies the vector by an unembedding matrix, translating the hidden 12,288-dimensional mathematical representation into "logits"—individual probability scores for each of the roughly 50,000 tokens in the model's vocabulary. The token with the highest logit score becomes the model's official prediction.[1][4]

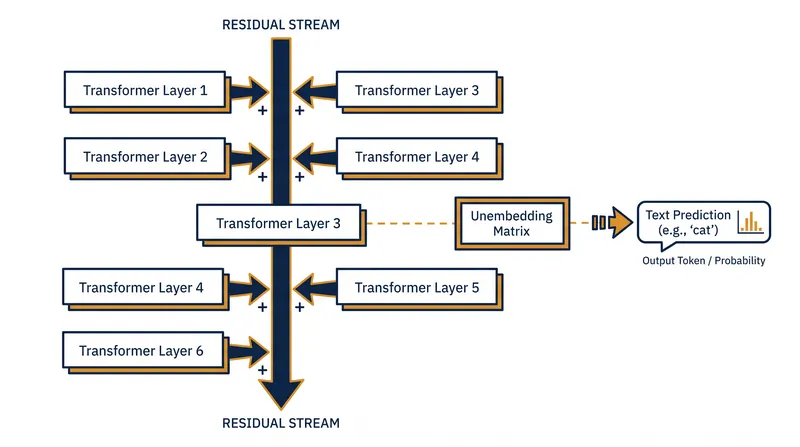

The logit lens makes a bold mathematical assumption: it applies that exact same final decoding step to the intermediate layers. By copying the final unembedding matrix and applying it to layer 10, layer 20, or layer 50, researchers can extract a readable text prediction from the middle of the network. "The logit lens focuses on what GPT 'believes' after each step of processing, rather than how it updates that belief inside the step," wrote nostalgebraist in the foundational 2020 LessWrong post.[1]

While the original logit lens provided a breakthrough window into model cognition, it suffered from a structural limitation known as basis drift. Early layers write information in coordinate systems that the final output unembedding matrix no longer perfectly matches. Because the network expects to undergo dozens of additional transformations before output, direct decoding at early layers often degrades into noise exactly where the most interesting foundational computations begin.[2][7]

In 2023, researchers addressed this drift with the "tuned lens." Rather than applying the final unembedding matrix directly, the tuned lens trains a specific affine probe—a learned mathematical translator—for each individual block in a frozen, pretrained model. This probe learns how to translate the unique coordinate system of layer 15 or layer 30 into the final vocabulary space, correcting for the rotational shifts that occur as data moves through the network.[2]

"We analyze transformers from the perspective of iterative inference, seeking to understand how model predictions are refined layer by layer," the researchers noted in their 2023 arXiv paper. By correcting for the changing basis at each depth, the tuned lens successfully elicits interpretable predictions much earlier in the network. On models with up to 20 billion parameters, the tuned lens proved significantly more reliable and less biased toward frequent tokens than the raw logit lens.[2]

As models have evolved from pure text to multimodal architectures, these interpretability tools have had to scale alongside them. A 2025 paper published in the ACL Anthology introduced methods extending beyond the basic logit lens, using contextual embeddings to detect hallucinations and ground outputs in Vision-Language Models (VLMs). By examining how visual tokens and text tokens interact in the intermediate residual stream, researchers can pinpoint the exact layer where a model decides to describe an object that does not exist in the source image.[3]

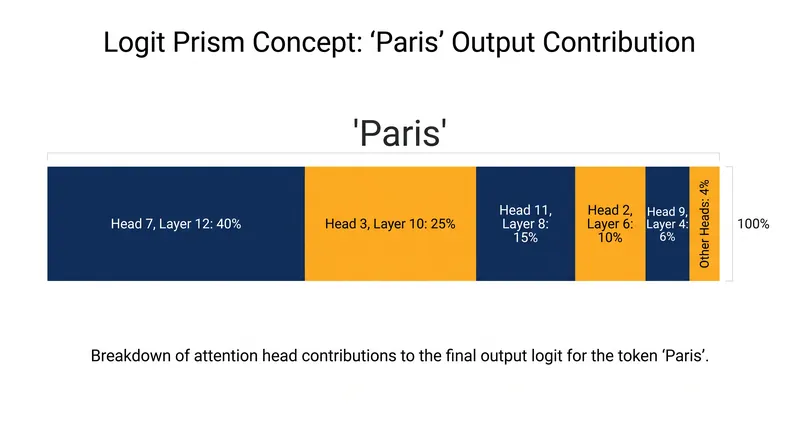

Similarly, the "logit prism" technique, detailed in a 2024 arXiv preprint, decomposes transformer outputs even further. Instead of just showing what the model predicts at layer 20 versus layer 40, logit prisms break down the exact contributions of individual attention heads and multilayer perceptrons (MLPs) to the final vocabulary distribution. If the model predicts "Paris," a logit prism can identify that Attention Head 7 in Layer 12 contributed 40% of the mathematical weight driving that specific prediction.[7]

These advancements are part of a broader shift toward "inner interpretability." As AI researcher Neel Nanda explained in his 2022 glossary, mechanistic interpretability is "the field of studying how to reverse engineer neural networks," moving away from surface-level behavioral analysis toward a granular, causal understanding of model mechanics. The goal is to compile a neural network's learned weights into human-understandable algorithms, much like decompiling a compiled binary back into readable source code.[4][5]

The ability to read a model's mind mid-computation is not just an academic exercise; it has immediate security applications. Researchers have found that the trajectory of latent predictions can be used to detect malicious prompt injection attacks with near-perfect accuracy. If a model's intermediate layers show a sudden, unnatural pivot in their vocabulary predictions—shifting from benign text to a system command at layer 25—security filters can halt the generation before the harmful output is ever finalized.[2][6]

Furthermore, understanding these internal trajectories helps engineers locate where specific facts or biases are stored. If a model consistently retrieves a biased demographic association at layer 15, developers can theoretically intervene at that exact depth. This surgical approach allows engineers to edit the model's weights or steer its activations without retraining the entire multi-billion-parameter system from scratch, saving millions of dollars in compute costs.[5][8]

The next frontier for these attribution methods lies in causal intervention rather than mere observation. While the logit lens can show that a model predicts "Paris" at layer 12, researchers are now testing whether surgically altering that intermediate vector can reliably change the model's final output to "Rome" without breaking its grammatical coherence. Until those causal editing techniques mature into standard engineering practice, the logit lens remains primarily a diagnostic tool—a reliable way to read the model's mind, but not yet a guaranteed way to change it.[6][7][8]
