Decoding SAE J2807: How the Standardized Towing Protocol Tests Acceleration, Braking, and Handling

Automakers argue that their internal engineering models, refined over years of proprietary testing, provide the most accurate assessment of what a specific truck chassis can safely pull under real-world conditions. Consumer advocates and independent engineers counter that without a uniform testing protocol, a 10,000-pound tow rating from one brand is mathematically incomparable to a 10,000-pound rating from another, reducing towing capacity to a marketing exercise rather than a safety metric.[2][3]

The Society of Automotive Engineers (SAE) intervened to resolve this discrepancy with the J2807 standard, first published in 2008 and widely adopted by 2015. The protocol strips away theoretical calculations and forces vehicles through a standardized physical gauntlet. If a truck claims a Gross Combination Weight Rating (GCWR) of 15,000 pounds, it must prove it can handle that exact mass across acceleration, climbing, braking, and handling tests.[1][4]

"For years, truck manufacturers have used their own internal testing to determine tow ratings," reports Edmunds, highlighting the industry's previous reliance on undisclosed math. The J2807 standard replaced those internal estimates with a grueling gauntlet of real-world physical tests, establishing a universal baseline.[4]

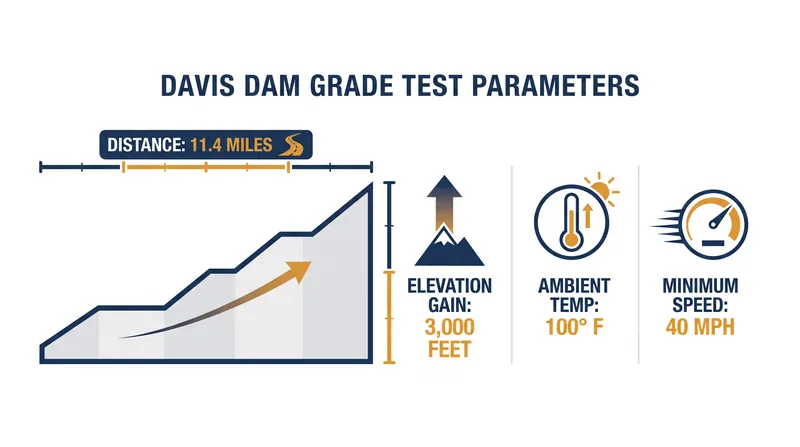

The most notorious component of J2807 is the Highway Gradeability test, modeled after the Davis Dam grade in Arizona. A truck loaded to its maximum claimed GCWR must climb a 3,000-foot elevation gain over 11.4 miles, maintaining a minimum speed of 40 mph for single-rear-wheel trucks and 35 mph for dual-rear-wheel models.[1][5]

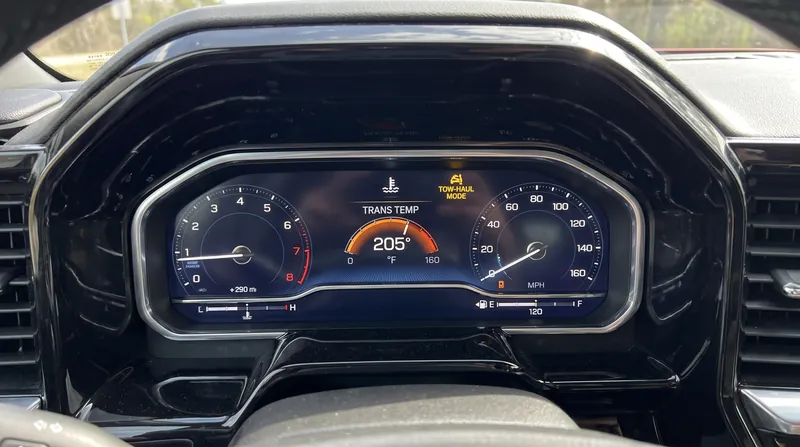

This climb must be completed with the air conditioning set to maximum, and the ambient temperature must be at least 100 degrees Fahrenheit. The standard requires that the vehicle complete the test without any component exceeding its peak temperature limit, and without triggering any warning lights or derating the engine.[1]

Beyond climbing, the protocol mandates strict acceleration minimums to ensure a loaded truck can safely merge onto a highway. A vehicle towing its maximum rated load must accelerate from zero to 30 mph in under 12 seconds.[1][5]

The zero to 60 mph sprint must be completed in under 30 seconds. Furthermore, the standard tests passing capability, requiring the truck and trailer combination to accelerate from 40 mph to 60 mph in no more than 18 seconds.[1][5]

Stopping the load is heavily regulated. The J2807 braking test requires a truck and trailer combination to stop from 20 mph within 35 feet. For combinations exceeding 3,000 pounds, the trailer must be equipped with its own brakes, but the test evaluates the integrated system's ability to halt the mass without losing stability.[1][2]

The parking brake also faces a severe examination. The truck must hold its maximum GCWR on a 12 percent grade, facing both uphill and downhill, using only the parking brake.[1][5]

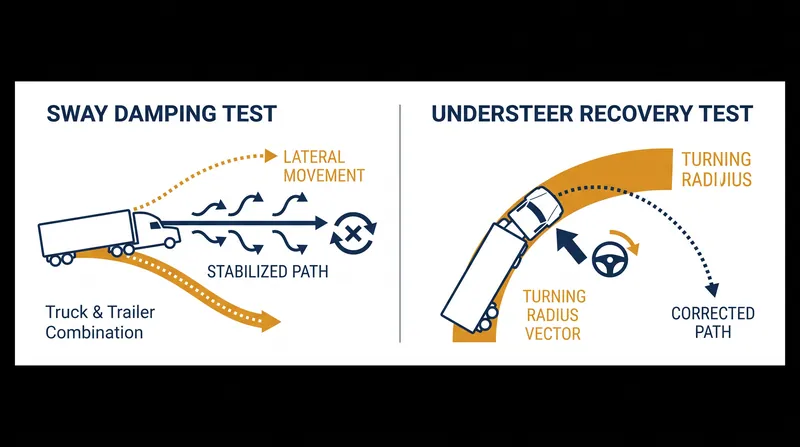

Handling tests ensure the trailer does not dictate the truck's steering. The Understeer test requires the vehicle to maintain a specific turning radius at varying speeds, proving that the front wheels retain enough traction to steer the vehicle even when the rear axle is heavily loaded.[1]

The Sway Damping test measures how quickly the truck can recover from a sudden lateral movement, such as a wind gust or an evasive maneuver. The standard dictates that any induced sway must decrease at a specific rate, ensuring the trailer does not enter an uncontrollable oscillation.[1]

J2807 also standardizes the assumed weight of the driver, passenger, and optional equipment. Before the standard, some automakers calculated tow ratings assuming a 150-pound driver and a completely empty truck. J2807 mandates calculating the rating with a 150-pound driver, a 150-pound passenger, and 100 pounds of optional equipment, plus 70 pounds for the hitch.[2][3]

Toyota was the first manufacturer to adopt the standard across its entire truck lineup in 2011, which resulted in an immediate, on-paper drop in the Tundra's towing capacity from 10,800 pounds to 10,400 pounds. General Motors, Ford, and Ram fully integrated the J2807 standard for their half-ton trucks by the 2015 model year.[3][4]

While universal for half-ton trucks, the standard's application to heavy-duty trucks took longer. The sheer mass of these vehicles required revisions to the protocol, culminating in the J2807 FEB2020 update, which refined the parameters for trucks with a Gross Vehicle Weight Rating (GVWR) up to 14,000 pounds.[1]

For buyers, the J2807 certification means the advertised tow rating is an actionable limit, not a marketing claim. When comparing a Ford F-150, a Chevrolet Silverado 1500, and a Ram 1500, the numbers represent identical physical capabilities verified against the same 11.4-mile Arizona grade. The next frontier for towing standards centers on electric vehicles, where the J2807 protocol will need to adapt to measure battery thermal management and range degradation under sustained heavy loads.[2][6]
