The Thermal Mechanics of Dry Dual-Clutch Gearbox Shudder

In 2011, Ford introduced the PowerShift DPS6, a dry dual-clutch transmission designed to bring manual-gearbox efficiency to automatic drivers. Within years, millions of vehicles exhibited a violent, body-shaking shudder when accelerating from a standstill. The mechanical fault was not in the gears, but in the thermal limits of the friction plates.

A traditional automatic transmission uses a fluid-filled torque converter to transfer power, allowing a car to creep forward at low speeds without physical wear. Dual-clutch transmissions (DCTs) eliminate this fluid coupling entirely. Instead, they rely on two automated mechanical clutches—one for odd gears and one for even gears.

When a driver presses the accelerator, the transmission control unit (TCU) commands the first-gear clutch to engage. On the open highway, this architecture delivers lightning-fast shifts and superior fuel economy. In heavy stop-and-go traffic, however, the system faces a severe mechanical disadvantage.

The Thermal Cost of Creeping

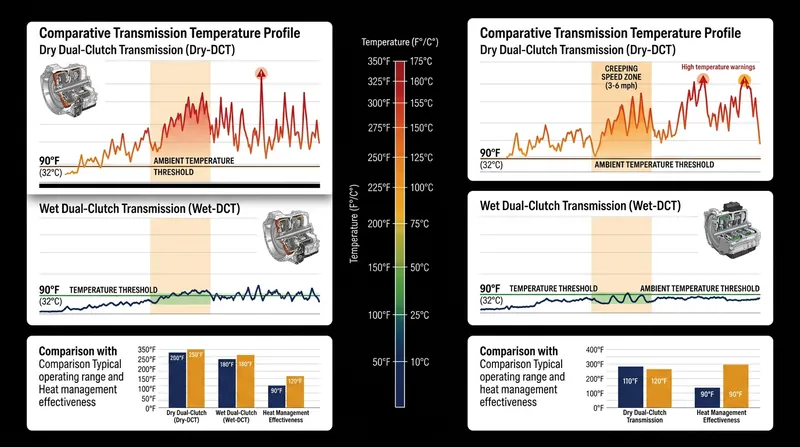

To move a vehicle at speeds between 3 and 6 mph, the TCU cannot fully engage the clutch without stalling the engine. Instead, it must slip the friction plates against the flywheel. This constant slipping generates immense friction and heat inside the bell housing.

"Unlike higher-tier DSG variants, these friction plates do not sit in a cooling oil bath," notes a 2026 technical guide from Drivisual on Volkswagen's DQ200 transmission. "They operate in open air just like a traditional manual transmission, relying purely on ambient air circulation for cooling."[1]

Without oil to absorb and carry away the thermal load, the temperature of the clutch pack spikes rapidly during urban commutes. When ambient summer temperatures exceed 90°F (32°C), the lack of fluid cooling becomes a critical vulnerability. The friction material begins to bake against the metal pressure plate.[2]

Friction Glazing and the Shudder

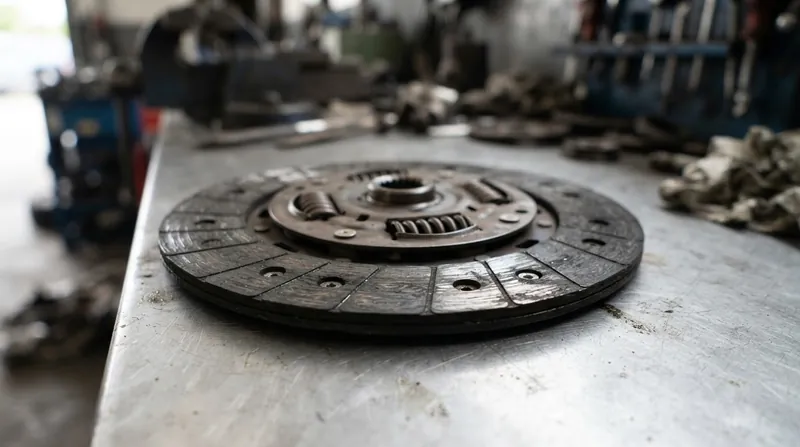

Repeated heat cycles fundamentally alter the physical properties of the clutch linings. The intense temperatures cause the friction material to glaze, transforming its textured, grippy surface into a hard, glassy finish. Once glazed, the clutch loses its ability to engage smoothly.

As the TCU attempts to slip the glazed clutch to maintain a slow creep, the hardened friction plates alternately grab and release the flywheel. This rapid binding and slipping sends a violent vibration through the drivetrain. Drivers experience this as a severe shudder that shakes the entire cabin.[1]

The shudder is most pronounced when pulling away from a stop or shifting from first to second gear. Kia's diagnostic protocol for its D7UF1 dry transmission involves a specific creep-driving test. If the vehicle body vibrates at 3 mph while the steering wheel remains steady, the clutch is glazed.[2]

The Mechatronic Unit Vulnerability

The heat generated by the slipping clutches does not just damage the friction plates. It also radiates into the mechatronic unit, the complex electro-hydraulic control center bolted to the side of the gearbox. This unit houses the sensors, solenoids, and actuators that physically move the shift forks.

In Volkswagen's DQ200, extreme thermal stress degrades the specialized hydraulic fluid inside the mechatronic unit. Contaminated fluid leads to poor pressure control, which further degrades the precision of the clutch engagement. A cracked pressure accumulator drops hydraulic pressure entirely, forcing the gearbox into neutral.[6]

The Dual-Mass Flywheel Factor

Ignoring the shudder accelerates damage to surrounding components. The dual-mass flywheel (DMF), designed to absorb engine vibrations, absorbs the brunt of the erratic torque transfer. The extreme heat from the slipping clutch also warps the flywheel's friction surface.

"When the DMF wears out, vibrations are no longer dampened effectively, and the clutch receives uneven torque input," explains a 2026 engineering bulletin from RunningRoo Auto Parts. Installing a new clutch against a warped flywheel guarantees the shudder will return almost immediately.[4]

Wet Clutches and Fluid Cooling

Automakers have increasingly transitioned back to wet-clutch architectures to solve the thermal problem. A wet DCT submerges its clutch packs in a specialized hydraulic fluid. This oil bath absorbs the heat generated during low-speed slipping and carries it away to a dedicated cooler.

The fluid cooling allows wet clutches to handle significantly more torque and survive the rigors of gridlock traffic. "A wet DCT runs its clutches in an oil bath, which carries heat away," reports AutoVoB in a 2026 transmission analysis. "The trade-off is a small efficiency loss from pumping all that oil."[3]

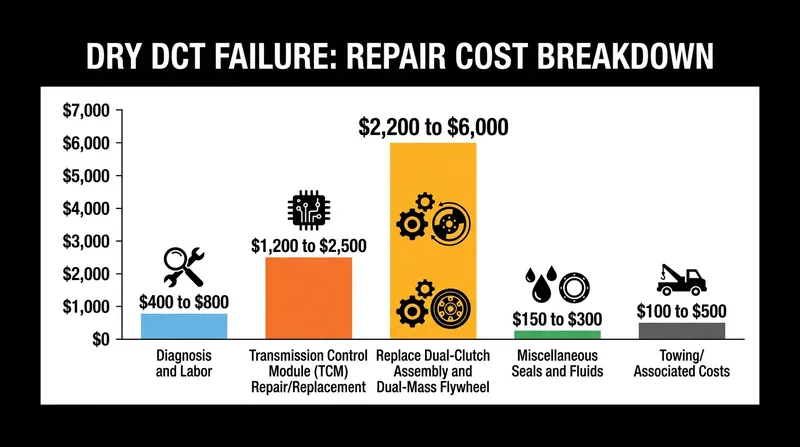

For dry DCT owners, the repair bill for a glazed clutch pack is substantial. Replacing the dual-clutch assembly and the warped dual-mass flywheel typically costs between $2,200 and $6,000, depending on the vehicle and labor rates.[5]

Hardware Reality Over Software Fixes

Manufacturers frequently issue technical service bulletins offering software updates to address the shudder. These TCU reflashes adjust the engagement logic, often programming the transmission to shift into second gear earlier or engage the clutch more aggressively to minimize slipping time.

While software adaptations can mask early symptoms, they cannot reverse physical friction glazing. "Once the friction surface is glazed or worn beyond tolerance, the only true solution is replacing the Clutch Kit," the Drivisual technical guide confirms.[1]

Transmission specialists emphasize that dry DCTs require a specific driving style to survive. Drivers must avoid inching forward continuously in traffic. Allowing a gap to form and then accelerating cleanly allows the clutch to fully engage, eliminating the destructive slipping phase.

In severe cases, the transmission control module will trigger a limp-home mode to prevent catastrophic internal damage. This restricts engine power and locks the gearbox into a single gear, allowing the driver to reach a safe location while the overheated components cool down.[2]

The engineering consensus remains clear: dry clutches excel in laboratory emissions testing and open-road performance. But until the friction material can shed heat as effectively as a fluid bath, stop-and-go traffic will continue to treat the dual-clutch assembly as an expensive, consumable wear item.
