Why Start-Stop Cars Destroy Standard Flooded Batteries in Months

Dealership technicians insist that modern vehicles with automatic engine start-stop systems require a $250 Absorbent Glass Mat (AGM) battery to function without stranding the driver. Budget-conscious owners counter that a standard $120 flooded lead-acid battery offers the exact same 700 cold-cranking amps and physical dimensions, making the premium version an unnecessary upsell.[3]

The conflict centers on a metric that standard battery labels do not advertise: micro-cycling endurance. When a vehicle shuts off at a traffic light, the battery must suddenly power the headlights, climate control, and infotainment system entirely on its own.[2]

Once the light turns green, the starter motor demands a massive current spike to wake the engine. The alternator then has perhaps three minutes of driving time to replenish that lost energy before the next red light forces the cycle to repeat.

This rapid, shallow discharge and incomplete recharge loop is known as micro-cycling. It fundamentally alters the chemical environment inside the battery casing, creating a physical separation that destroys conventional designs from the bottom up.[1]

The Mechanics of Acid Stratification

A traditional flooded lead-acid battery stores energy in a liquid bath of electrolyte, which is a mixture of roughly 35 percent sulfuric acid and 65 percent distilled water. The lead plates hang suspended in this free-flowing liquid.[1]

During a healthy, prolonged charging cycle on a highway, the alternator pushes enough voltage into the battery to generate tiny hydrogen and oxygen bubbles. This gentle boiling action, called gassing, physically stirs the liquid and keeps the acid and water perfectly mixed.

Urban start-stop driving never provides enough continuous charging time to initiate that mixing process. Without the mechanical agitation of gassing, gravity takes over the electrolyte solution inside the plastic casing.[2]

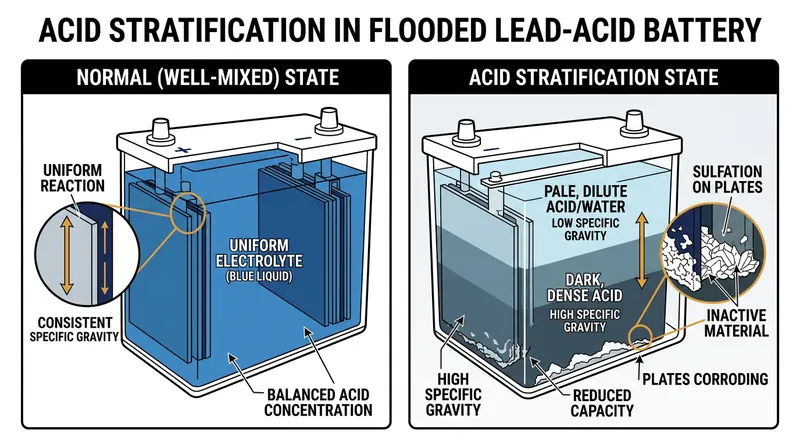

Sulfuric acid is significantly denser than water. Left undisturbed by a full charge, the heavy acid molecules slowly sink to the bottom of the battery cells, while the lighter water molecules rise to the top.[1]

Battery engineers call this separation acid stratification. Once the fluid stratifies, the battery effectively splits into two distinct, highly destructive chemical environments operating simultaneously within the same plastic box.[1]

Sulfation and Upper-Plate Corrosion

At the bottom of the battery, the acid concentration spikes to extreme levels. This hyper-acidic environment forces the lower half of the lead plates to work twice as hard, artificially inflating the open-circuit voltage reading while causing rapid lead sulfate crystallization.[1]

"The lower plates become heavily sulfated and lose their ability to accept a charge," notes 2026 technical documentation from VARTA Automotive. "This permanently reduces the battery's reserve capacity, even if the voltage appears normal on a basic tester."[1]

Meanwhile, the top half of the battery faces the opposite problem. The fluid surrounding the upper plates becomes almost entirely water, which conducts electricity poorly and severely restricts the battery's cold-cranking power.

Because the upper liquid lacks acid, it also loses its resistance to freezing. In winter climates, the water-rich top layer can freeze solid at 0°C, expanding and physically cracking the internal lead plates or the external plastic casing.[1][2]

Even in warm weather, the diluted upper electrolyte accelerates grid corrosion. The exposed upper plates rust away, eventually snapping the electrical connections between the cells and causing a sudden, total battery failure.[1]

How Immobilized Mats Prevent Settling

Absorbent Glass Mat (AGM) batteries solve the stratification problem through physical restraint rather than chemical alteration. Instead of letting the lead plates hang in a pool of liquid, AGM designs pack the space between the plates with dense fiberglass mats.[2]

These microscopic glass fibers act like a rigid sponge, soaking up the sulfuric acid and water mixture and holding it tightly in place. The electrolyte is completely immobilized within the fiberglass mesh.[2]

Because the liquid cannot flow freely, gravity cannot pull the heavier acid molecules to the bottom of the casing. The acid remains evenly distributed across the entire surface area of the lead plates, regardless of how the battery is charged.[2]

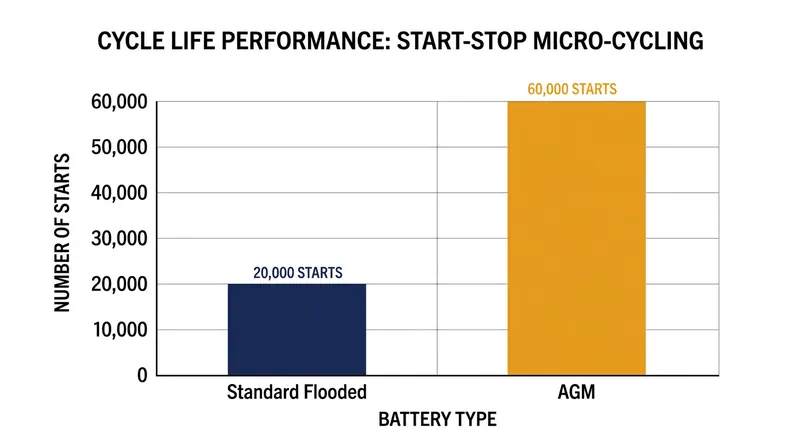

"By locking the electrolyte in suspension, AGM technology entirely eliminates acid stratification," reports the Battery Council International in its 2026 engineering guidelines. "This allows the battery to endure up to 60,000 engine starts, compared to roughly 20,000 for a standard flooded design."

The physical compression of the glass mats also holds the active lead material tightly against the internal grids. When micro-cycling causes the plates to expand and contract, the fiberglass prevents the lead paste from shedding and falling to the bottom of the case.[2]

The False Economy of Downgrading

Installing a standard flooded battery in a vehicle programmed for start-stop operation guarantees rapid degradation. The vehicle's electrical management system assumes an AGM battery is present and will subject the flooded replacement to aggressive micro-cycling.[3]

Within 12 to 14 months of urban driving, acid stratification will permanently sulfate the lower plates of the flooded battery. The owner will experience sluggish engine cranks, disabled infotainment features, and eventually a dead vehicle.[1][3]

Modern vehicles also use intelligent battery sensors to track degradation and adjust alternator output. If a technician does not register the new battery in the vehicle's computer, the alternator will overcharge the replacement, accelerating the water loss.[3]

Because AGM batteries are sealed and recombine their own gases, they do not lose water under normal operation. A flooded battery subjected to the same charging profile will boil off its water, exposing the plates and failing even faster.[2]

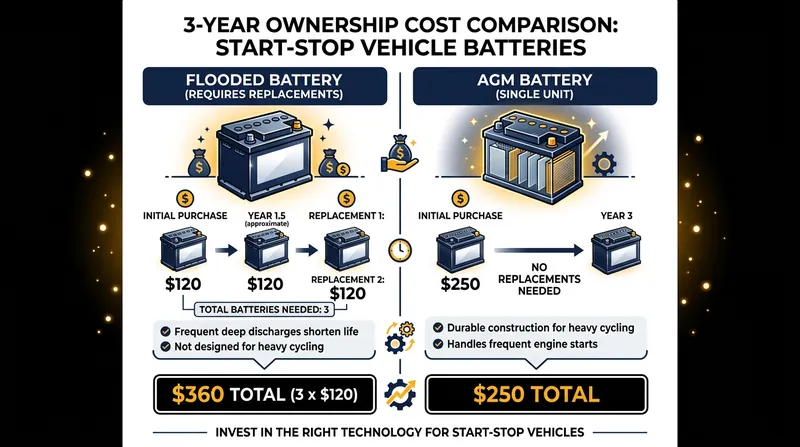

The upfront savings of a flooded battery are erased by its drastically shortened lifespan in a micro-cycling environment. The physical realities of sulfuric acid density make the premium AGM construction a mechanical requirement, not a luxury upgrade.[3]
