Why a One Percent Tire Diameter Difference Destroys All-Wheel-Drive Center Differentials

Replacing a single blown tire on an all-wheel-drive vehicle with a brand-new spare forces the car's center differential to absorb nearly eight continuous revolutions of mechanical slip per mile. That constant friction rapidly boils the silicone fluid inside the viscous coupling, transforming a $200 tire replacement into a $3,000 drivetrain failure.[4]

Standard all-wheel-drive systems require all four tires to maintain an identical rolling circumference. When one tire carries full tread and the other three are worn down by just a few thirty-seconds of an inch, the new tire covers a slightly different distance with every rotation.[1]

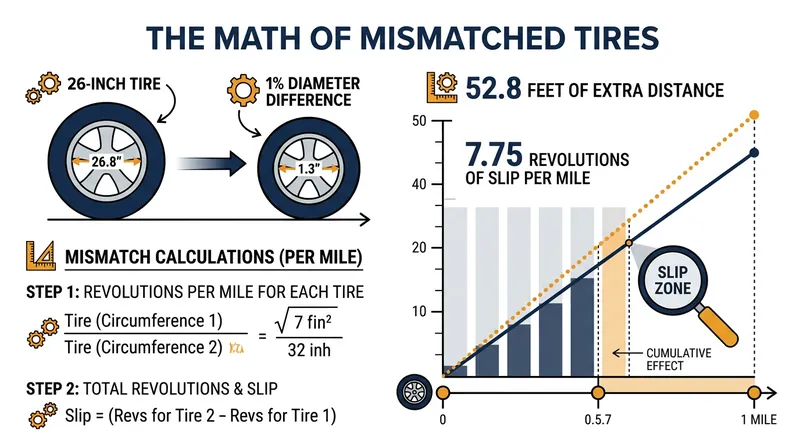

That physical size difference creates a continuous speed mismatch between the front and rear axles. On a standard 26-inch tire, a one percent variance in diameter translates to more than 50 feet of rotational difference over the course of a single mile.[4]

Because the axles are mechanically linked by the drivetrain, that extra distance cannot simply vanish. The vehicle's center differential must physically absorb the discrepancy by allowing the internal components to slip against one another while the car drives straight down a dry highway.[3]

"If the differentials or viscous couplings are forced to operate 100 percent of the time because of mismatched tires, they will experience excessive heat and unwarranted wear until they fail," notes Tire Rack's engineering guidance.[1]

How Center Differentials Manage Slip

To understand why this destroys the hardware, it helps to look at how an all-wheel-drive system distributes power. A center differential sits between the front and rear driveshafts, allowing the two axles to rotate at different speeds when the vehicle turns a corner.[2][3]

Without that differential, the drivetrain would bind and the tires would scrub against the pavement during every turn. Many systems, including older Subaru models and various European platforms, manage this speed difference using a viscous coupling unit filled with a thick, silicone-based fluid.[2]

Under normal driving conditions with matching tires, the internal plates of the viscous coupling rotate at roughly the same speed. The fluid remains cool, and the system sends power evenly to both ends of the vehicle without generating internal friction.[2]

When a wheel slips on ice or mud, the sudden speed difference between the axles shears the silicone fluid. The fluid rapidly heats up and thickens, locking the plates together to transfer torque to the axle that still has traction.[2]

This fluid-based approach provides progressive, reliable engagement without requiring complex electronic sensors. However, it is designed strictly for momentary activation during actual traction loss, not for the continuous engagement demanded by a mismatched tire diameter.

The Heat Trap and Fluid Degradation

A mismatched tire diameter tricks the all-wheel-drive system into perceiving a permanent state of wheel slip. The viscous coupling engages constantly to correct the speed difference, generating extreme heat inside the sealed unit as the plates continuously shear the silicone fluid.[3]

"When the silicone fluid overheats—from extended wheel spin, towing with mismatched tires, or decades of normal heat cycling—its viscosity characteristics shift," explains a 2026 engineering analysis by Apex Tech Nation.

Instead of providing progressive torque transfer, the degraded fluid begins to behave like a solid. The coupling engages aggressively at lower speed differentials, permanently locking the front and rear axles together even when the vehicle is simply trying to navigate a parking lot.

Engineers refer to this terminal failure state as the "hump phenomenon." Once the fluid breaks down and the plates lock, the vehicle loses its ability to accommodate the natural speed differences required for cornering, resulting in severe drivetrain bind.

Drivers typically notice the failure as a heavy shuddering or bucking sensation during low-speed turns. By the time those symptoms appear, the internal damage is irreversible, and the entire center differential or transfer case must be replaced.

The Financial Cost of Drivetrain Bind

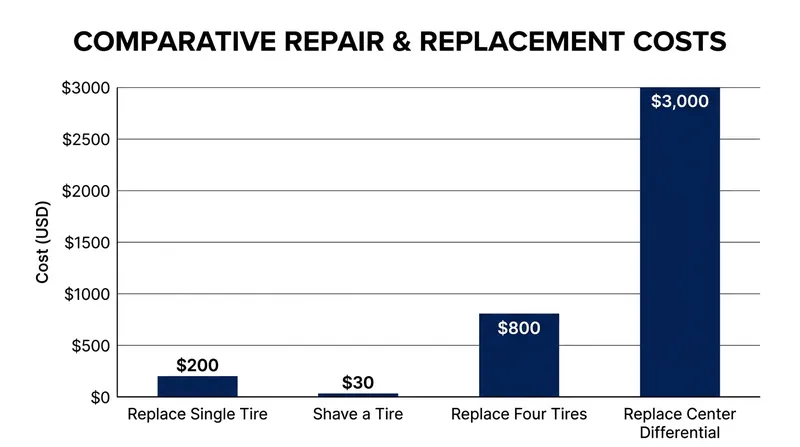

The repair bills for a burned-out torque distribution system dwarf the cost of replacing a full set of tires. Depending on the manufacturer and the specific mechanical layout, replacing a ruined center differential typically costs between $1,000 and $5,000.[3]

A replacement viscous coupling for a Subaru generally runs between $2,500 and $4,000, including labor. Audi center differentials and BMW xDrive transfer cases command similar premiums, often exceeding $3,000 when the internal clutch packs or fluids fail from heat stress.[3]

"The progression isn't immediate—typical failure develops over weeks to months of continuous operation with mismatched tires, with the damage becoming irreversible before symptoms appear," reports a 2026 technical bulletin from Performance Plus Tire.[3]

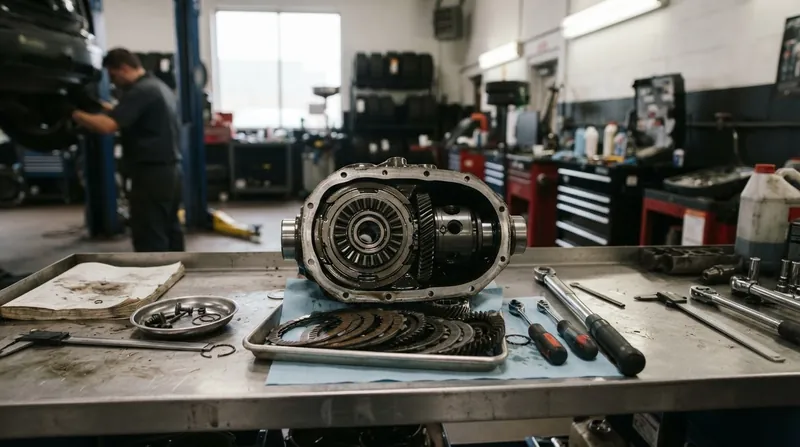

Because viscous couplings are sealed units, mechanics cannot simply open them up to replace the burned silicone fluid or swap out the warped friction plates. The entire assembly must be removed and discarded once the hump phenomenon occurs.

This steep financial penalty is why automotive technicians are so rigid about tire replacement rules. Selling a customer four tires when only one is punctured is not a retail upsell; it is a mechanical necessity to protect the transmission.[3]

Manufacturer Tolerances and the Shaving Solution

To prevent this damage, vehicle manufacturers publish strict tolerances for tire diameter variance. Most brands, including Audi and Subaru, require all four tires to remain within 2/32 of an inch of each other in remaining tread depth.[1]

That tread depth limit translates to a maximum allowable circumference difference of about one-quarter of an inch. If the existing tires on a vehicle have worn down by 4/32 of an inch, mounting a brand-new replacement tire instantly exceeds the safe mechanical limit.[1]

Some systems are even more sensitive to rotational discrepancies. Certain all-wheel-drive platforms can trigger dashboard warning lights or experience mechanical drag with a diameter difference of just 0.5 percent, leading to increased fuel consumption and accelerated wear.

For drivers who suffer a single unrepairable blowout on relatively new tires, replacing all four corners feels financially punishing. Fortunately, tire retailers offer a specialized machining service known as tire shaving to solve this exact problem.[1]

A technician mounts the new tire on a specialized lathe and shaves off the excess tread rubber until its depth perfectly matches the three older tires on the vehicle. This process eliminates the driveline stress and restores the vehicle's required mechanical symmetry.[1]
