The FTP-75, US06, and SC03 Test Cycles: How EPA Ratings Dictate a Car's City, Highway, and Combined Fuel Economy

The window sticker's fuel economy numbers only reflect reality if the driver's daily commute matches the exact acceleration curves, ambient temperatures, and braking patterns programmed into the laboratory dynamometer. For most modern drivers, it does not.

When shopping for a vehicle, treating the Environmental Protection Agency's city and highway ratings as a guaranteed baseline rather than a standardized comparison tool leads to immediate disappointment at the pump. The figures are derived from highly specific simulations that prioritize repeatability over individual accuracy.

The foundation of American fuel economy testing was laid in the 1970s, driven by the 1975 Energy Policy and Conservation Act. The EPA established the Federal Test Procedure to simulate a typical urban commute in Los Angeles, creating a baseline for regulatory compliance and consumer labeling.[1]

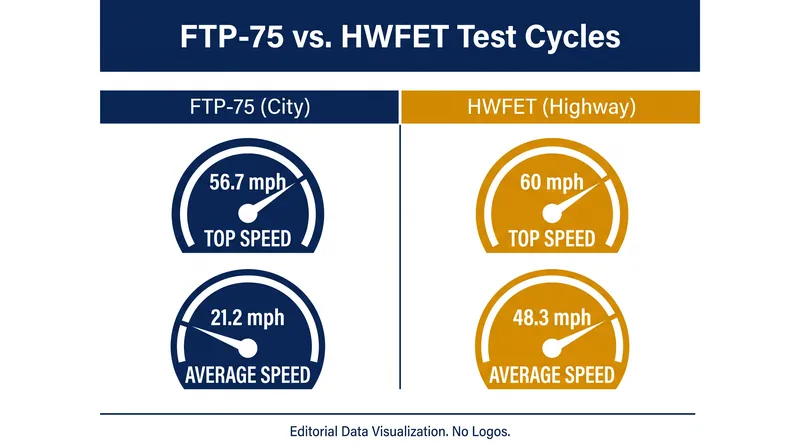

This baseline, known as the FTP-75 cycle, places a vehicle on a chassis dynamometer for exactly 1,874 seconds, covering a simulated distance of 11.04 miles. The test dictates a top speed of 56.7 mph and an average speed of just 21.2 mph, reflecting the stop-and-go traffic of a 1970s metropolis.[2]

To complement the urban test, the EPA introduced the Highway Fuel Economy Test (HWFET). This cycle runs for 765 seconds over 10.26 miles, with an average speed of 48.3 mph and a peak of 60 mph, simulating rural and interstate driving without major stops.[4]

For decades, these two cycles formed the entirety of the EPA's fuel economy labeling. However, as highway speed limits increased and vehicle power outputs surged, the gap between the laboratory and the real world widened significantly.

According to the US EPA's History of Fuel Economy Labeling, the agency recognized that "the test methods used to determine fuel economy estimates for the window sticker were originally developed in the 1970s and no longer accurately reflect today's driving conditions."[5]

To close this gap, the EPA mandated a transition to a "5-cycle" testing methodology, fully implemented for the 2008 model year. This system retained the FTP-75 and HWFET but added three supplemental cycles to capture aggressive driving, air conditioning use, and cold temperature operation.[1][5]

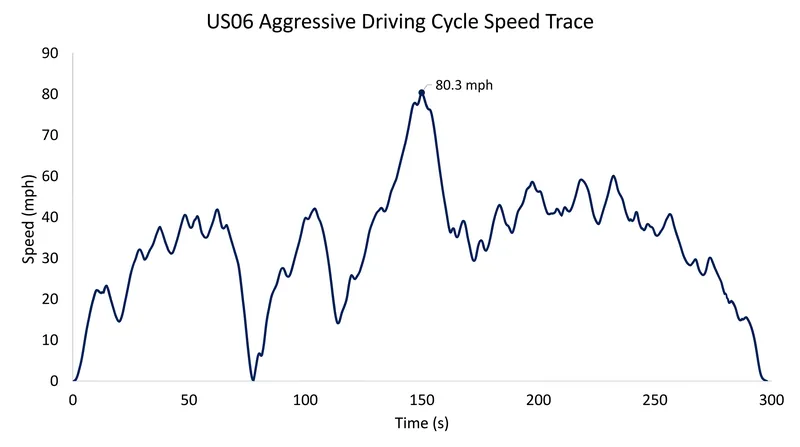

The most aggressive of these additions is the US06 Supplemental Federal Test Procedure. Designed to simulate high-acceleration, high-speed driving, the US06 pushes the vehicle to a top speed of 80.3 mph over an 8-mile simulated route.[3]

The second addition, the SC03 cycle, addresses the massive parasitic load of climate control. It runs a modified 3.6-mile urban loop while the laboratory ambient temperature is raised to 95 degrees Fahrenheit and the vehicle's air conditioning is set to maximum.[3]

The final addition is the Cold Temperature FTP. This test replicates the standard FTP-75 urban cycle but drops the laboratory temperature to 20 degrees Fahrenheit, forcing the engine to run rich while cold fluids increase mechanical friction.[1]

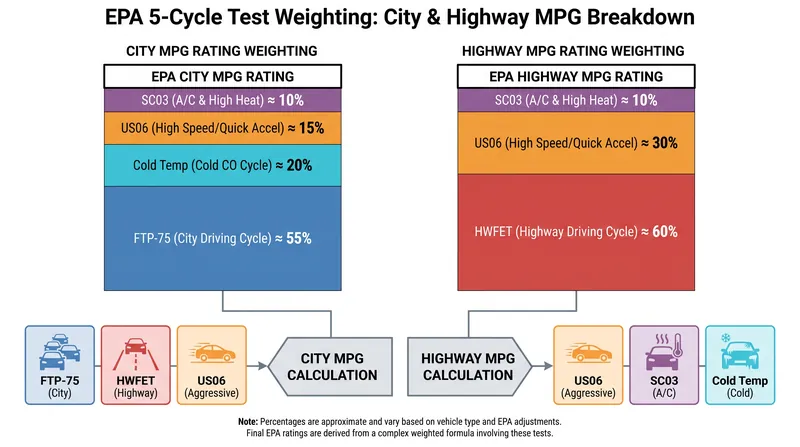

The final numbers printed on the Monroney sticker are not the raw results of these individual tests. Instead, the EPA applies a complex harmonic averaging formula that weights the five cycles to produce the "City" and "Highway" figures, which are then blended into a 55% city and 45% highway "Combined" rating.[5]

When comparing the base FTP-75 to the supplemental US06, the shift in dynamic load becomes stark. The US06 cycle demands a peak speed of 80.3 mph—a 41.6% increase over the FTP-75's 56.7 mph limit.[6]

Furthermore, the acceleration rates required to meet the US06 trace are nearly double those of the 1970s standard. This mathematical normalization explains why the introduction of the 5-cycle test immediately dropped advertised fuel economy ratings by 10% to 20% across the industry.[6]

The transition to electric vehicles has placed new stress on these legacy cycles. While internal combustion engines waste massive amounts of heat in stop-and-go traffic, EVs thrive in the FTP-75 cycle due to regenerative braking, often scoring higher city efficiency than highway efficiency.

Conversely, the HWFET and US06 cycles expose the aerodynamic drag that disproportionately affects EVs at sustained high speeds. Without a multi-speed transmission to keep motors in their peak efficiency band, EV range drops precipitously above 70 mph.

For the consumer, the actionable metric is the combined rating, but only if their driving matches the 55/45 split. Buyers with heavy highway commutes should weigh the HWFET-derived numbers more heavily, while urban drivers should focus on the FTP-75 and SC03 results.

The EPA's testing apparatus remains a laboratory simulation, not a crystal ball. The numbers on the sticker represent a standardized baseline for comparing a hybrid sedan to a heavy-duty truck under identical conditions. The actual gallons burned will always depend on the weight of the driver's right foot.
