How Convolutional Filters and Pooling Layers Extract Hierarchical Features in Computer Vision

A standard computer vision model processes an image of 224 by 224 pixels—a grid containing 50,176 individual data points per color channel—and reduces it to a single classification label in milliseconds. To achieve this, the architecture does not attempt to analyze the entire picture simultaneously. Instead, it deploys a mathematical operation called convolution, which breaks the image down into overlapping fragments to extract meaningful patterns.[3][6]

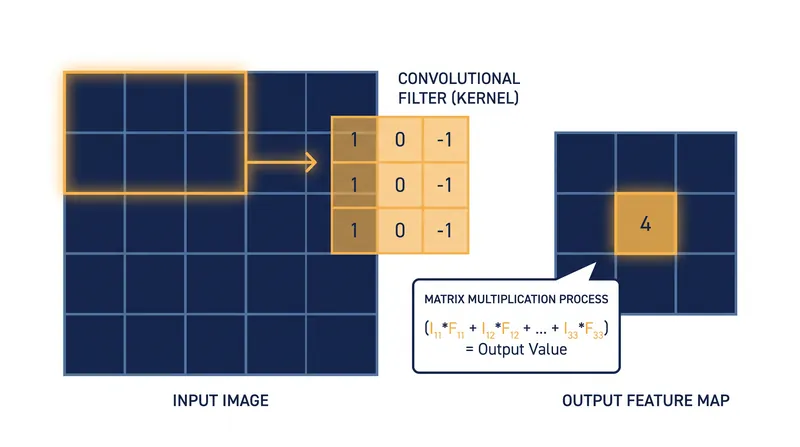

The core engine of this process is the convolutional filter, often referred to as a kernel. Typically measuring just 3 by 3 pixels, this small matrix of weights slides systematically across the input image. At each position, it computes a dot product between its own weights and the underlying pixel values, producing a single number that represents the presence or absence of a specific visual feature.[2]

In the earliest layers of a network, these filters act as simple edge detectors. By comparing adjacent pixel intensities, they identify sharp transitions in contrast—such as a vertical line, a horizontal boundary, or a diagonal gradient. A single convolutional layer might apply 64 distinct filters, generating 64 separate feature maps that highlight different low-level structures in the raw image data.[1]

As the data progresses deeper into the network, the representation becomes increasingly abstract. The second layer does not look at the raw pixels; it looks at the feature maps produced by the first layer. Consequently, it combines simple edges into corners and curves, building a more complex geometric understanding.[3]

By the third and fourth layers, the filters are combining those corners and curves into recognizable textures and object parts—a wheel, a dog's snout, or a window frame. This hierarchical feature extraction mirrors the biological visual cortex, building complex understanding from fundamental geometric building blocks.[5]

Extracting these features generates a massive computational burden. If a network applied 64 filters to a 224 by 224 image without any compression, the resulting output would contain over 3.2 million individual values per layer. Passing this volume of data through dozens of subsequent layers would overwhelm even modern graphics processing units.[2][6]

To solve this memory bottleneck, convolutional neural networks employ pooling layers. Inserted between convolutional operations, pooling layers aggressively downsample the spatial dimensions of the feature maps, discarding redundant information while preserving the strongest signals.[2]

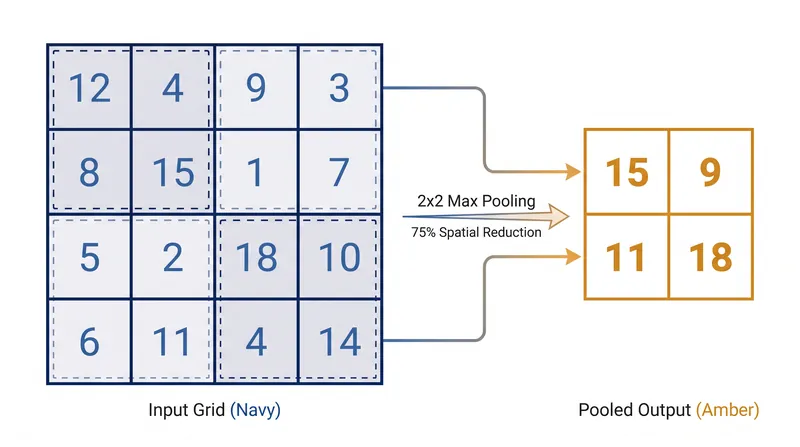

The most common technique, max pooling, slides a 2 by 2 window across the feature map with a stride of 2 pixels. At each step, it simply outputs the maximum value within that window and discards the other three. As the Stanford CS231n course documentation explicitly notes, "Pooling layers operate independently on every depth slice of the input and resize it spatially."[5]

This operation reduces the spatial dimensions of the data by exactly 75 percent. A 224 by 224 feature map shrinks to 112 by 112, cutting the total number of data points from 50,176 to 12,544 in a single pass.[5][6]

Beyond mere data compression, pooling introduces a critical property known as spatial invariance. By keeping only the strongest activation in a local region, the network becomes less sensitive to the exact position of a feature. If a target object shifts by one or two pixels in the input image, the max pooling layer will still capture the exact same maximum activation, ensuring the network recognizes the object regardless of minor translations.[4]

Researchers continuously experiment with variations on this architecture to improve efficiency. While max pooling dominates, average pooling—which takes the mean of the window rather than the maximum—is sometimes used in the final layers of a network to smooth the extracted features before classification, preventing overfitting on sharp local anomalies.[4]

Despite their success, these mechanisms are not flawless. The aggressive downsampling of pooling layers discards precise spatial relationships. A network might recognize the presence of two eyes, a nose, and a mouth, but struggle to verify if they are arranged in the correct anatomical order—a vulnerability that alternative architectures have attempted to address.[1][6]

The exact mathematical weights within the convolutional filters are not manually programmed by human engineers. They are learned autonomously through backpropagation during the training phase. The network adjusts millions of parameters iteratively, discovering for itself which visual patterns are most useful for minimizing classification errors.[2]

This autonomous learning process means that while we can visualize the feature maps to see what the network is detecting, the underlying logic remains partially opaque. Interpretability researchers can confirm that a specific filter activates in the presence of a wheel, but they cannot always explain why the network chose to prioritize that specific texture over another mathematically viable option.[3]

The combination of localized convolutional filters and aggressive spatial pooling remains the dominant paradigm in computer vision. Even as newer architectures like Vision Transformers gain traction by processing images as sequences of patches, the foundational logic of hierarchical feature extraction continues to define how artificial systems parse the visual world.[6]
