How the Transformer Architecture's Scaled Dot-Product Attention Mechanism Weighs Input Tokens

On June 12, 2017, a team of eight researchers at Google Brain and Google Research published a 15-page preprint that discarded the recurrent neural networks then dominating machine translation. "We propose a new simple network architecture, the Transformer, based solely on attention mechanisms, dispensing with recurrence and convolutions entirely," the authors wrote. This architecture was built entirely around a mathematical operation called scaled dot-product attention, which fundamentally changed how machines process language by allowing a model to weigh the relevance of every single word in a sequence simultaneously rather than sequentially.[4]

The actual capability of this mechanism is often obscured by anthropomorphic marketing language. When artificial intelligence companies claim their models "understand" context, "read" documents, or "reason" through complex prompts, they are describing the output of a highly parallelized matrix multiplication. The scaled dot-product attention mechanism is simply a sophisticated routing algorithm. It calculates exactly how much focus, or "attention," a specific token should pay to every other token in the input sequence, outputting a weighted sum of vectors that captures the contextual relationships between words.[6]

To execute this routing, the architecture projects each input token into three distinct vectors: a Query, a Key, and a Value. As detailed in visual breakdowns of the architecture, the Query represents what the current token is looking for in its surrounding context, the Key represents what a token contains or offers to other tokens, and the Value holds the actual semantic content. The mechanism computes the dot product between the Query of the current token and the Keys of all tokens in the sequence to establish their relationship.[5]

This dot product yields a raw score representing the mathematical alignment between two tokens. A high positive score indicates strong relevance, while a negative score suggests the tokens are unrelated. However, as the embedding dimensions grow, these raw dot products can become extremely large. In the original 2017 architecture, the researchers used a key dimension of 64. If left unscaled, the dot products of these 64-dimensional vectors would exhibit a variance of 64, assuming the initial vectors were drawn from independent distributions with zero mean and unit variance.[1][4]

This variance creates a severe mechanical problem during the training phase. The raw scores are passed through a softmax function to convert them into a probability distribution, where all weights sum to exactly one. If the input values to the softmax are too large, the function is pushed into its extremely flat regions. In these regions, the gradients—the crucial mathematical signals used to update the model's weights during backpropagation—approach zero, effectively halting the learning process and preventing the network from improving.[2][3]

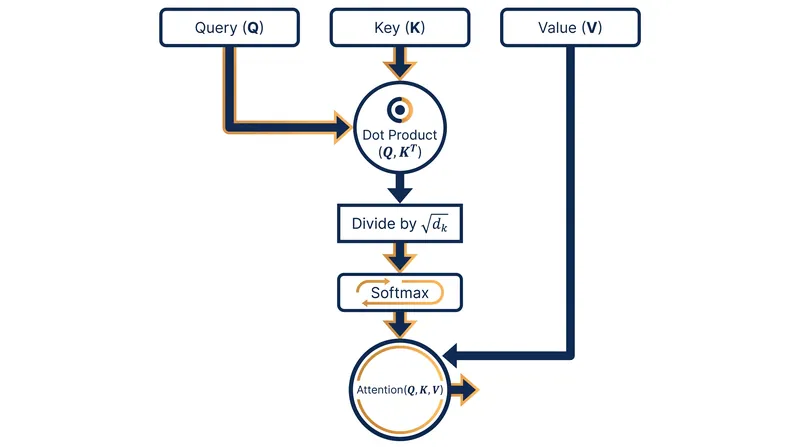

The solution, which gives the mechanism its full name, is the scaling factor. Before applying the softmax function, the architecture divides the raw dot product by the square root of the key dimension. For a dimension of 64, the divisor is exactly 8. This mathematical normalization compresses the variance back to 1, ensuring the softmax function operates in its sensitive middle region where gradients flow freely and the model can efficiently learn the optimal attention weights for any given sequence.[4]

Once the scores are normalized and converted into probabilities, they are multiplied by the Value vectors. The result is a new, context-aware representation of the original token. If the word "bank" appears next to "river," the attention mechanism assigns high weights to the water-related tokens, pulling their Values into the representation of "bank." If it appears next to "deposit," the financial tokens dominate the weighted sum, allowing the exact same word to be processed differently based entirely on its surrounding mathematical context.[5]

The 2017 paper did not just apply this mechanism once per layer; it introduced the concept of "multi-head" attention. By splitting the 512-dimensional embedding into eight parallel 64-dimensional heads, the model can simultaneously attend to different representation subspaces. One head might track grammatical subject-verb agreements, while another tracks semantic relationships or positional proximity, all without increasing the overall computational complexity compared to a single-head mechanism operating on the full dimension. This parallelization is what allows modern transformers to capture the immense complexity of human language in a single forward pass.[3][4]

Despite the immense scale of modern large language models, this exact scaled dot-product operation remains the computational engine under the hood. While companies announce new capabilities, multimodal integrations, and emergent behaviors, the fundamental token-weighing mathematics have not changed since 2017. The industry has simply scaled the matrix dimensions, increased the context windows, and deployed the massive hardware clusters required to multiply them at an unprecedented scale. The core innovation that powers today's generative artificial intelligence boom is still just a clever way to keep gradients from vanishing during matrix multiplication.[6]
