Impact Speed Over Force: Why Vertical Loading Rates Predict Running Stress Fractures Better Than Peak Impact

Runners who transition to a slightly higher step rate immediately alter the mechanical stress traveling up their shins, bypassing the need for heavily cushioned footwear to prevent bone injuries. The assumption that hitting the ground with more total force causes stress fractures has driven running shoe design for years. But clinical biomechanics has isolated the true mechanical trigger: it is not the magnitude of the impact, but the speed at which that impact occurs.[10]

When a runner's foot strikes the pavement, the body absorbs a force equivalent to roughly 2.5 times their body weight. This metric is known as the peak vertical ground reaction force (vGRF). However, a landmark systematic review published in Clinical Biomechanics analyzed multiple cohorts and found no significant difference in peak vGRF between runners with a history of stress fractures and those without. The total weight absorbed did not predict who ended up in a walking boot.[1]

Instead, the critical variable is the vertical impact loading rate (VILR)—a measure of how rapidly that force is applied during the first 50 milliseconds of the step. The same Clinical Biomechanics review confirmed that loading rates were significantly higher in the injured groups. It is the suddenness of the shock, rather than the total weight of it, that outpaces the tibia's ability to remodel and repair itself.[1]

The human skeleton is not a static structure; it is constantly breaking down and rebuilding itself in response to stress. When a runner trains, specialized cells called osteoclasts clear away micro-damaged bone, while osteoblasts lay down new, stronger tissue. This remodeling process requires time. When the vertical loading rate is excessively high, the mechanical fatigue outpaces the osteoblasts' ability to repair the micro-cracks, leading to a stress reaction and, eventually, a full tibial stress fracture.[1][3]

This distinction changes how physical therapists and sports doctors approach injury prevention. A 2010 study published in the Journal of Orthopaedic & Sports Physical Therapy (JOSPT) demonstrated that runners could actively reduce their impact loading by 15% to 30% using real-time visual feedback on a treadmill. By seeing their force curves on a screen, the subjects naturally adjusted their mechanics to soften the blow.[2]

The mechanics of that softening usually come down to foot position. When a runner overstrides, the heel strikes the ground well ahead of the body's center of mass. This creates a sharp, immediate spike on a force plate, known as the impact transient. The 2020 Harvard Running Study synthesized years of evolutionary and biomechanical data to show that reducing these vertical loading rates directly correlates with reduced injury risk.[9]

Researchers writing in Medicine & Science in Sports & Exercise in 1999 had already begun mapping the relationship between these ground reaction forces and tibial stress fractures in male runners. They found that the bone characteristics of the tibia respond poorly to high-velocity stress. Bone is a viscoelastic material; it can handle massive loads if they are applied gradually, but it becomes brittle when subjected to high-speed impacts.[4]

By 2016, a study in the journal Bone expanded on this by showing that bone strength estimates relative to vertical ground reaction force could successfully discriminate women runners with a history of stress fractures from healthy controls. The female runners who had suffered fractures were not necessarily landing with more total force, but their skeletal architecture was absorbing the load too quickly.[3]

Fatigue exacerbates this mechanical flaw. A study published in the Journal of Science and Medicine in Sport examined the effects of fatigue on running mechanics associated with tibial stress fracture risk. As runners tire, their core stability drops and their stride often lengthens, causing the foot to slap the ground harder and faster. The loading rate spikes precisely when the stabilizing muscles are least equipped to absorb it.[7]

The International Society of Biomechanics in Sports (ISBS) highlighted these specific gait mechanics in 2009, noting that the kinematics of the knee and ankle play a massive role in dampening the shock. A stiff knee and a rigid ankle transfer the impact velocity directly into the shin bone.[5]

For the everyday runner, the intervention is structural rather than equipment-based. Runblogger's 2011 analysis of vertical impact loading rates emphasized that simply buying a shoe with a thicker midsole does not reliably lower the loading rate. In some cases, maximalist shoes encourage a harder heel strike because the runner cannot feel the ground, inadvertently keeping the loading rate high.[8]

Shoe manufacturers have spent forty years attempting to engineer away this impact transient with increasingly sophisticated foams and air pockets. However, biomechanical data consistently shows that runners subconsciously adjust their leg stiffness based on the surface they are running on. When presented with a highly cushioned shoe, the nervous system often allows the leg to remain stiffer prior to impact, seeking stability. This phenomenon explains why injury rates for stress fractures have remained relatively flat over the last four decades despite massive advancements in shoe cushioning technology.[8][10]

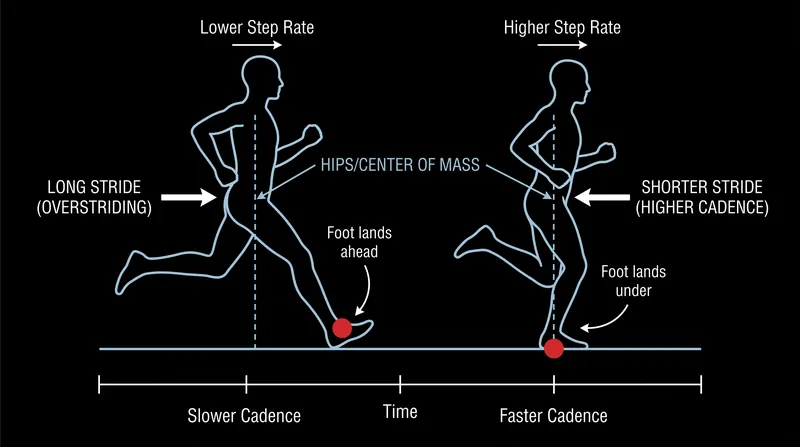

The most reliable clinical intervention, as outlined in Musculoskeletal Key's 2016 breakdown of biomechanics and gait analysis, is manipulating step rate. Increasing cadence by 5% to 10% forces the runner to take shorter steps. The foot lands closer to the center of mass, often shifting the strike from the extreme rearfoot to the midfoot. This shift flattens the force curve, eliminating the sharp impact transient and protecting the tibia from the high-velocity stress that causes fractures.[6]

Transitioning to a higher cadence requires neuromuscular patience. A runner accustomed to a step rate of 150 steps per minute will find 165 steps per minute metabolically taxing at first, as the cardiovascular system adapts to the new rhythm. However, this temporary spike in heart rate is a necessary trade-off to permanently lower the mechanical loading rate on the skeletal system. Over a period of four to six weeks, the new motor pattern becomes automatic, and the cardiovascular penalty fades, leaving the runner with a structurally safer stride.[6][10]
