How the Lawson Criterion's Triple Product Dictates the Threshold for Sustained Nuclear Fusion

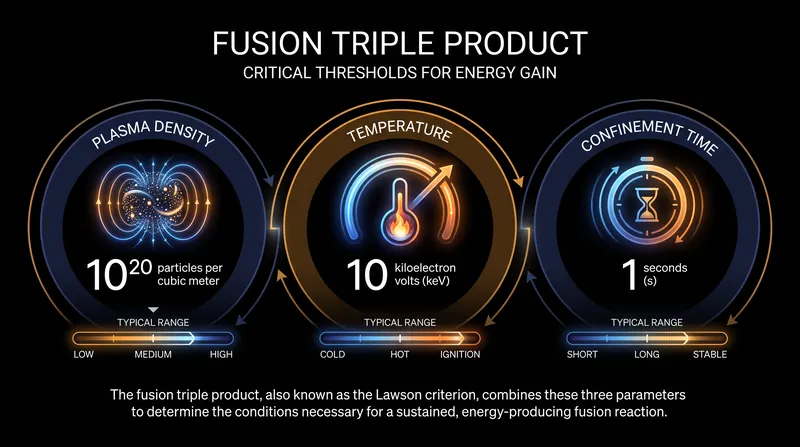

To force two hydrogen nuclei to fuse and release net energy, a reactor must maintain a plasma at 150 million degrees Celsius—ten times hotter than the core of the sun—while holding it perfectly stable for several seconds. That specific combination of extreme heat and duration represents the fundamental physical barrier to commercial fusion power. It is quantified by a single metric known as the fusion triple product, which multiplies the plasma's density, its temperature, and its energy confinement time.[1][2]

First formulated by British physicist John Lawson in 1955, the Lawson criterion establishes the exact break-even point where the energy generated by fusion reactions equals the energy lost to the environment through radiation and thermal conduction. If a reactor falls short of this mathematical boundary, the plasma cools and the reaction extinguishes.[2][6]

The first variable in this equation is plasma density, typically measured in particles per cubic meter. In magnetic confinement systems like tokamaks, the target density is roughly 10^20 particles per cubic meter. While this sounds massive, it is actually about one million times less dense than the air at sea level.[1][3]

Operating at such a near-vacuum density is a deliberate engineering choice. If the density were higher, the pressure of the superheated plasma would exceed the structural limits of the magnetic fields containing it. Consequently, to achieve the necessary collision rate between nuclei at this low density, the other two variables in the triple product must be pushed to extreme limits.[3][4]

The second variable is temperature, which dictates the kinetic energy of the particles. For the most accessible fusion reaction—combining the hydrogen isotopes deuterium and tritium (D-T)—the plasma must reach at least 10 to 20 kiloelectron volts (keV), which translates to between 100 million and 200 million degrees Celsius.[1][5]

At these temperatures, the electrostatic repulsion between the positively charged nuclei is overcome by their sheer velocity, allowing the strong nuclear force to bind them together. If the temperature drops below this threshold, the nuclei simply bounce off one another, scattering the injected energy without producing any fusion yield.[4][6]

The third and most challenging variable is energy confinement time. This measures how long the plasma retains its heat before it leaks out into the reactor walls. In modern magnetic confinement devices, this value is measured in seconds.[1][2]

Confinement time is not a measure of how long the reactor operates, but rather the insulation quality of the magnetic field. A high confinement time means the plasma is well-insulated, requiring less external heating to maintain fusion conditions. Achieving a confinement time of just one to two seconds at the required density and temperature is the primary hurdle for current experimental reactors.[3][5]

When these three parameters—density, temperature, and confinement time—are multiplied together, the resulting triple product must exceed 3 × 10^21 keV·s/m³ for a D-T plasma to reach ignition. Ignition is the state where the helium nuclei (alpha particles) produced by the fusion reactions provide enough internal heating to sustain the plasma without any external power input.[1][2]

Different reactor designs trade these variables against one another. Magnetic confinement systems, like the ITER project currently under construction in France, operate at low density but aim for long confinement times of several seconds.[2][3]

Conversely, inertial confinement systems, such as the National Ignition Facility in the United States, use lasers to compress fuel pellets to densities 100 times greater than lead. Because their density is so extreme, their required confinement time drops to billionths of a second to satisfy the Lawson criterion.[4][6]

The choice of fuel also drastically alters the required triple product. While a D-T mixture requires a triple product of 3 × 10^21 keV·s/m³, attempting to fuse two deuterium nuclei (D-D) requires a temperature of nearly 400 million degrees Celsius and a triple product roughly 100 times higher.[1][6]

This steep physical requirement explains why the entire commercial fusion industry is currently focused on D-T fuel, despite the engineering complexities of handling radioactive tritium and breeding it inside the reactor blanket. The Lawson criterion makes alternative, cleaner fuels physically inaccessible with current magnet and laser technology.[3][5]

Tracking the historical progression of the triple product reveals the pace of fusion development. In the 1970s, experimental tokamaks achieved triple products around 10^18 keV·s/m³. By the late 1990s, facilities like the Joint European Torus (JET) pushed that figure to 5 × 10^20, coming within a factor of six of the ignition threshold.[2][5]

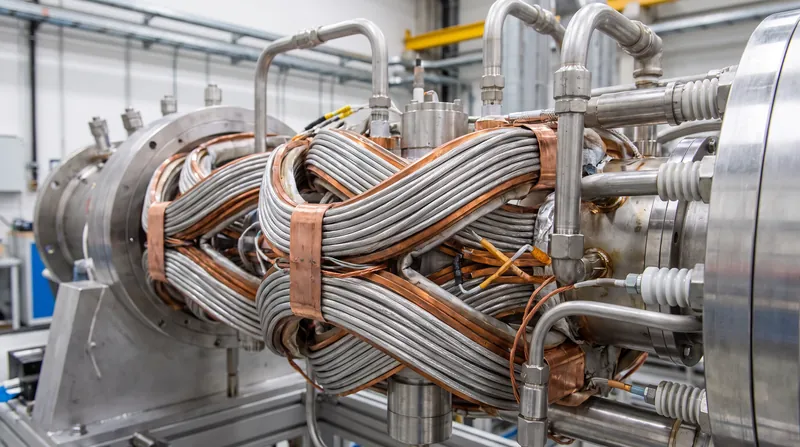

Today, private fusion startups use the triple product to validate their claims to investors. While the foundational physics documentation detailing the Lawson criterion does not contain direct commentary or quotes from individual researchers, the mathematical consensus remains absolute across the field. By publishing their achieved density, temperature, and confinement time, these companies provide a transparent, physics-based metric that proves whether a new high-temperature superconducting magnet or novel plasma geometry is actually moving the needle toward commercial viability.[4][5]

The next verifiable checkpoint for the global fusion community rests on the completion of ITER and the next generation of private pilot plants. To prove commercial viability, these facilities must not only hit the 3 × 10^21 threshold but sustain it continuously, translating a mathematical boundary into a stable baseline for electricity generation.[2][3]
