Permanent Magnet vs. Induction vs. Switched Reluctance: How Electric Motor Architectures Trade Off Efficiency, Cost, and Rare Earth Dependence

The choice of electric motor architecture is fundamentally decided at the rotor. Whether a manufacturer is building an electric vehicle drivetrain, an industrial compressor, or a high-speed pump, the physical composition of the spinning core dictates the system's peak efficiency, its manufacturing cost, and its exposure to global supply chain shocks. Permanent magnet (PM) motors embed rare-earth metals directly into the rotor to create a constant magnetic field. AC induction motors replace those magnets with conductive bars that rely on electromagnetic slip. Switched reluctance (SR) motors strip the rotor down to pure laminated steel, eliminating both magnets and windings entirely.[1][4]

For decades, the engineering consensus treated the permanent magnet synchronous motor as the undisputed ceiling for efficiency. By maintaining a constant magnetic flux without drawing current to induce it, PM motors eliminate secondary rotor heat losses. As Frances Richards noted in a 2013 analysis for Machine Design, "Rating for rating, PM-rotor technology is simply more efficient than induction technology." This architectural advantage allows them to achieve peak electromechanical conversion efficiencies of 93 to 97 percent. However, the trade-off is the materials sheet: these rotors require significant quantities of neodymium and dysprosium. These rare-earth elements are expensive, subject to intense geopolitical export controls, and vulnerable to severe price volatility.[1][2][3][4]

As supply chain security becomes as critical as energy efficiency, AC induction motors offer a proven escape route from the rare-earth market. Instead of permanent magnets, the stator's rotating magnetic field induces a current in the rotor's squirrel-cage windings. Because the rotor must spin slightly slower than the magnetic field—a phenomenon known as slip—induction motors inherently generate more heat and sacrifice some efficiency, typically peaking between 90 and 95 percent.[3][5]

Despite this slight 2 to 4 percent efficiency penalty, induction motors cost substantially less to manufacture and require no exotic materials. They can also absorb massive load spikes without the risk of demagnetizing a permanent magnet, making them the default choice for heavy industrial applications and a growing number of mass-market electric vehicles. The absence of permanent magnets means the motor can be allowed to freewheel without generating back-electromotive force, a distinct advantage in dual-motor vehicle setups.[1][3][4][5]

Switched reluctance motors represent the most radical departure from traditional design, pushing the complexity out of the physical hardware and into the software. The SR rotor contains no magnets, no copper bars, and no electrical connections of any kind; it is simply a shaped block of laminated iron with protruding poles. Torque is generated purely by magnetic reluctance as the stator's electromagnets pull the iron poles into alignment, much like a magnet attracting a paperclip.[1][4][6]

Because the SR rotor has no conductors, rotor heat losses are virtually zero. Furthermore, the pure iron construction reduces rotor mass by 50 to 60 percent compared to an induction motor, allowing for rapid acceleration, high-speed operation, and extreme temperature tolerance. If an SR motor stalls, there are no magnets to demagnetize and no rotor windings to melt, making it nearly indestructible in harsh environments.[4][6]

The penalty for the SR motor's physical simplicity is severe control complexity. Because torque is generated in discrete pulses as the poles align, SR motors naturally produce torque ripple and acoustic noise. They require sophisticated, high-frequency switching electronics to smooth out the power delivery and maintain rotation. Consequently, their system-level efficiency typically lands between 85 and 93 percent, slightly trailing both PM and induction designs due to switching losses in the inverter.[4][6]

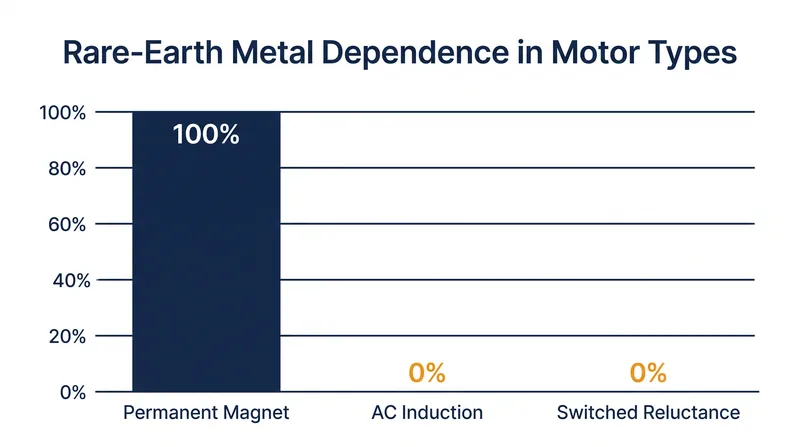

Yet, as digital signal processing becomes cheaper and faster, the ability to precisely control SR motors is rapidly improving. Advanced algorithms can now mitigate much of the torque ripple that historically relegated SR motors to niche industrial roles. Researchers at ABB have demonstrated that optimized control strategies can yield "ultrahigh efficiencies" that rival traditional designs. By eliminating 100 percent of the rare-earth metals required by PM designs and stripping away the heavy copper windings of induction motors, the switched reluctance architecture frames the modern engineering trade-off: substituting physical material costs with computational complexity.[1][2][6]
