How Phase Change and Capillary Action Move Heat in a Heat Pipe

In 1963, inside the Los Alamos National Laboratory in New Mexico, physicist George Grover sketched a concept in his notebook for a closed thermal system that required no external pumps. He was looking for a way to move intense heat away from space-based nuclear reactors. By sealing a small amount of working fluid inside a metal tube lined with a wire mesh wick, Grover created a device that could transfer heat at speeds impossible for solid metals.

"Such a closed system, requiring no external pumps, may be of particular interest in space reactors in moving heat from the reactor core to a radiating system," Grover noted in his 1963 laboratory notebook. He called it a "heat pipe," and his initial prototypes using lithium and sodium at extreme temperatures laid the foundation for the thermal management systems that now keep everything from orbiting satellites to desktop gaming computers from melting down.[5]

Today, if you need to cool a 200-watt processor or a high-intensity LED array, a sintered copper heat pipe is the industry standard. It costs relatively little to manufacture but provides an effective thermal conductivity between 10 and 100 times higher than a solid block of copper.

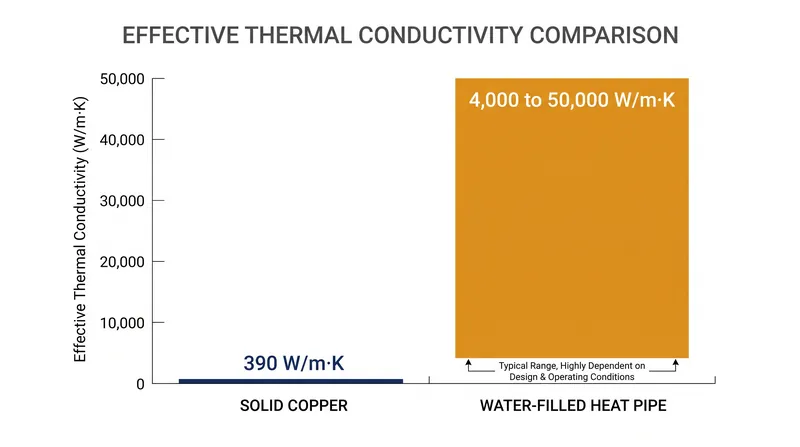

While a solid copper rod maxes out at a thermal conductivity of roughly 390 watts per meter-kelvin (W/m·K), a water-filled heat pipe can achieve an effective conductivity of 4,000 to over 50,000 W/m·K. The caveat is that this extreme efficiency only kicks in under specific conditions: the heat source must be hot enough to vaporize the internal fluid, and the pipe must be long enough—typically over 50 millimeters—to allow the vapor to travel and condense effectively.[4]

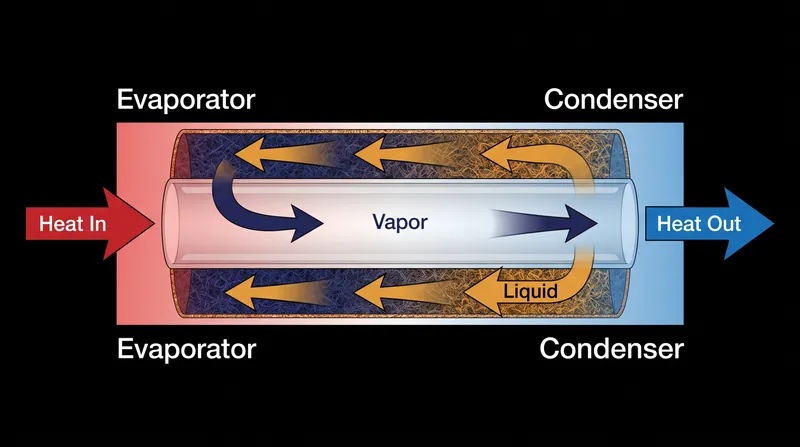

A heat pipe bypasses the slow, atom-to-atom energy transfer of solid metal by exploiting phase change. The device consists of three main components: a sealed vacuum envelope, a porous inner wick structure, and a small volume of working fluid. In consumer electronics, the envelope is typically copper and the fluid is distilled water.

Because the inside of the pipe is a vacuum, the water boils at a much lower temperature than it would at normal atmospheric pressure—often starting around 20 degrees Celsius. When the evaporator end of the pipe makes contact with a hot component, the water absorbs the thermal energy and instantly vaporizes into a gas.[1][4]

This phase change from liquid to gas absorbs a massive amount of energy, known as the latent heat of vaporization. Once the water turns to vapor, it creates a high-pressure zone at the hot end of the pipe.

This pressure differential forces the vapor to shoot down the hollow center of the tube toward the cooler end, known as the condenser, at near-frictionless speeds. This rapid vapor transit is what gives the heat pipe its massive thermal conductivity multiplier over solid metal, moving heat across the length of the device almost instantaneously.[1][2]

When the hot vapor reaches the cooler condenser section—which is usually attached to a finned aluminum heat sink and a cooling fan—it hits the colder metal walls. The vapor rapidly cools, releasing its stored latent heat into the heat sink, and condenses back into liquid water.

This heat rejection is highly efficient, dumping the thermal load far away from the sensitive processor or power amplifier that originally generated it. The continuous condensation maintains the low pressure at this end of the pipe, ensuring the vapor keeps flowing from the hot end.[2]

The final step in the cycle is returning the condensed liquid back to the hot end against the force of the vapor flow, and often against gravity. This is where the wick structure comes in. Most modern copper heat pipes use a sintered metal powder wick, which looks like a microscopic sponge lining the inner walls of the tube.

Through capillary action—the same physical force that allows a paper towel to soak up a spill or a plant to draw water up its stem—the wick pulls the liquid water back to the evaporator section to be boiled again.[2][4]

The capillary action must be strong enough to overcome the pressure drop of the moving vapor and any gravitational pull if the heat source is located above the condenser. Sintered copper wicks provide excellent capillary pumping force, allowing the heat pipe to operate in any orientation, including upside down.

However, if the heat load exceeds the capillary limit—meaning the water vaporizes faster than the wick can pump new liquid back—the evaporator will dry out. Once a heat pipe dries out, its thermal conductivity plummets to that of the thin copper envelope, effectively around 1/80th of its design capacity, and the attached component will rapidly overheat.[4][5]

In thin-and-light laptops and smartphones, engineers often flatten round heat pipes to fit inside millimeter-thin chassis. A standard 6-millimeter round heat pipe might be crushed down to just 2 millimeters thick. While this solves the spatial constraint, it severely restricts the internal vapor cavity and compresses the wick.

Flattening a 6-millimeter pipe to 2 millimeters reduces its maximum heat carrying capacity by roughly 13 percent. If a 3-millimeter pipe is flattened to the same 2-millimeter thickness, its capacity drops by a massive 30 percent. System architects must constantly balance the physical footprint of the device against the required thermal headroom.[4]

The choice of working fluid dictates the temperature range in which the pipe can operate. While water is ideal for electronics operating between 20 and 150 degrees Celsius, it is useless in cryogenic applications or deep space, where it would freeze solid. For those environments, engineers use fluids like ammonia or nitrogen. Conversely, for high-temperature industrial exhaust recovery or nuclear power conversion, liquid metals like sodium or lithium are used, capable of operating at temperatures exceeding 1,000 degrees Celsius without breaking down.[1][4][5]

The fundamental mechanics of the heat pipe have not changed since Grover's Los Alamos experiments, but the manufacturing precision has scaled exponentially. As processors push past 300-watt thermal design powers, the industry is shifting toward vapor chambers—essentially flattened, two-dimensional heat pipes that spread heat across a wide surface area rather than a linear path. Yet the underlying physics remain identical: harness the latent heat of vaporization, move it via pressure, and return it via capillary action.[3][4]
