How Larmor Precession and T1/T2 Relaxation Times Generate Tissue Contrast in Magnetic Resonance Imaging

On January 22, 2019, the publication of updated magnetic resonance imaging physics principles in clinical reference texts codified a shift in diagnostic radiography: the move toward quantitative relaxometry. Rather than simply looking at light and dark pixels on a scan, radiologists increasingly rely on the precise mathematical decay rates of hydrogen protons to map tissue pathology. This transition relies entirely on two physical metrics—T1 and T2 relaxation times—which dictate how water and fat behave inside a superconducting magnet.[5][9]

The human body is roughly 60 percent water, meaning it is densely packed with hydrogen atoms. Each hydrogen nucleus contains a single proton that spins on its axis, acting as a microscopic bar magnet. Under normal conditions, these protons point in random directions, canceling each other out. But when a patient enters an MRI scanner—typically generating a magnetic field of 1.5 or 3.0 Tesla, which is 30,000 to 60,000 times stronger than the Earth's magnetic field—a small fraction of these protons align with the scanner's primary magnetic field, designated as B0.[4][7]

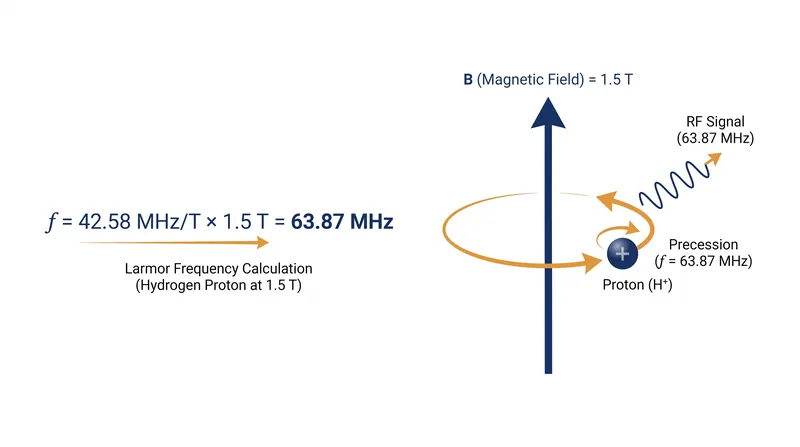

Once aligned, the protons do not sit perfectly still; they wobble, or precess, around the magnetic field lines like a spinning top losing momentum. The speed of this wobble is called the Larmor frequency, and it is directly proportional to the strength of the magnetic field. The precessional frequency of hydrogen at 1.0 Tesla is exactly 42.58 megahertz. Therefore, in a standard 1.5 Tesla clinical scanner, the protons precess at 63.87 megahertz, placing their resonance squarely in the radiofrequency spectrum.[4][5]

To generate an image, the scanner must disrupt this equilibrium. It does so by firing a brief radiofrequency pulse tuned exactly to the Larmor frequency of hydrogen. This pulse transfers energy to the aligned protons, flipping them 90 degrees away from the main magnetic field into a transverse plane. Simultaneously, the pulse forces the protons to precess in phase with one another, creating a rotating magnetic vector that the scanner's receiver coils can detect as a faint electrical signal.[2][6]

The moment the radiofrequency pulse turns off, the protons begin to shed the absorbed energy and return to their original alignment with the B0 field. This recovery process is called relaxation, and it occurs simultaneously along two different axes. The rate at which the protons realign with the main magnetic field is governed by T1 relaxation, while the rate at which they lose their synchronized transverse spin is governed by T2 relaxation.[1][6]

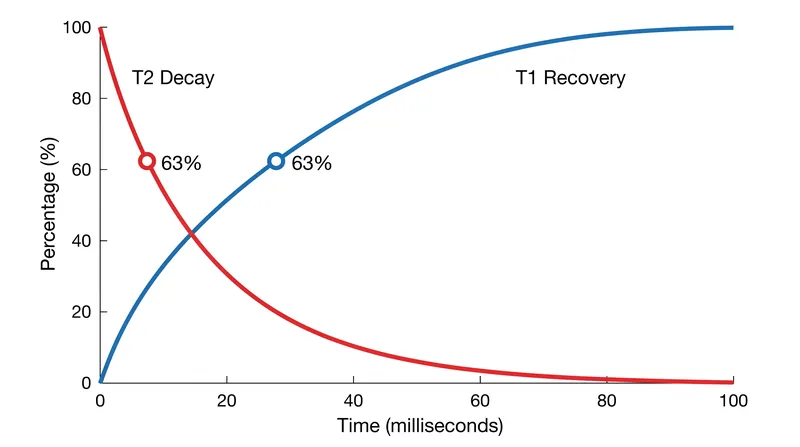

T1 relaxation, also known as spin-lattice relaxation, measures the time it takes for 63 percent of the longitudinal magnetization to recover. This process requires the protons to transfer their absorbed energy to the surrounding molecular environment, or the lattice. Because different tissues have different molecular structures, they absorb this energy at vastly different rates, creating the fundamental basis for anatomical contrast.[3][7]

Fat molecules are large, carbon-heavy structures that tumble at a rate closely matching the Larmor frequency, making them highly efficient at absorbing energy from the protons. As a result, fat has a very short T1 relaxation time—approximately 250 milliseconds at 1.5 Tesla—and recovers its magnetization rapidly. Water molecules, conversely, tumble too quickly to absorb the energy efficiently, resulting in a long T1 time of over 2,000 milliseconds for pure fluids like cerebrospinal fluid.[5][7]

Simultaneously, T2 relaxation—or spin-spin relaxation—dictates how quickly the protons lose their synchronized transverse spin. As the protons precess, their individual magnetic fields interact with one another, causing some to speed up and others to slow down. This dephasing leads to a rapid decay in the transverse signal. T2 is defined mathematically as the time it takes for 63 percent of the transverse magnetization to decay.[1][6]

Unlike T1, T2 relaxation is primarily driven by the physical proximity of the protons. In dense tissues or large macromolecules, the protons are packed closely together, leading to rapid dephasing and a short T2 time. In free water, the protons are highly mobile and spaced further apart, allowing them to remain in phase much longer. Consequently, fluids have long T2 times, while solid tissues like bone or muscle have very short T2 times.[2][8]

To exploit these differences, radiographers manipulate two key timing parameters: the Repetition Time (TR) and the Echo Time (TE). TR is the time between successive radiofrequency pulses, which controls how much T1 recovery is allowed to occur. TE is the time between the radiofrequency pulse and the measurement of the signal, which controls how much T2 decay is allowed to occur before the scanner records the data.[1][5]

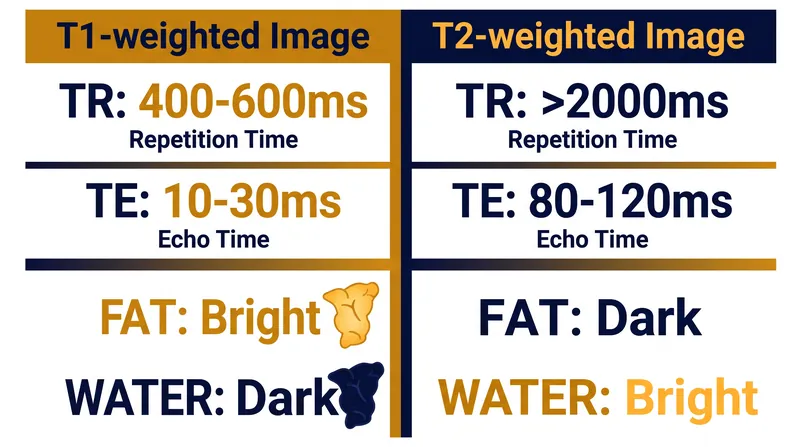

By setting a short TR of roughly 400 to 600 milliseconds and a short TE of 10 to 30 milliseconds, the scanner produces a T1-weighted image. In this configuration, tissues with short T1 times, such as subcutaneous fat, recover quickly and emit a strong signal, appearing bright white on the scan. Tissues with long T1 times, such as water, have not yet recovered and appear dark. T1-weighted images are highly prized for their anatomical detail, clearly delineating the boundaries between gray and white matter in the brain.[5][7]

Conversely, setting a long TR of over 2,000 milliseconds and a long TE of 80 to 120 milliseconds generates a T2-weighted image. The long TR minimizes T1 effects by allowing all tissues to fully recover, while the long TE maximizes T2 differences. In a T2-weighted scan, fluids with long T2 times retain their signal and appear bright white, while solid tissues decay quickly and appear dark. T2-weighted sequences are fundamentally fluid-sensitive, making them the primary tool for identifying edema, inflammation, and cystic lesions.[7][8]

When natural T1 and T2 differences are insufficient to isolate a pathology, clinicians introduce exogenous contrast agents, most commonly gadolinium-based compounds. Gadolinium is a heavy metal with seven unpaired electrons, giving it a powerful localized magnetic field. When injected into the bloodstream, it dramatically shortens the T1 relaxation time of nearby water protons, altering the local magnetic environment.[3]

Gadolinium does not emit a signal itself; rather, it acts as a catalyst that accelerates the T1 recovery of the surrounding hydrogen protons. Because gadolinium leaks out of abnormal blood vessels—such as those feeding a tumor or an area of active multiple sclerosis—these pathological regions accumulate the agent, recover their T1 magnetization rapidly, and light up brilliantly on a T1-weighted scan.[3][8]

Historically, magnetic resonance imaging has been a qualitative tool, relying on the relative brightness of adjacent pixels to spot abnormalities. However, the field is currently shifting toward quantitative relaxometry, where the scanner calculates the absolute T1 and T2 times for every voxel of tissue in milliseconds. This allows for the creation of parametric maps that can detect subtle microstructural changes in the myocardium or liver before macroscopic disease becomes visible.[8][9]

The diagnostic power of magnetic resonance imaging ultimately rests on a quantum mechanical delay. By precisely calculating the Larmor frequency and manipulating the TR and TE intervals, scanners translate the invisible thermodynamic recovery of hydrogen protons into a high-contrast anatomical map. As quantitative mapping software improves, the exact millisecond values of T1 and T2 relaxation will increasingly serve as direct biomarkers for cellular health, moving radiology from pattern recognition to precise biophysical measurement.[4][8]
