The Delta-V Savings and Time Penalty of Bi-Elliptic Transfers Over Hohmann Transfers

To move a spacecraft from a low parking orbit to a destination 15 times further out—a distance roughly equivalent to pushing a satellite from a low Earth orbit out past the 100,000-kilometer mark—mission planners face a strict physical budget. Every kilogram of propellant required for the maneuver displaces a kilogram of scientific payload or operational hardware.

For decades, the standard method for this transit has been the Hohmann transfer, a two-burn maneuver that traces a single half-ellipse between the starting and ending orbits. However, at extreme distances, the Hohmann transfer loses its mathematical supremacy to a counterintuitive alternative: the bi-elliptic transfer. By deliberately overshooting the target orbit and executing three engine burns instead of two, a spacecraft can actually reduce its total fuel consumption, trading a massive increase in transit time for a critical saving in propellant mass.[1][5]

The baseline for orbital maneuvers is the Hohmann transfer, first published by German engineer Walter Hohmann in 1925. It relies on two engine impulses. The first burn, executed at the initial low orbit, pushes the spacecraft into an elliptical path whose highest point—the apoapsis—exactly intersects the target orbit.

Once the vehicle coasts to that highest point, a second burn circularizes the path. Because it requires only two burns and traverses a single half-ellipse, it minimizes the time spent in transit. For most routine operations—such as moving from a 200-kilometer parking orbit to a 400-kilometer space station orbit—the Hohmann transfer remains the most efficient known method.[1][5]

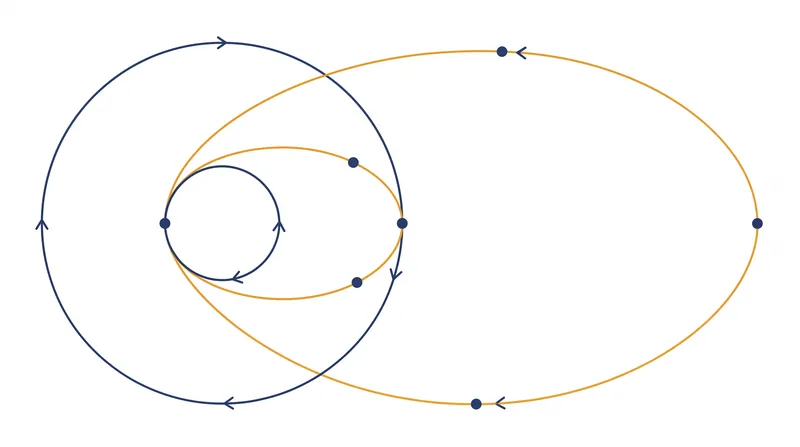

The bi-elliptic transfer, first theorized by Ary Sternfeld in 1934, breaks this two-burn paradigm by introducing a third impulse and a massive spatial overshoot. The first burn propels the spacecraft onto a highly eccentric ellipse that extends far beyond the final target orbit.

At the extreme edge of this intermediate orbit, where the spacecraft's velocity has slowed to a crawl, the engine fires a second time to raise the lowest point—the periapsis—of the orbit to match the target altitude. Finally, as the spacecraft falls back inward and reaches the target altitude, a third burn circularizes the orbit.[3][5]

The fuel savings of this three-burn maneuver stem from two principles of orbital mechanics. The first is the Oberth effect, which dictates that a rocket engine generates more useful kinetic energy when firing at high speeds. By executing a massive initial burn deep in the gravity well where velocity is highest, the spacecraft maximizes its energy gain.

The second principle acts like a gravitational lever: at the distant apoapsis of the intermediate orbit, the spacecraft is moving so slowly that even a tiny engine impulse drastically alters the geometry of the orbit. Changing the periapsis from millions of kilometers away requires a fraction of the energy needed to make the same change closer to the primary body.[1][5]

The mathematical crossover point between these two maneuvers is strictly defined by the ratio of the final target orbit radius to the initial parking orbit radius. According to trajectory modeling software documentation from a.i. solutions, "At an orbit ratio of approximately 11.94, the Hohmann transfer... loses its spot as the most efficient transfer."

Between a ratio of 11.94 and 15.58, the bi-elliptic transfer can be more efficient, depending on how far out the intermediate apoapsis is pushed. Once the target orbit is more than 15.58 times larger than the initial orbit, the bi-elliptic transfer requires less total delta-v—the absolute measure of impulse required for a maneuver—than the Hohmann transfer in every scenario.[1][3]

This fuel efficiency comes with a severe operational penalty: time. Because the bi-elliptic transfer requires the spacecraft to traverse two massive half-ellipses rather than one compact one, the transit duration expands exponentially.

A maneuver that might take days via a standard Hohmann transfer can easily take months or even years using a bi-elliptic trajectory, depending on how far the intermediate apoapsis is extended. This massive delay restricts the bi-elliptic transfer primarily to robotic probes, deep-space cargo shipments, or end-of-life satellite disposal maneuvers where time is abundant but propellant mass is strictly limited.[1][5]

In the broader architecture of space transportation, the choice between Hohmann and bi-elliptic transfers dictates vehicle design and mission capability. A mission relying on a bi-elliptic transfer can launch on a smaller rocket or carry heavier scientific instruments, provided the onboard systems can survive the extended transit time through deep space radiation environments.

As deep-space infrastructure scales toward lunar and Martian logistics, these high-ratio orbital transfers will increasingly govern how heavy cargo is distributed across the solar system, balancing the absolute limits of chemical propulsion against the operational costs of waiting.[2][4]

Beyond the time penalty, the three-burn architecture introduces a distinct mechanical vulnerability. A Hohmann transfer completes its final burn relatively quickly, while the spacecraft's propulsion systems are still thermally stable. In contrast, a bi-elliptic transfer forces the vehicle to endure a prolonged cold coast out to the distant apoapsis before the second burn, followed by another long coast back inward for the third.

Ensuring that propellants do not freeze or boil off during these extended periods, and guaranteeing that the engine will reliably reignite after months of dormancy, requires complex thermal management systems that can offset some of the initial mass savings.[2][4]
