The Mechanics of Hybrid Powertrains: Comparing Series, Parallel, and Series-Parallel Architectures

When a driver presses the accelerator of a modern vehicle, the immediate response—the torque, the fuel consumed, the emissions generated—depends entirely on the hidden architecture connecting the energy source to the wheels. For decades, this was a simple mechanical pathway from a combustion engine to a transmission. Today, as the automotive industry navigates the transition toward full electrification, hybrid powertrains have become the critical bridge. Yet, not all hybrids are engineered equally. The specific arrangement of electric motors, batteries, and combustion engines dictates whether a vehicle excels in stop-and-go city traffic or sustained highway cruising.

Understanding these systems requires looking past marketing terminology to the fundamental physics of power delivery. At its core, a hybrid electric vehicle integrates an internal combustion engine with an electric propulsion system. The goal is to operate the combustion engine at its peak thermal efficiency while relying on the electric motor to handle the transient loads—like accelerating from a dead stop—where gas engines are notoriously inefficient. By blending these power sources, engineers can extract significantly more useful work from every drop of fuel.

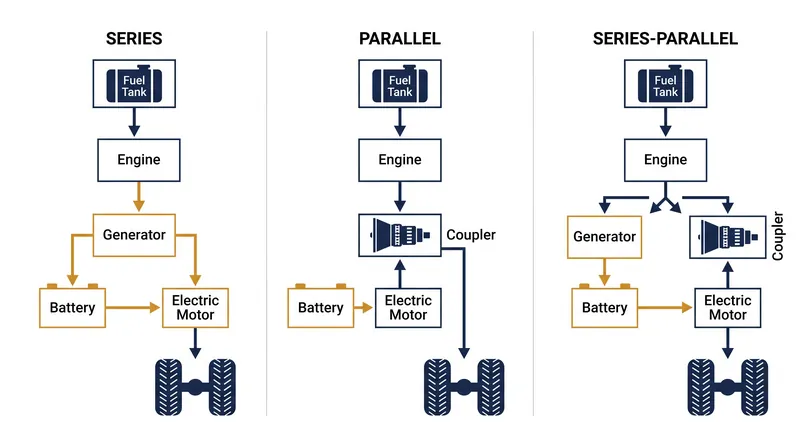

Engineers have developed three primary architectures to achieve this balance: series, parallel, and series-parallel, which is often referred to as a power-split design. Each represents a different philosophy of energy management, prioritizing either mechanical simplicity, highway efficiency, or maximum flexibility. The choice of architecture ripples outward through the entire vehicle design, influencing battery sizing, control software complexity, and ultimately, the vehicle's manufacturing cost and carbon footprint.

In a series hybrid architecture, the internal combustion engine has no physical mechanical connection to the drive wheels. Instead, the engine operates strictly as an onboard electrical generator. It burns fuel to turn a generator, which produces electricity that either charges the battery pack or flows directly to an electric traction motor. That electric motor is solely responsible for propelling the vehicle forward, effectively making the vehicle an electric car that carries its own power plant.[1]

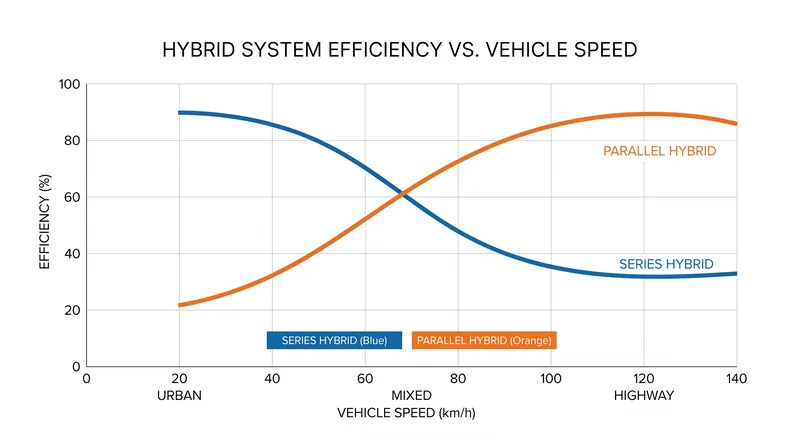

This decoupled design allows the combustion engine to run continuously at its most efficient revolutions per minute, regardless of how fast the vehicle is actually moving. According to parametric analyses of drivetrain efficiencies, this makes series hybrids exceptionally efficient in urban environments characterized by frequent stops and low speeds. Because the electric motor handles all propulsion, the vehicle delivers the smooth, instant torque characteristic of a battery-electric vehicle, providing a seamless driving experience without gear shifts.[4]

However, the series architecture introduces inherent energy conversion losses. Mechanical energy from the engine must be converted into electrical energy by the generator, and then back into mechanical energy by the traction motor. At sustained highway speeds, where a direct mechanical linkage would be highly efficient, these multiple conversion steps result in a noticeable drop in overall system efficiency. Furthermore, the electric motor must be sized large enough to handle the vehicle's maximum power requirements independently, which can increase the overall weight and cost of the drivetrain.[2]

The parallel hybrid architecture takes the opposite approach to power delivery. Both the internal combustion engine and the electric motor are mechanically connected to the transmission and can drive the wheels simultaneously. The electric motor is typically sandwiched between the engine and the transmission, allowing both power sources to blend their output on a single driveshaft. This means the vehicle can be propelled by the engine alone, the motor alone, or both working in tandem.[1]

This configuration minimizes energy conversion losses during highway driving. Because the engine can drive the wheels directly, the system avoids the generator-to-motor conversion penalty inherent in series designs. When maximum acceleration is required, the electric motor provides a torque boost, allowing automakers to use a smaller, more fuel-efficient combustion engine without sacrificing performance. This makes parallel hybrids particularly well-suited for long-distance commuting and sustained high-speed travel.[4]

The trade-off for this mechanical directness is a heavy reliance on complex transmission systems—often multi-speed automatics or dual-clutch setups—to keep the engine in its optimal power band. In heavy urban traffic, the parallel system is generally less efficient than a series setup because the engine cannot operate entirely independently of the vehicle's speed. The mechanical coupling means the engine's RPM remains tied to the wheel speed, limiting the system's ability to maintain peak thermal efficiency during highly variable driving conditions.[1]

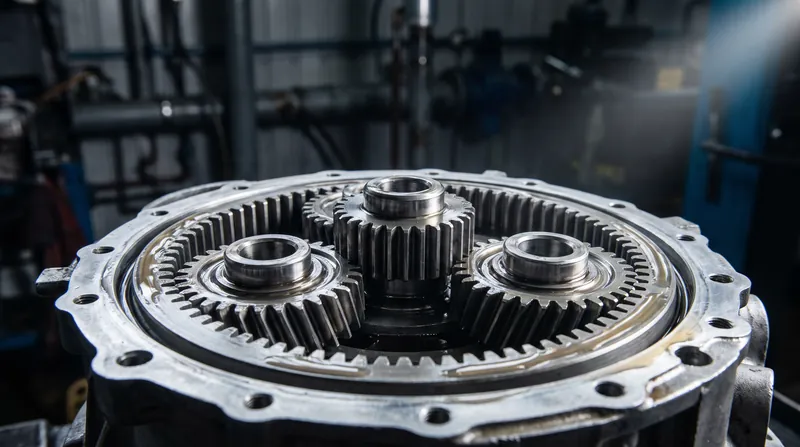

To capture the urban efficiency of a series system and the highway efficiency of a parallel system, engineers developed the series-parallel, or power-split, architecture. This design utilizes a planetary gearset to continuously divide the power from the combustion engine. The engine's output can be routed mechanically to the wheels, electrically to a generator, or a combination of both simultaneously, depending on what the driving situation demands.[1]

This architecture represents the most sophisticated approach to hybrid energy management. An onboard computer constantly evaluates driving conditions, battery state of charge, and power demand to determine the optimal power flow. At low speeds, it can operate as a pure electric vehicle or a series hybrid. At highway speeds, it locks into a parallel configuration for maximum mechanical efficiency, seamlessly transitioning between modes without driver intervention.[1]

The result is a highly adaptable powertrain that maintains a broad window of optimal efficiency across diverse driving cycles. Reviews of passenger EV technologies highlight that series-parallel systems consistently deliver the highest overall fuel economy in mixed driving conditions. The planetary gearset essentially functions as an electronic continuously variable transmission, blending power sources smoothly without the discrete gear changes of a traditional transmission, though this comes at the cost of significant mechanical and software complexity.[2]

The principles governing these architectures extend far beyond passenger cars. In the aerospace sector, researchers are currently evaluating series and parallel hybrid propulsion systems for Unmanned Aerial Vehicles implementing distributed propulsion. In these applications, the weight penalty of a series system's dual electrical machines must be carefully weighed against the aerodynamic benefits of decoupling the power generation from the thrust-producing rotors, highlighting how these fundamental engineering trade-offs scale across different modes of transport.[3]

Across all three architectures, the physical hardware is only half the equation. The true differentiator in modern hybrid powertrains is the control software. The algorithms governing when to start the engine, how much power to draw from the battery, and how aggressively to apply regenerative braking dictate the system's real-world performance. As processing power increases, these control strategies are becoming predictive, using GPS topography and real-time traffic data to optimize battery usage for the specific route ahead.

While battery-electric vehicles represent the ultimate endpoint for zero-emission transportation, hybrid architectures remain a vital transitional technology. They address the immediate infrastructure constraints of charging networks while significantly reducing petroleum consumption today. By understanding the mechanical realities of series, parallel, and series-parallel systems, the transportation industry can deploy the right technology for the right use case, optimizing the global fleet for both efficiency and practical utility.
