The Mechanics of Flettner Rotors: How Spinning Cylinders Are Decarbonizing Global Shipping

When the maritime industry discusses a return to wind-powered shipping, the popular imagination often conjures images of 19th-century clipper ships outfitted with massive canvas sails. The reality of modern wind-assisted ship propulsion (WASP) is far more industrial and aerodynamic. The most effective "sails" currently being deployed on commercial bulk carriers and tankers are not sails at all, but towering, spinning metal cylinders known as Flettner rotors. These devices do not catch the wind; they interact with it fluidly, utilizing a principle of physics to generate forward thrust and reduce the immense fuel burden of global shipping.[3]

The concept is not entirely new. The technology is named after Anton Flettner, a German aviation engineer who first successfully demonstrated the system on a retrofitted schooner, the Buckau, in 1924. While the Buckau proved that spinning cylinders could propel a ship across the Atlantic, the technology was ultimately shelved. In an era of cheap, abundant diesel fuel, the mechanical complexity of the rotors could not compete with the simplicity of the internal combustion engine. It took nearly a century, and the looming threat of catastrophic climate change, for the maritime industry to resurrect Flettner's design.[1]

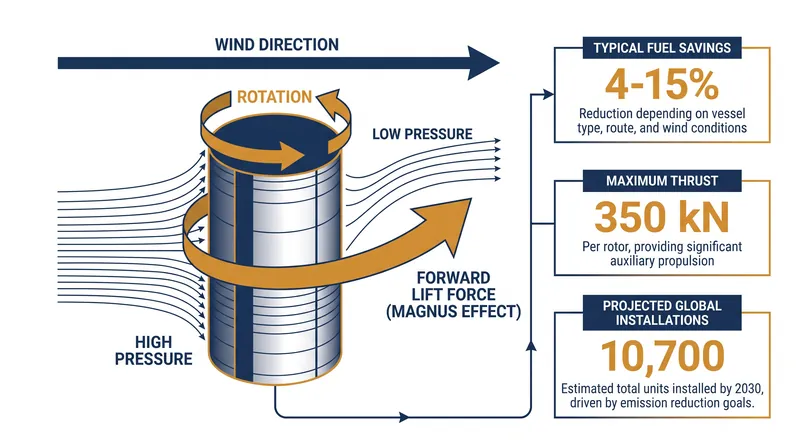

The core mechanism driving a Flettner rotor is the Magnus effect, an aerodynamic phenomenon formally described by physicist Heinrich Gustav Magnus in 1852. The principle governs the behavior of any spinning object moving through a fluid—it is the same force that causes a tennis ball to curve or a baseball to slice. When a vertical cylinder spins in a crosswind, the friction between the cylinder's surface and the air drags a thin layer of air around with it.[1]

This rotation fundamentally alters the local air pressure. On the side of the cylinder spinning in the same direction as the wind, the airflow accelerates, causing a drop in air pressure. On the opposite side, where the cylinder spins against the wind, the airflow decelerates, creating a zone of high pressure. Nature abhors a pressure imbalance, and the resulting equalization generates a powerful aerodynamic lift force that pushes the cylinder from the high-pressure side toward the low-pressure side. By orienting these cylinders vertically on a ship's deck, naval architects can direct this lift force forward, translating it into auxiliary propulsion.[1][3]

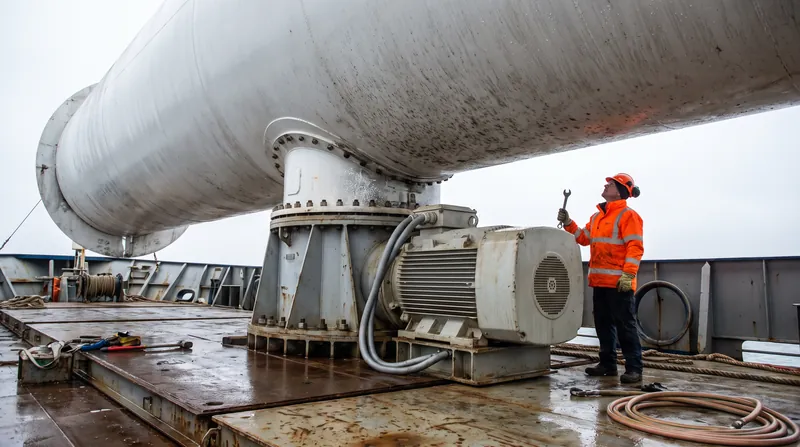

Unlike traditional soft sails, Flettner rotors are highly engineered, active systems. They do not passively catch the breeze; they must be mechanically driven to develop lift. Modern rotors are constructed from lightweight composite materials to minimize top-heaviness and are powered by internal electric motors. These motors dictate the rotational speed of the cylinder, which must be continuously adjusted to match the prevailing wind conditions and maximize the Magnus effect.[3]

The power dynamics of this system are highly favorable. A modern rotor, which can stand up to 35 meters tall and 5 meters in diameter, typically draws between 40 and 143 kilowatts of electrical power to maintain its spin. However, the net energy gain far exceeds this consumption. Advanced rotor technology can generate up to 350 kilonewtons of forward thrust. This massive physical push effectively offloads a significant portion of the work from the ship's main diesel engines, allowing them to throttle down while maintaining the vessel's cruising speed.[3]

The primary metric for evaluating WASP technology is the reduction in fuel consumption and, consequently, greenhouse gas emissions. Manufacturers and early adopters frequently cite headline fuel savings of up to 25%. However, a systems-level analysis of operational data reveals a more nuanced picture. Savings are highly dependent on vessel size, rotor configuration, and, most importantly, the prevailing wind conditions along specific trade routes.[2][3]

A comprehensive review of 25 confirmed rotor sail installations between 2010 and 2025 indicates that typical fuel savings range between 4% and 15% under standard operational conditions. To understand the true impact of the technology, it is necessary to normalize these figures to a per-rotor basis. For instance, a bulk carrier operating between Egypt and France equipped with four Flettner rotors achieved a 22.28% reduction in annual fuel consumption.[1][3]

Similarly, a simulation of an MR tanker on a trans-Pacific route utilizing two 35-meter rotors projected annual fuel savings of nearly 600 metric tonnes. When these aggregate savings are divided by the number of active units, the data suggests that a single modern Flettner rotor typically contributes a 4% to 6% reduction in fuel use. Therefore, achieving the ambitious 20% to 25% decarbonization targets requires multi-rotor arrays rather than single-unit retrofits.[1][2]

The efficiency of these multi-rotor arrays is not static; it fluctuates continuously with the weather. Because Flettner rotors rely on crosswinds to generate the Magnus effect, their performance is highly sensitive to wind angle and speed. In a direct headwind, the rotors provide no forward thrust and can actually increase aerodynamic drag if not powered down. Conversely, strong beam winds—winds blowing perpendicular to the ship's hull—yield the maximum propulsive benefit.[1][4]

This reliance on precise wind angles has elevated the importance of undisturbed wind measurement. Historically, ships used wind data primarily for basic navigation and safety. For a WASP-enabled vessel, wind is a direct propulsion input. Advanced lidar-based remote wind monitoring systems are increasingly being integrated into ship operations to capture upstream wind conditions, allowing automated control systems to adjust rotor RPM predictively for maximum thrust.[4]

Despite their proven aerodynamic efficiency, Flettner rotors are not a universal solution for the global fleet. Their installation requires substantial free deck space, making them highly suitable for bulk carriers, Ro-Ro vessels, and tankers. However, they are largely impractical for container ships, where cargo occupies the vertical airspace and blocks the free flow of wind required for the rotors to function effectively.[2]

Furthermore, the rotors must be structurally supported to withstand immense heeling moments—the rotational forces that attempt to tip the ship over. Engineering teams must ensure that the installation does not compromise the vessel's stability. Some modern designs incorporate hydraulic tilting mechanisms, allowing the massive cylinders to fold horizontally to clear bridges or facilitate port loading operations, adding mechanical complexity to the vessel's infrastructure.[3]

The deployment of Flettner rotors represents one node in the broader regulatory and economic chain of maritime decarbonization. As the International Maritime Organization (IMO) tightens its Carbon Intensity Indicator (CII) framework and the European Union expands its Emissions Trading System (ETS) to include shipping, the financial penalty for carbon emissions is rising sharply. By reducing fuel consumption, Flettner rotors not only lower direct operating costs but also reduce exposure to these carbon levies.[1][2]

The WASP market is transitioning from experimental trials to commercial scaling. Industry projections suggest that between 3,700 and 10,700 wind-assisted systems could be installed globally by 2030. While alternative fuels like green methanol and ammonia will ultimately be required to reach absolute zero emissions, their current scarcity and high cost make efficiency technologies indispensable in the interim. Flettner rotors provide an immediate, verifiable mechanism to reduce the carbon intensity of the existing fleet, serving as a critical bridge in the maritime industry's multi-decade energy transition.[4]
