The Mechanics of TRISO Fuel: How Triple-Coated Uranium Particles Prevent Nuclear Meltdowns

For decades, the fundamental safety architecture of a nuclear power plant has relied on active systems: pumps, valves, and backup generators designed to keep the reactor core cool. If those systems fail, the fuel melts. But a quiet revolution in materials science is shifting that safety burden away from external machinery and into the fundamental physics of the fuel itself. The technology is called TRi-structural ISOtropic (TRISO) particle fuel, and it is widely considered the most robust nuclear fuel on earth.[1]

At first glance, TRISO fuel does not look like a breakthrough in industrial energy. A single TRISO particle is roughly one millimeter in diameter, resembling a small, dark metallic poppy seed. Yet, within that microscopic volume lies a highly engineered containment system capable of withstanding extreme temperatures, severe neutron bombardment, and corrosive environments that would destroy conventional reactor fuels.[1]

To understand why TRISO represents a paradigm shift, one must look at the baseline it replaces. Conventional nuclear fuel consists of uranium dioxide (UO2) pressed into centimeter-sized ceramic pellets. These pellets are stacked inside four-meter-long tubes made of a zirconium alloy known as Zircaloy, which are then bundled into fuel assemblies. The Zircaloy cladding acts as the primary barrier preventing radioactive fission products from escaping into the reactor's coolant.

This traditional architecture has a structural vulnerability tied to heat transfer. UO2 is a ceramic, meaning it conducts heat poorly. In a standard pressurized water reactor, the coolant outside the Zircaloy tube might sit at 300 degrees Celsius, but the center of the uranium pellet can reach 1,200 degrees Celsius. This massive centerline temperature gradient places immense stress on the fuel pellet, causing it to expand and crack over its operational lifetime.

The Zircaloy cladding itself also has strict thermal limits. If cooling is lost and the fuel temperature rises to roughly 1,000 to 1,200 degrees Celsius, the zirconium begins to react exothermically with the surrounding steam. This reaction generates significant amounts of hydrogen gas, creating the conditions for a chemical explosion—the exact failure mode that compromised the containment structures at Fukushima.

TRISO fuel bypasses this vulnerability through a strategy of extreme subdivision. Instead of relying on a single massive steel pressure vessel and thousands of long Zircaloy tubes, TRISO encapsulates the nuclear material at the microscopic level. A typical high-temperature gas-cooled reactor might contain a billion individual TRISO particles, meaning the fissionable mass is divided into millions of discrete, self-contained pressure vessels.[1][3]

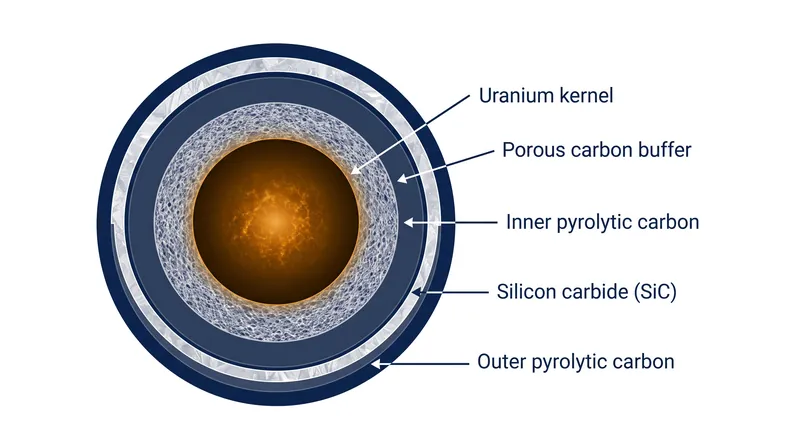

The anatomy of a TRISO particle begins at its center with a fuel kernel, typically composed of uranium oxycarbide (UCO) or uranium dioxide. This kernel is where the actual nuclear fission takes place. Because the kernel is so small, heat moves out of it rapidly, eliminating the severe centerline temperature gradients that plague traditional fuel pellets.[1]

Surrounding the kernel is the first of four distinct coating layers: a porous carbon buffer. As the uranium atoms split, they generate fission product gases and cause the kernel to swell. The porous buffer acts as a microscopic gas chamber, absorbing the physical recoil of the fission products and providing sacrificial volume to accommodate the internal pressure buildup without fracturing the outer shells.

The next layer is composed of dense inner pyrolytic carbon. This layer serves a dual purpose: it seals the porous buffer and protects the inner fuel kernel from the highly corrosive gases used during the chemical deposition of the subsequent layers. It also acts as a structural foundation for the particle's most critical component.

The third layer is a shell of silicon carbide (SiC), a highly durable ceramic that serves as the particle's primary pressure vessel. The SiC layer is engineered to retain both metallic and gaseous fission products at elevated temperatures, preventing them from escaping into the reactor environment. It is the structural backbone that gives TRISO its remarkable resilience against mechanical and thermal stress.[1]

The final layer is an outer shell of dense pyrolytic carbon. This outer coating protects the silicon carbide from external chemical attacks and provides a compliant boundary layer. Crucially, as the inner and outer pyrolytic carbon layers shrink slightly under neutron irradiation, they apply compressive stress to the rigid silicon carbide shell, reinforcing its structural integrity against the rising internal gas pressure.

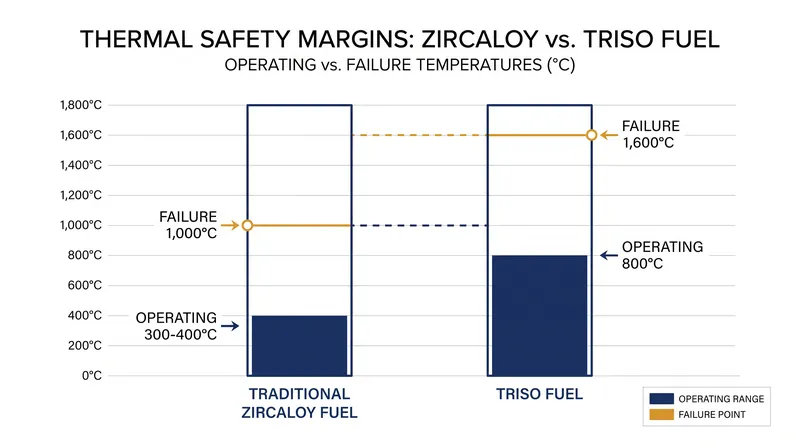

The resulting thermal resilience fundamentally alters the safety margins of reactor operation. While traditional Zircaloy-clad fuel operates with a safety margin of roughly 600 to 700 degrees Celsius before catastrophic cladding failure, TRISO fuel can operate at more than double the baseline temperature—around 800 degrees Celsius—while still maintaining a larger absolute thermal safety margin of 800 degrees Celsius before structural degradation begins at 1,600 degrees Celsius.[1][3]

In practice, these microscopic particles are not loaded into a reactor loosely. They are embedded into a graphite matrix and formed into larger fuel elements. Depending on the reactor design, these take the shape of either cylindrical compacts or billiard ball-sized spheres known as pebbles. A single pebble-bed reactor might circulate hundreds of thousands of these spheres, allowing for continuous online refueling.[1][2]

Despite its physical elegance, TRISO fuel faces significant manufacturing hurdles. The production process relies on fluidized-bed chemical vapor deposition, where the kernels are suspended in a gas flow and powder-coated layer by layer. Achieving uniform thickness across billions of microscopic spheres requires immense precision, and any deviation results in rejected batches.

The economics of these reject rates compound rapidly. TRISO kernels typically use High-Assay Low-Enriched Uranium (HALEU), which is significantly more expensive than standard reactor fuel. If a batch of coated particles fails quality control, the HALEU cannot simply be ground up and reused; it requires complex chemical deprocessing to recover the uranium, adding substantial cost to the manufacturing pipeline.[3]

Nevertheless, commercial momentum is accelerating. Advanced reactor developers like X-energy and BWXT are building dedicated TRISO fabrication facilities to supply the next generation of high-temperature gas reactors. Major technology companies are actively investing in TRISO-fueled reactor designs to secure reliable, carbon-free baseload power for their rapidly expanding artificial intelligence data centers.[2]

Beyond operational safety, TRISO offers a distinct advantage for long-term waste management. The silicon carbide encapsulation creates a spent fuel form factor that is inherently ready for geological storage. Unlike traditional fuel pellets that crumble and degrade, the ceramic layers of a TRISO particle are designed to retain their structural integrity and contain radioactive isotopes for millennia.[3]

By engineering safety directly into the microscopic structure of the fuel, TRISO eliminates the possibility of a conventional meltdown. It represents a shift from managing nuclear hazards with complex, active machinery to containing them with passive, fundamental materials science—paving the way for smaller, hotter, and more versatile reactors.[1][3]
