How Hierarchical Navigable Small Worlds (HNSW) Enables Fast Approximate Nearest Neighbor Search in Vector Databases

Traditional database architects often assert that finding the most relevant piece of information requires scanning every available record to guarantee exact precision. In a standard relational database, this brute-force approach works. But in the high-dimensional space of modern artificial intelligence, where a single piece of text is represented by a vector of 1,536 distinct numbers, exact search becomes computationally paralyzing. The Hierarchical Navigable Small World (HNSW) algorithm proves that by abandoning the guarantee of absolute exactness and instead navigating a multi-layered probability graph, systems can retrieve the correct answer with roughly 99 percent accuracy while reducing search latency from minutes to milliseconds.[5][8]

To understand why HNSW is necessary, one must first understand the "curse of dimensionality." When an AI model converts a document into a vector embedding, it plots that document as a coordinate in a space with hundreds or thousands of dimensions. To find the most similar documents to a user's query, the system must find the vectors physically closest to the query vector. The exact method for this is k-Nearest Neighbors (k-NN), which calculates the distance between the query and every single point in the database.[4][7]

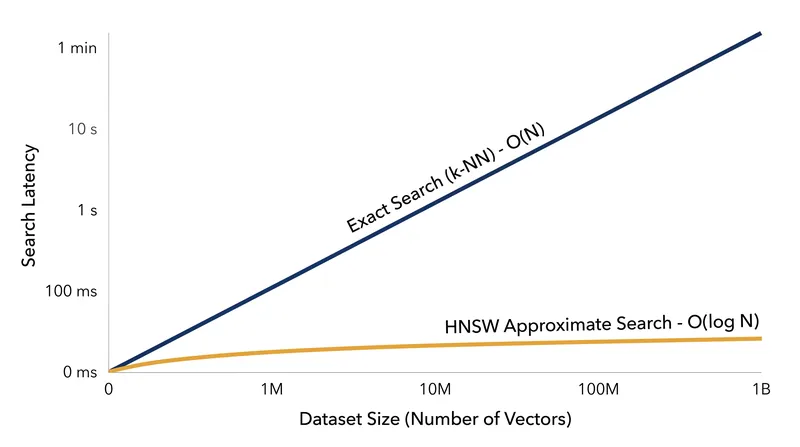

If a database contains one billion vectors, a single k-NN query requires one billion complex distance calculations. The time complexity is linear, expressed mathematically as O(N). As the dataset grows, the search time grows at the exact same rate. For real-time applications like chatbots or recommendation engines, waiting several seconds—let alone minutes—for a database to scan a billion records is unacceptable.[1][5]

The solution is Approximate Nearest Neighbor (ANN) search, a category of algorithms that trade a tiny fraction of accuracy for a massive increase in speed. Among ANN algorithms, HNSW has emerged as the industry standard. Introduced in a 2016 paper by researchers Yury Malkov and Dmitry Yashunin, HNSW achieves logarithmic time complexity, or O(log N). This means that if a dataset grows from one million to one billion records, the search time does not increase by a factor of a thousand; it merely requires a few extra computational steps.[1][2]

HNSW builds its speed on two foundational computer science concepts: the "small world" network and the "skip list." A small world network is a graph where most nodes are not directly connected, but any node can be reached from any other node in a small number of steps—the mathematical equivalent of the "six degrees of separation" concept. In a vector database, each vector is a node, and it is connected by edges to its closest neighbors.[2][4]

If a graph is "navigable," a search algorithm can start at any random node and greedily move to the adjacent node that is closest to the target query. It repeats this process, hopping from node to node, until it reaches a point where no adjacent node is closer to the target than the current one. This is a local minimum, and in a well-constructed small world graph, it is highly likely to be the true nearest neighbor.[5][6]

However, a flat small world graph has a fatal flaw: if the starting point is far from the target, the algorithm must take many small steps to cross the graph, which is slow. Furthermore, it can easily get trapped in a local cluster of nodes, missing the true nearest neighbor entirely. This is where Malkov and Yashunin introduced the "Hierarchical" element, drawing inspiration from skip lists.[1][5]

HNSW constructs multiple layers of graphs stacked on top of each other. The bottom layer, Layer 0, contains every single vector in the database and highly dense, short-range connections. The layer above it contains only a fraction of those nodes, with longer-range connections. This pattern continues upward. The top layer might contain only a handful of nodes connected by massive, graph-spanning links.[3][6]

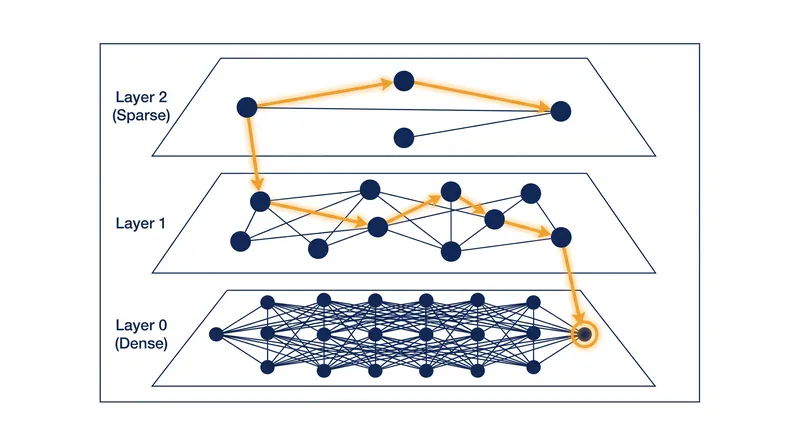

When a query enters an HNSW index, the search begins at the very top layer. Because the top layer has so few nodes and such long links, the algorithm can take giant leaps across the vector space, quickly zeroing in on the general neighborhood of the target. Once it finds the local minimum at the top layer, it drops down to the exact same node in the layer below.[4][7]

At this lower layer, the connections are shorter and the nodes are denser. The algorithm resumes its greedy search, taking smaller, more precise steps toward the target. It finds the new local minimum, drops down another layer, and repeats the process. By the time it reaches Layer 0, it is already in the immediate vicinity of the true nearest neighbor, requiring only a few final micro-adjustments to find the exact closest matches.[5][6]

This hierarchical descent is what gives HNSW its O(log N) speed. The long links at the top layers bypass the need to scan millions of irrelevant vectors, effectively eliminating the vast majority of the database from consideration within microseconds. The structure acts as a high-speed funnel, guiding the query directly to the correct cluster.[1][3]

Building this multi-layered graph requires careful orchestration during data insertion. When a new vector is added to the database, the algorithm must decide how high up the hierarchy it should reach. HNSW assigns a maximum layer to each new node randomly, using an exponentially decaying probability distribution. This ensures that while every node exists at Layer 0, only a rare few make it to the top layers to serve as long-range "highways."[2][5]

Once a node's maximum layer is assigned, the algorithm inserts it layer by layer, starting from the top. At each layer, it performs a search to find the node's nearest neighbors and establishes connections (edges) to them. Two critical parameters govern this process: 'M', which dictates the maximum number of connections a node can have at any given layer, and 'efConstruction', which determines how wide of a net the algorithm casts when searching for neighbors during insertion.[5][6]

A higher 'M' value creates a denser graph, which improves search accuracy but consumes more memory and slows down the insertion process. Typical values for 'M' range from 16 to 64, depending on the dimensionality of the data and the specific recall requirements of the application. The 'efConstruction' parameter controls the build time; setting it higher results in a higher-quality graph with better recall, but at the cost of significantly longer indexing times.[4][5]

At query time, a third parameter comes into play: 'efSearch'. This controls the size of the dynamic list of nearest neighbors the algorithm maintains while navigating the graph. A larger 'efSearch' forces the algorithm to explore more alternative paths, increasing the likelihood of finding the absolute closest match (higher recall) at the expense of slightly higher latency. Data scientists constantly tune these three parameters to find the optimal balance for their specific workloads.[3][7]

While HNSW is unrivaled in its combination of speed and recall, it is not without limitations. Its primary drawback is memory consumption. Unlike flat indexes or quantization methods that compress vectors, HNSW requires the entire graph structure—including all nodes and their multi-layered connections—to be stored in Random Access Memory (RAM) for fast traversal. For databases housing billions of high-dimensional vectors, this memory overhead can become a significant infrastructure cost.[5][8]

To mitigate this, modern vector databases often combine HNSW with Product Quantization (PQ) or scalar quantization. These techniques compress the vectors themselves, reducing the memory footprint while relying on the HNSW graph structure to handle the routing. This hybrid approach allows platforms like Milvus and Pinecone to scale to billions of vectors without requiring economically unviable amounts of server memory.[5][6]

The mathematical elegance of HNSW has made it the default indexing algorithm for the generative AI era. By structuring data not as a flat list to be scanned, but as a navigable, multi-layered topography, it bypasses the computational limits of high-dimensional space. It is the silent engine that allows an AI to read a prompt, instantly retrieve the relevant context from a sea of billions of documents, and generate an informed response before the user even finishes blinking.[1][8]
