The Bus, the Post-Boost Vehicle, and the Reentry Vehicles: How a MIRV System Delivers Multiple Warheads to Separate Targets

Early ballistic missiles functioned like sniper rifles, delivering a single payload to a single aimpoint. By contrast, a Multiple Independently Targetable Reentry Vehicle (MIRV) operates more like a precision dispenser. As defined by standard encyclopedic references, a MIRV is "an exoatmospheric ballistic missile payload containing several warheads, each capable of being aimed to hit a different target." The mechanism drops each warhead onto a distinct, pre-programmed trajectory, fundamentally altering the mathematics of nuclear deterrence by allowing one launch to blanket a broad area.[1][5]

The core of this capability is the post-boost vehicle, commonly referred to by engineers and strategists as the "bus." In a traditional single-warhead system, the main rocket booster throws the payload directly toward its destination. In a MIRV system, the booster's job is simply to deliver the bus into a free-flight suborbital ballistic path outside the Earth's atmosphere, leaving the actual targeting to the smaller vehicle.[1][5][6]

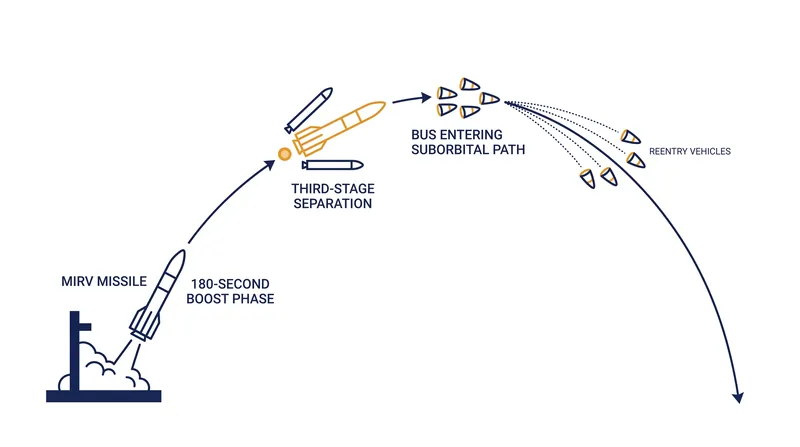

The launch sequence begins with the boost phase, where powerful solid-fuel rocket motors push the missile through the atmosphere. For systems like the U.S. Minuteman III, this phase lasts approximately 180 seconds. Once the third-stage thrust terminates, the post-boost vehicle separates from the main rocket and begins its independent operation in the vacuum of space.[4][5]

Once separated, the bus relies on an onboard computerized inertial guidance system and a network of small rocket thrusters. It aligns itself with the calculated trajectory for its first target and releases a single reentry vehicle (RV). This release must be perfectly calibrated, as any slight deviation in the vacuum of space translates to a massive miss distance upon returning to Earth.[5][6]

After the first release, the bus fires its thrusters to back away and change course. It maneuvers to a new trajectory, aligns with the second target, and releases the next warhead. This sequence repeats until the bus has exhausted its payload. Because the bus relies on a limited supply of onboard propellant, Wikipedia notes that this constraint "limits the distances between targets of individual warheads to perhaps a few hundred kilometers."[1][5]

Alongside the live nuclear warheads, the post-boost vehicle is designed to deploy penetration aids. While backing away between RV releases, the bus ejects lightweight decoys, aluminized balloons, and electronic chaff. These countermeasures travel alongside the actual warheads, creating a cluster of radar signatures designed to overwhelm and confuse ground-based anti-ballistic missile defense systems.[1][5]

Once deployed, the individual reentry vehicles fall back toward Earth in free-fall ballistic trajectories. The RVs, typically shaped as elongated cones to survive the extreme heat and friction of atmospheric reentry, travel at hypersonic speeds. The nuclear warheads inside are armed in flight and set to detonate either as air bursts or ground bursts upon reaching their destinations.[4][5]

The military rationale for developing this complex mechanism was driven by the physics of nuclear blasts. Blast pressure diminishes as the cube of the distance from the detonation; at a distance of four kilometers, the pressure is only 1/64th of what it is at one kilometer. Consequently, spreading several smaller warheads across a target area produces significantly more aggregate damage than a single massive warhead of equivalent total yield.[5][6]

The United States first successfully tested MIRV technology in 1968 and deployed it in 1970 on the Minuteman III intercontinental ballistic missile. The new system replaced the older Minuteman II's single 1.2-megaton W56 warhead with three smaller W62 warheads, each yielding approximately 170 kilotons. The reduction in individual explosive power was offset by the system's increased accuracy and the ability to strike three separate targets.[4][5]

The deployment of MIRVs triggered a rapid expansion in deployed nuclear warheads during the Cold War. The U.S. Peacekeeper missile, introduced later and decommissioned in 2005, was capable of carrying up to 10 warheads on a single bus. Modern submarine-launched systems, such as the Trident II operated by the U.S. and Royal Navies, can carry up to 12 warheads per missile, though treaty limits often restrict the actual number loaded.[1][5]

Defending against a MIRV-equipped missile presents a severe mathematical disadvantage for the targeted nation. As the Atlantic Council notes in its assessments of homeland defense, intercepting a MIRV after the bus has deployed its payload requires a separate interceptor for every incoming warhead and decoy. This dynamic heavily incentivizes destroying the missile during its boost phase, before the post-boost vehicle can separate and begin its dispensing sequence.[3][5][6]

Today, the technology remains a critical benchmark of strategic capability. All recognized nuclear-weapon states except Pakistan are confirmed to have deployed MIRV systems. The proliferation of the technology continues to alter regional security dynamics, with analysts at Beyond Parallel warning that North Korea's ongoing missile development programs are actively pursuing multiple reentry vehicle capabilities to bypass allied missile defenses.[2][5]

The strategic instability introduced by the MIRV mechanism remains a central focus of arms control. Because a single incoming warhead can potentially destroy a silo containing a missile armed with ten warheads, MIRVs create a "use it or lose it" pressure during a crisis. The expiration of the New START treaty limits in 2026 will remove the current cap of 1,550 deployed strategic warheads, leaving the future deployment scale of post-boost vehicles entirely dependent on the next phase of bilateral negotiations.[4][6]
