Geomagnetic Deflection: Why High-Altitude Nuclear Detonations Generate Nanosecond E1 Pulses

When a nuclear weapon detonates in the vacuum of space, the blast does not level cities or shatter infrastructure with a kinetic shockwave. Instead, it unleashes a silent, invisible surge of electromagnetic energy that can instantly induce catastrophic voltages in unshielded civilian power grids across an entire continent.[1]

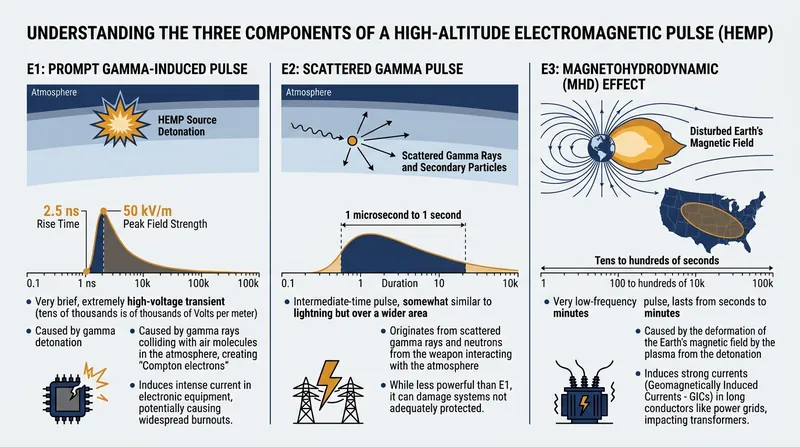

This phenomenon, known as a high-altitude electromagnetic pulse, is driven by a precise and unavoidable sequence of subatomic collisions in the upper atmosphere. The most destructive component of this pulse is the E1 phase, a transient electric field that peaks in just 2.5 nanoseconds and vanishes almost as quickly.[5]

Because the E1 pulse rises and falls so rapidly, it entirely bypasses the standard surge arresters designed to protect power lines from conventional lightning strikes. The resulting unmitigated overvoltage can cause immediate dielectric breakdown in step-down transformers, permanently disabling the critical equipment that delivers electricity to homes and businesses.[1]

The physics governing this nanosecond-scale destruction were first identified in 1963 by Conrad Longmire at Los Alamos National Laboratory. He demonstrated mathematically that the immense geographic footprint of the E1 pulse is not caused by the weapon itself, but by the interaction of its radiation with the Earth's own magnetic field.[3][4]

The Compton Scattering Mechanism

The generation of an E1 pulse begins the exact moment a nuclear device detonates at altitudes above 30 kilometers. The explosion releases a massive, instantaneous burst of high-energy gamma rays, which travel radially outward from the weapon's core through the vacuum of space at the speed of light.[3]

When these downward-streaming gamma rays strike the denser molecules of the upper atmosphere, they collide violently with the air. This collision, known as Compton scattering, strips electrons from the atmospheric atoms and ejects them downward toward the Earth's surface at relativistic speeds exceeding 90 percent of the speed of light.[2][3]

These ejected particles are known as Compton recoil electrons. As they accelerate rapidly away from the detonation point, they leave behind heavier, slower-moving positive ions, creating a massive and sudden separation of electrical charge in a layer of the atmosphere roughly 20 kilometers thick.[2][5]

In the absence of any external magnetic forces, this massive charge separation would simply produce a localized, vertical electrical current. However, because the electrons are moving rapidly through the Earth's magnetosphere, their downward trajectory is immediately and violently altered by the planet's ambient magnetic field.[3][5]

Geomagnetic Deflection and the E1 Pulse

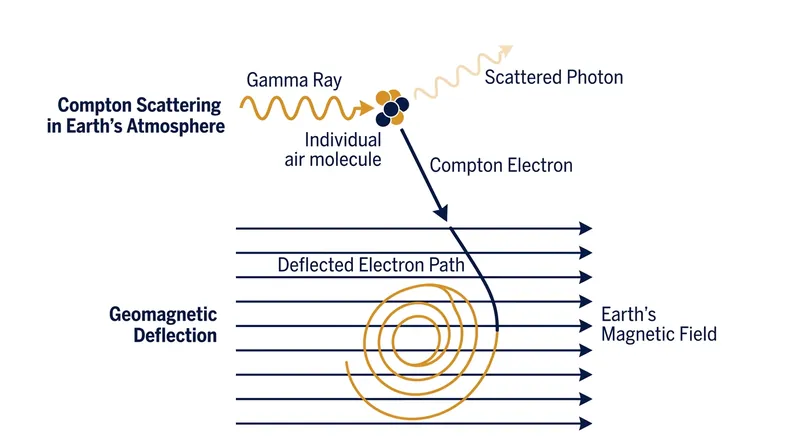

As the Compton recoil electrons plunge toward the Earth, they intersect the planet's geomagnetic field lines. The magnetic force acts perpendicularly to their motion, forcing the relativistic electrons to spiral tightly around the field lines rather than continuing on a straight downward path.[3][5]

This sudden, synchronized deflection of billions of relativistic electrons constitutes a massive transverse acceleration of electrical charge. According to Maxwell's equations, accelerating charges emit electromagnetic radiation, which in this specific case takes the form of an intense, highly coherent electromagnetic pulse directed toward the ground.[3][5]

Because the Earth's magnetic field dictates the specific direction of the deflection, the resulting E1 pulse is not perfectly symmetrical. Over the United States, the downward tilt of the geomagnetic field causes the maximum electromagnetic intensity to concentrate significantly south of the actual detonation point.[3]

The geographic footprint of this pulse is limited only by the line of sight from the detonation altitude to the Earth's horizon. A weapon detonated at an altitude of 400 kilometers can simultaneously blanket a region thousands of kilometers across with a nearly instantaneous electromagnetic shock.[3]

Atmospheric Saturation Limits

Despite the immense energy released by the nuclear weapon, the peak electric field of the E1 pulse does not scale infinitely with the weapon's yield. The atmosphere itself imposes a strict physical limit on the maximum voltage that can be generated during the event.[3][5]

As the Compton recoil electrons collide with additional air molecules during their descent, they create a cascading chain of secondary electron-ion pairs. These secondary particles move much more slowly than the primary recoil electrons, but they rapidly increase the electrical conductivity of the surrounding air.[2][5]

This newly conductive atmospheric layer acts effectively as a short circuit, generating a conduction current that flows in the exact opposite direction of the Compton current. The opposing flow effectively cancels out further electromagnetic emissions, capping the peak electric field regardless of additional gamma radiation.[2][3]

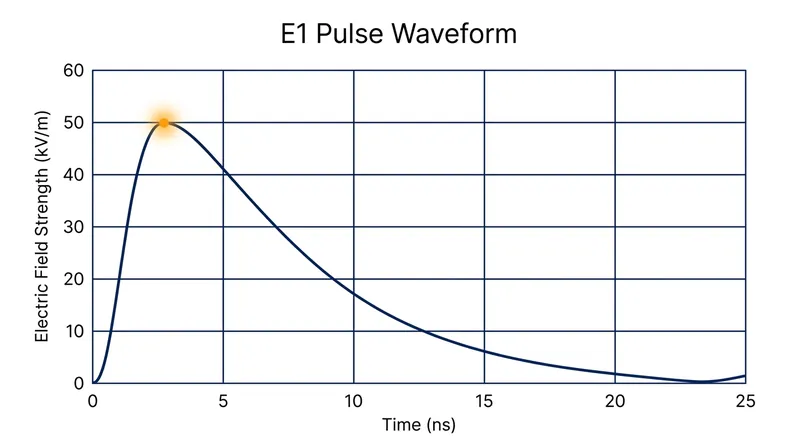

For a standard high-altitude detonation, this saturation effect limits the E1 pulse. According to the U.S. Department of Energy, the pulse is 'characterized by a double exponential waveform with rise time of 2.5 nanoseconds, pulse width at half maximum of 23 nsec and amplitude of 25 kV/m for existing threats or 50 kV/m for possible future considerations'.

Infrastructure Vulnerability at Nanosecond Scales

The sheer speed of the E1 pulse is what makes it so uniquely devastating to modern solid-state electronics. The pulse reaches its peak amplitude in just 2.5 nanoseconds and decays to half its maximum value within 23 nanoseconds, leaving virtually no time for defensive systems to react.[5]

By comparison, a typical lightning strike takes several microseconds to reach its peak—a thousand times slower than an E1 transient. Standard surge protectors and metal-oxide varistors require tens of nanoseconds to engage, meaning the E1 pulse has already inflicted its catastrophic damage before the safety hardware activates.[3][5]

When the 50 kV/m electric field sweeps across the Earth's surface, it couples instantly with any conductive material it encounters. Long, unshielded distribution lines act as massive antennas, instantly converting the ambient atmospheric electric field into massive, localized voltage spikes that travel along the grid.[1][5]

A standard 10-meter segment of exposed distribution wire can experience an induced transient of approximately 500 kilovolts. This sudden surge travels down the line until it encounters a component unable to withstand the extreme voltage, typically resulting in a catastrophic electrical arc or immediate dielectric breakdown.[1][6]

The Oak Ridge Transformer Simulations

The vulnerability of the civilian power grid to these specific transients is not purely theoretical. During the 1980s, researchers at Oak Ridge National Laboratories conducted extensive physical testing to determine exactly how standard utility equipment would respond to an E1 pulse of this magnitude.[1]

The Oak Ridge engineering team subjected 7.2-kilovolt, 25-kilovolt-ampere step-down transformers—the ubiquitous cylindrical devices mounted on utility poles across the country—to simulated fast-peak pulses explicitly designed to mimic the exact waveform of a high-altitude nuclear detonation.[1]

The results were definitive and highly concerning for grid operators. As the Electric Power Research Institute noted in its threat analysis, 'The 19 tests performed found that the systems experienced operational damage during fast-peak pulse simulations in 7.2-kV/25-kVA power distribution systems'.[1]

The extreme overvoltages easily punctured the internal insulation, causing pinhole damage and dielectric breakdown within the copper windings. Because approximately 78 percent of all electric power delivery to end-users passes through similar distribution lines, the failure of these transformers represents a critical, systemic vulnerability.[1]

Mitigation and Hardening Strategies

Protecting civilian infrastructure against a 50 kV/m nanosecond pulse requires highly specialized engineering. The Department of Energy recommends that utility operators focus on practical hardening measures at key facilities rather than attempting to model the complex nuclear physics of the detonation themselves.

Effective mitigation relies heavily on fast-acting transient voltage suppression diodes, which can clamp the voltage spike within picoseconds. Additionally, enclosing sensitive control systems and supervisory control and data acquisition networks within grounded Faraday cages can block the radiated electric field entirely.[1][3]

However, retrofitting the entire civilian power grid with military-grade electromagnetic shielding remains economically prohibitive for most utility companies. Current resilience efforts focus instead on protecting the most critical generation facilities and ensuring that replacement transformers are stockpiled safely outside the potential blast radius.[1]

Ultimately, the E1 pulse represents a unique and devastating intersection of nuclear physics and geophysics. By weaponizing the Earth's own magnetic field, a high-altitude detonation transforms a localized burst of gamma radiation into a continent-wide electrical crisis that respects no borders.[3][5]

The Solid-State Vulnerability

The increasing reliance on solid-state electronics in modern infrastructure has only amplified this vulnerability over the last several decades. Unlike the vacuum tubes of the mid-20th century, which could often survive significant voltage spikes, modern microprocessors operate on mere fractions of a volt and are instantly destroyed by E1 transients.[3]

As nations continue to modernize their electrical grids with smart meters and automated routing systems, the surface area exposed to the Compton effect grows exponentially. Understanding the precise mechanism of geomagnetic deflection remains the first necessary step in defending the grid against it.[1][5]

The cascading failure of these interconnected systems would severely complicate any recovery effort following an event. If the automated routing systems and the physical transformers fail simultaneously, grid operators would be forced to manually inspect and replace millions of components across a continent-sized blackout zone.[1][6]

This reality underscores why the E1 pulse remains one of the most studied phenomena in national security physics. The threat is not defined by the explosive yield of the weapon, but by the inescapable mechanics of the Earth's magnetic field turning the atmosphere itself into a massive electromagnetic generator.[3]
