Adiabatic Shear Banding Sheds Deformed Shoulders on Impact, Allowing Depleted Uranium Penetrators to Self-Sharpen Through Heavy Armor

When a modern kinetic energy penetrator strikes a main battle tank at five times the speed of sound, the extreme pressure typically forces the metal dart to flatten against the armor. Depleted uranium munitions bypass this physical limitation entirely. Instead of blunting, the uranium sheds its deformed outer layers upon impact, maintaining a razor-sharp point.

This metallurgical phenomenon fundamentally alters the mechanics of anti-tank warfare, granting depleted uranium a distinct advantage over other heavy metals. The capability relies on a localized failure mechanism known as adiabatic shear banding. By continuously discarding the blunted edges of the projectile, the penetrator focuses its kinetic energy onto a microscopic surface area.[5]

The resulting self-sharpening behavior allows depleted uranium darts to defeat modern armor arrays that would stop conventional rounds. While the material is often associated with its mild radioactivity, its military utility stems entirely from its mechanical inability to dissipate heat during a hypervelocity collision.

The limits of tungsten and bulk deformation

To defeat heavy armor without explosive warheads, modern tanks fire Armor-Piercing Fin-Stabilized Discarding Sabot rounds. These munitions act as giant, hyper-dense darts, relying purely on kinetic energy to punch through a target. The effectiveness of the dart depends on its mass, its velocity, and its ability to maintain a narrow profile.[4]

For decades, tungsten heavy alloys served as the premier material for these penetrators. Tungsten boasts an exceptional density of 19.3 grams per cubic centimeter, making it nearly three times heavier than steel. That immense mass allows a thin tungsten rod to carry a devastating amount of kinetic energy across the battlefield.[4]

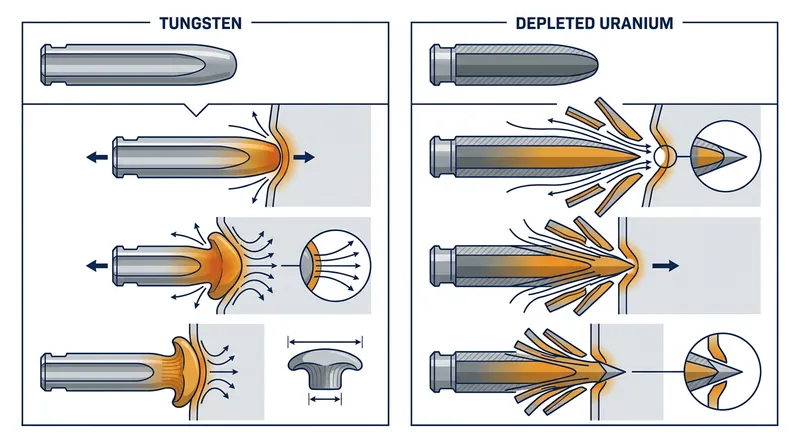

However, tungsten suffers from a critical mechanical flaw during hypervelocity impacts. When the tip of a tungsten penetrator strikes heavy armor, the immense pressure causes the metal to undergo bulk deformation. The front of the dart compresses and widens, creating a flattened profile in a process engineers call "mushrooming."[2]

As the tungsten mushrooms, the surface area of the penetrator expands significantly. This wider profile forces the dart to displace a larger volume of armor, bleeding off its kinetic energy much faster. The penetrator essentially digs a wider, shallower hole, limiting its overall penetration depth.[2]

Adiabatic shear and the self-sharpening effect

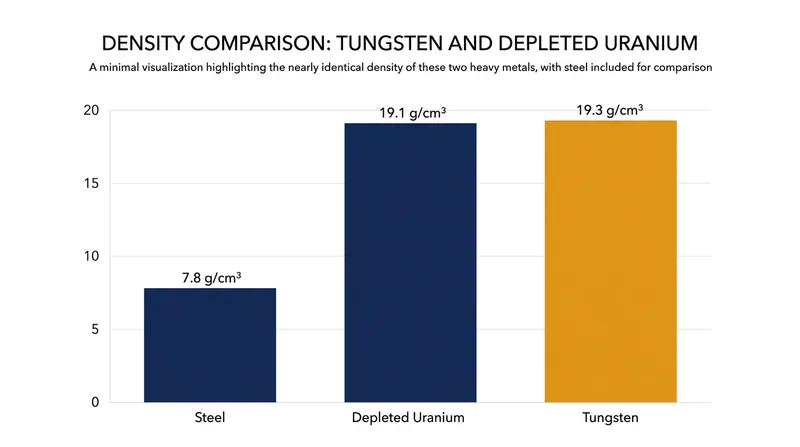

Depleted uranium offers a density of 19.1 grams per cubic centimeter, marginally less than tungsten. Yet, when fired at identical velocities, a depleted uranium penetrator consistently out-penetrates a tungsten round of the same dimensions. The secret lies in how the two metals handle the extreme thermal stress of a Mach 5 collision.[4]

When a depleted uranium dart strikes armor, the friction generates intense, localized heat at the point of impact. Unlike tungsten, uranium cannot conduct this heat away from the tip fast enough. The thermal energy becomes trapped in narrow zones, a condition physicists describe as adiabatic.[5]

This trapped heat causes the uranium to soften dramatically along microscopic fault lines known as shear bands. Thermal softening outpaces the metal's natural strain hardening, creating narrow zones of extreme weakness. Micro-cracks rapidly nucleate within these thin bands, linking together to initiate a localized structural failure.[5]

As the tip of the penetrator begins to mushroom against the armor plate, the weakened material along these shear bands simply gives way. The deformed outer edges, or "shoulders," of the mushroom break off and shear away from the main rod. The material fails in successive blocks, preventing the dart from widening.[2]

By continuously shedding these deformed shoulders, the depleted uranium penetrator never develops a blunt, flattened tip. Instead, the localized failure constantly exposes a fresh, chiseled point at the center of the dart. The penetrator effectively sharpens itself as it grinds deeper into the target.[1]

Quantifying the penetration advantage

This self-sharpening mechanism ensures that the penetrator maintains a minimal surface area throughout the entire penetration event. Because it bores a narrower channel than a mushrooming tungsten round, the uranium dart expends far less energy displacing the surrounding armor. The focused kinetic energy drives the remaining rod significantly deeper.[1]

The performance delta between the two metals is substantial and well-documented by military metallurgists. According to analyses by the Department of Energy and ballistic armor specialists, the self-sharpening effect gives depleted uranium a roughly 10 percent penetration advantage over tungsten heavy alloys. In tank warfare, that margin often dictates survival.[1][6]

Researchers at the Los Alamos National Laboratory have extensively studied this interaction. By firing various penetrators into rolled homogeneous armor, scientists confirmed that tungsten relies on bulk deformation, while uranium alloys fail via adiabatic shear. The resulting penetration channels clearly illustrate the difference in mechanical behavior.[2]

The tungsten channels are distinctly wider, reflecting the expanded mushroom head of the penetrator. In contrast, the depleted uranium channels remain tight and narrow, matching the chiseled profile of the self-sharpening dart. The uranium penetrator sacrifices a portion of its mass to maintain the aerodynamic efficiency of its strike.[2]

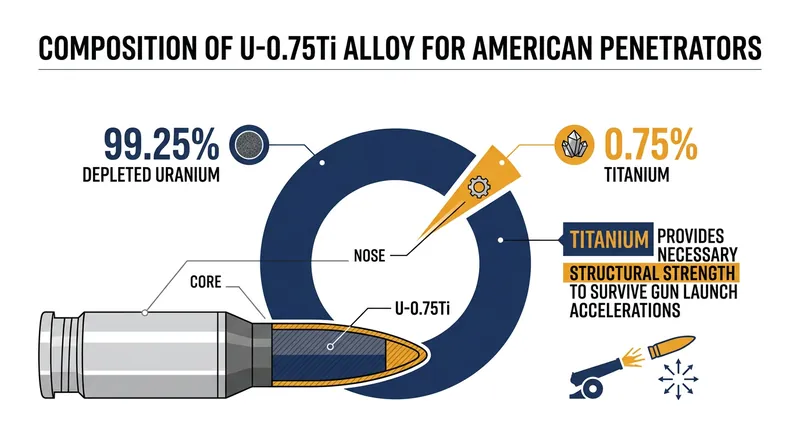

Pure depleted uranium, however, is generally too soft to survive the violent acceleration of a tank gun. To withstand the launch forces without shattering, the military alloys the uranium with small amounts of other metals. The standard American penetrator material, known as U-0.75Ti, incorporates 0.75 percent titanium.[4]

Pyrophoricity and behind-armor lethality

This specific alloy strikes a precise balance between structural strength and shear susceptibility. The titanium hardens the rod enough to pierce the initial armor face, while still allowing the adiabatic shear bands to form under extreme pressure. The resulting martensitic microstructure ensures the material flakes away in predictable blocks.[2]

The lethality of a depleted uranium round extends far beyond its ability to pierce thick steel. Once the self-sharpening penetrator breaches the crew compartment, the physical properties of the sheared uranium fragments trigger a devastating secondary effect. Uranium is highly pyrophoric, meaning it spontaneously ignites when exposed to oxygen at high temperatures.[3][4]

As the penetrator sheds its shoulders during the armor breach, the immense friction superheats the discarded uranium flakes. When these burning fragments burst through the interior wall of the tank and hit the oxygen-rich cabin, they erupt into a storm of white-hot incendiary dust.[3][4]

This pyrophoric reaction rapidly torches the interior of the targeted vehicle. The shower of burning uranium typically ignites the tank's hydraulic fluids, fuel lines, and onboard ammunition reserves. Military planners refer to this catastrophic internal destruction as "behind-armor lethality," a metric where uranium vastly outperforms inert tungsten.[3]

Strategic stockpiles and tactical deployment

A tungsten penetrator that breaches a tank relies entirely on the kinetic spalling of the armor itself to damage the interior. If the tungsten dart does not directly strike a critical component or a crew member, the vehicle might theoretically survive the hit. Depleted uranium guarantees a fiery internal environment regardless of the exact impact point.[3]

The adoption of depleted uranium munitions is also driven by industrial economics. Depleted uranium is a byproduct of the nuclear enrichment process, leaving nations with extensive nuclear programs holding massive stockpiles of the heavy metal. For the United States and Russia, utilizing this existing waste material is highly cost-effective.[4]

Machining weapons-grade tungsten requires importing the raw material and executing expensive, high-temperature manufacturing processes. Conversely, governments provide depleted uranium to defense contractors at minimal cost. This economic reality, combined with the 10 percent penetration advantage, cemented uranium as the standard for American anti-tank forces.[6]

The U.S. military deploys these penetrators across multiple platforms. The M1 Abrams tank fires 120mm depleted uranium rounds, specifically the M829 series, which weigh roughly 10 kilograms. The A-10 Warthog attack aircraft utilizes 30mm uranium ammunition in its GAU-8/A rotary cannon, firing up to 3,900 rounds per minute.[3]

The Bradley Fighting Vehicle also employs 25mm uranium darts, designated the M919, to defeat light armor. Despite its tactical superiority, the use of depleted uranium remains highly controversial due to its post-impact environmental footprint. When the pyrophoric fragments burn, they produce a fine, toxic uranium oxide dust that settles over the battlefield.[3][4]

While the radiological danger of depleted uranium is minimal compared to enriched isotopes, its chemical toxicity mirrors that of lead. The lingering contamination has prompted several allied nations to phase out uranium munitions entirely, opting to accept the slight performance penalty of tungsten to avoid the environmental consequences.[4]

Nevertheless, the physics of adiabatic shear banding ensure that depleted uranium remains the ultimate kinetic energy penetrator. Until materials science can engineer a tungsten alloy that reliably sheds its deformed shoulders under pressure, the self-sharpening uranium dart will continue to define the absolute limit of anti-armor lethality.[1][5]
