The Hardware Isolation Boundary: How a Dedicated Coprocessor Secures Biometric Data Against OS-Level Compromise

If the main processor of a smartphone can read the raw fingerprint or facial map used to unlock it, the device is fundamentally compromised. The entire security model of modern mobile computing relies on a strict physical boundary: the operating system must never see the user's biometric data. It can only ask a separate, isolated system if the person holding the phone is the owner, and wait for a simple affirmative or negative response.[6]

That isolated system is the Secure Enclave. According to Apple's engineering documentation, "The Secure Enclave is a dedicated secure subsystem integrated into Apple system on chips (SoCs)" [1]. It is effectively a computer within a computer, complete with its own microkernel, isolated memory, and a dedicated boot ROM that cannot be altered after the silicon leaves the factory.[1]

Marketing materials frequently conflate this hardware with absolute device security, suggesting a phone with a Secure Enclave is unhackable. In reality, the subsystem has a highly specific, narrow job. It does not protect a user's text messages, photos, or browsing history if the main operating system is compromised by malware. Its sole purpose is to protect cryptographic keys and the mathematical representations of biometric data.[5]

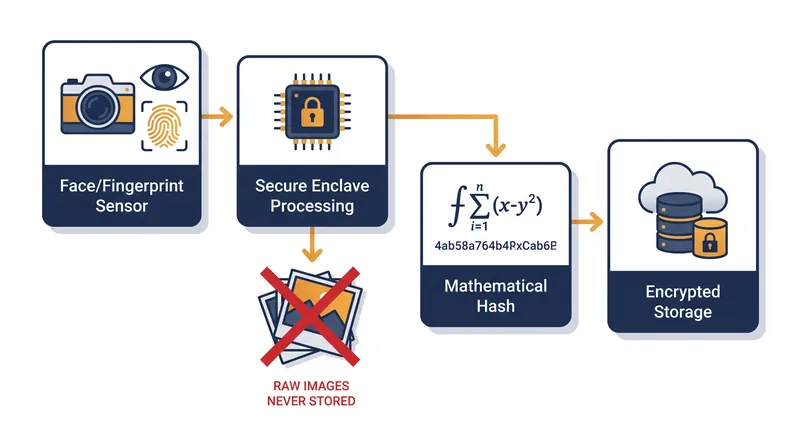

When a user registers a fingerprint or a face, the device does not store a photograph. Instead, sensors capture the physical data—such as the 30,000 infrared dots projected by Face ID—and send it directly to the Secure Enclave [6]. The subsystem converts this physical map into a mathematical hash. The original image is immediately discarded, and the hash is encrypted and stored in dedicated flash memory.[6]

The isolation is physical, not just logical. As Hexnode's 2026 technical breakdown explains, "The Secure Enclave operates independently of the main processor" [5]. If a sophisticated attacker gains root access to the smartphone's main processor, they can read the system memory, but they cannot read the Secure Enclave's memory because the two processors do not share a data bus for that information.[5]

Communication between the main operating system and the Secure Enclave happens through a tightly controlled "mailbox" mechanism. The main OS drops an encrypted message into a shared memory buffer—for example, a request to decrypt an email database—and rings a virtual doorbell. The Secure Enclave retrieves the message, verifies the user's biometric hash, performs the decryption using its hidden keys, and drops the result back into the mailbox.[1]

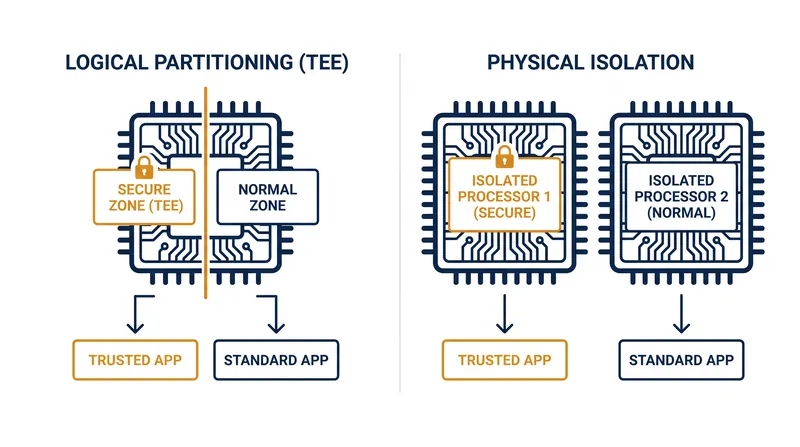

This architecture differs significantly from other industry approaches to trusted execution. As the Haven Blog's architectural comparison notes, "SGX and TrustZone are examples of Trusted Execution Environments (TEEs)" [3]. ARM's TrustZone, widely used in Android devices, typically partitions a single processor into "secure" and "non-secure" worlds.[3]

While TrustZone provides robust logical separation, it shares the same physical silicon cores as the main operating system. If a hardware-level side-channel vulnerability is discovered in the processor's speculative execution engine, the logical boundary can sometimes be breached. A physically distinct coprocessor mitigates this specific class of hardware vulnerabilities by not sharing the execution pipeline at all.[3][7]

The foundation of this system is the Hardware Root of Trust. In a 2022 technical analysis, wolfSSL defined this concept: "A Hardware Root of Trust (RoT) is the foundation for secure operations in a computing system" [4]. For the Secure Enclave, this root is established during manufacturing.[4]

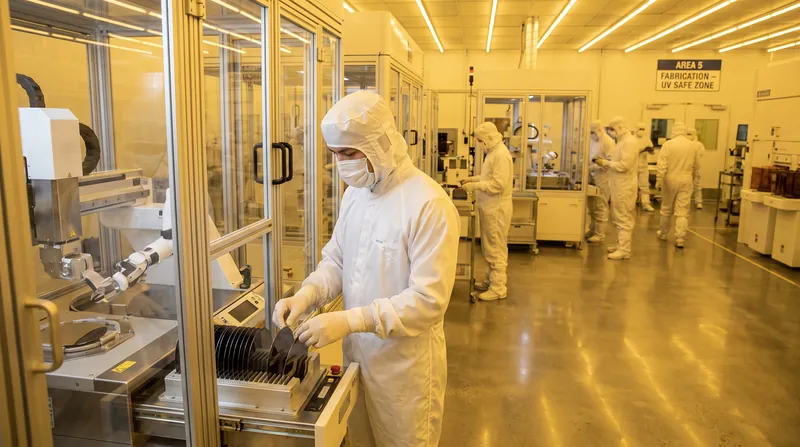

At the fabrication plant, a Unique ID (UID) is burned directly into the silicon of the Secure Enclave. Apple does not record this UID, and it cannot be read by any software, not even by the Secure Enclave's own firmware. The UID is only accessible to a dedicated 256-bit AES cryptographic engine physically wired to the enclave.[1]

When the device boots, the Secure Enclave uses this UID, combined with the user's passcode, to generate the actual encryption keys that secure the device's file system. Because the UID is physically tied to that specific chip, the encrypted data on the phone's storage drive cannot be extracted and decrypted on another device, even if the attacker has the user's passcode.[2]

To prevent brute-force attacks on the passcode, the Secure Enclave enforces cryptographic delays. After a set number of incorrect attempts—typically 10—the enclave can be configured to permanently destroy the cryptographic keys, instantly rendering all data on the device permanently inaccessible. This anti-replay mechanism is enforced by the hardware, meaning a compromised OS cannot simply bypass the counter.[1]

The subsystem is not entirely immune to physical exploitation. Security researchers have previously identified vulnerabilities in the Secure Enclave's boot ROM, such as the exploits discovered in older silicon. Because the boot ROM is read-only, these vulnerabilities cannot be patched with a software update. However, exploiting them requires physical possession of the device and a tethered connection, limiting their use in remote cyberattacks.[1][2]

Since its introduction in 2013 with the A7 chip, the architecture has evolved to include secure storage components that resist physical tampering, such as power analysis and electromagnetic fault injection. Modern iterations actively monitor their own power consumption and clock speeds, shutting down if they detect the voltage anomalies typically used by forensic extraction tools.[1]

The next verifiable checkpoint for hardware isolation architectures will be the integration of quantum-resistant cryptographic algorithms into the boot ROM. As the National Institute of Standards and Technology finalizes post-quantum standards in 2026, silicon manufacturers must redesign the physical cryptographic engines within these enclaves to handle significantly larger key sizes without introducing unacceptable latency to the biometric unlock process.[7]
