How the Sliding Window and Cumulative Acknowledgements Guarantee Reliable Data Delivery in TCP

The outcome of a reliable, high-speed internet connection is actually determined at a highly specific moment: when a receiving computer calculates its available buffer space and sends a single sequence number back to the sender. This step, known as the advertised window, dictates whether a gigabit fiber link actually delivers data at its theoretical maximum or crawls like a legacy dial-up modem. Without this calculation, the physical speed of the network is irrelevant.[2]

Telecommunications vendors frequently market "AI-optimized routing" or "zero-latency" hardware as the secret to fast downloads. But the actual capability governing network speed shipped decades ago in the Transmission Control Protocol (TCP). The underlying mechanism does not rely on artificial intelligence; it relies on a mathematical abstraction called the sliding window, which operates at Layer 4 of the Open Systems Interconnection (OSI) model.

The core problem TCP solves is the speed-of-light delay inherent in any physical network. In a primitive "stop-and-wait" protocol, a sender transmits exactly 1 packet of data and then halts, waiting for the receiver to confirm its arrival before sending the next. As a July 2025 technical review by GeeksforGeeks notes, this approach is simple but suffers from "low efficiency compared to sliding window protocols as it requires a lot of time to wait for an acknowledgment."[5]

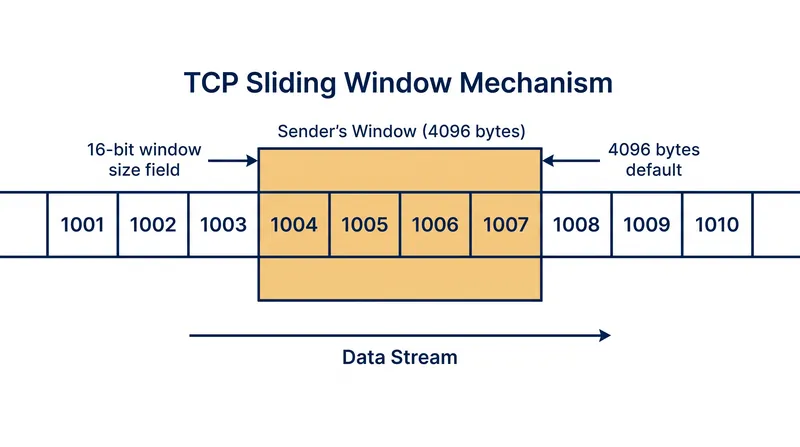

To fix this bottleneck, TCP introduced the sliding window. The window is essentially a logical boundary representing the total number of packets that can be transmitted without waiting for a confirmation. Instead of pausing after every transmission, the sender is authorized to push a continuous stream of data up to the limit of the window size.[2][5]

The size of this window is not fixed; it is dynamically negotiated between the 2 communicating devices. The TCP header utilizes a dedicated 16-bit field to report the receiver's available buffer size back to the sender. If the receiver has plenty of memory, it advertises a large window, allowing the sender to transmit megabytes of data in a single burst.[2]

As the sender transmits data, the logical window "slides" forward over the sequence of bytes. However, the window can only advance when the receiver confirms that the data has successfully arrived. This is where the second half of the mechanism—cumulative acknowledgement—becomes critical to the protocol's efficiency.[2][3]

If a receiver successfully processes 3 consecutive packets, it does not waste bandwidth sending 3 separate confirmation messages. Instead, it sends a single cumulative acknowledgement (ACK) for the highest contiguous byte received.[3][4]

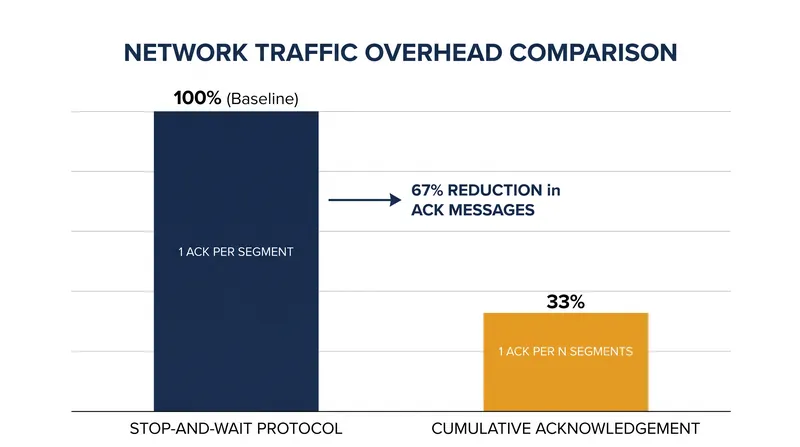

By sending an ACK for packet 3, the receiver implicitly confirms the correct delivery of packets 1 and 2. According to network documentation from TutorialsPoint, replacing individual confirmations with cumulative ACKs "reduces network traffic by 67%" in a standard three-packet scenario.[3]

TechTarget explains that this combination "controls and optimizes packet flow between a sender and receiver, while ensuring a balanced approach to packet delivery." The sender can keep its transmission pipeline full, effectively masking the network's round-trip latency.

However, the cumulative mechanism faces a significant challenge when a network drops a packet. If a sender transmits packets 1 through 5, but packet 3 is lost in transit, the receiver cannot acknowledge packets 4 or 5. It can only send a cumulative ACK for packet 2, because that is the last contiguous data it received.[3][4]

When the sender receives duplicate ACKs for packet 2, it realizes that a segment was lost. In early TCP implementations, the sender would drastically reduce its window size and retransmit everything from packet 3 onward, even though packets 4 and 5 had actually arrived safely.[4]

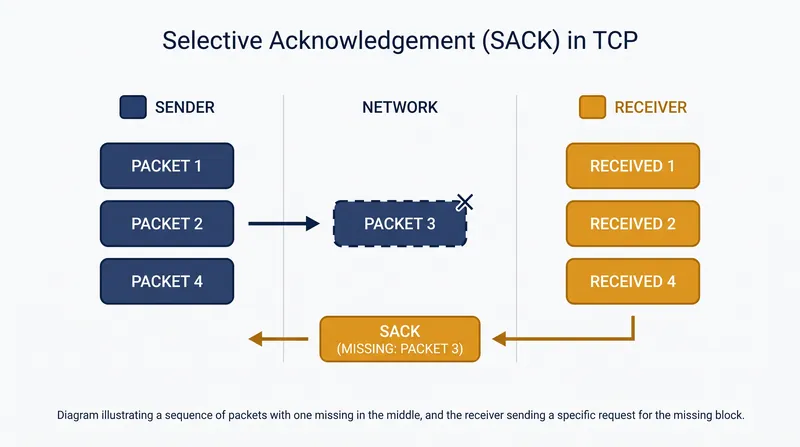

To solve this inefficiency, network engineers introduced an extension known as Selective Acknowledgment (SACK), formalized in RFC 2018. SACK allows the receiver to append additional information to its cumulative ACK, effectively saying, "I have everything up to packet 2, and I also have packets 4 and 5."[1]

This selective reporting prevents the sender from wasting valuable bandwidth on redundant retransmissions. It only resends the specific 1 packet that was lost, allowing the sliding window to immediately advance once the gap is filled.[1]

The sliding window also serves as a critical defense mechanism against network congestion. If the receiving application is slow to process incoming data, its internal buffer begins to fill up. In response, the receiver advertises a progressively smaller 16-bit window size in its outgoing ACKs.[2]

If the buffer reaches maximum capacity, the receiver advertises a window size of exactly 0. This "zero window" acts as a hard stop, forcing the sender to halt all transmissions until the receiver processes the backlog and advertises a non-zero window again.[2]

Ultimately, the sliding window and cumulative acknowledgement mechanisms separate the act of transmission from the act of confirmation. By decoupling these two processes, TCP ensures that data delivery is both completely reliable and highly efficient, forming the invisible foundation of modern digital infrastructure.[2]
